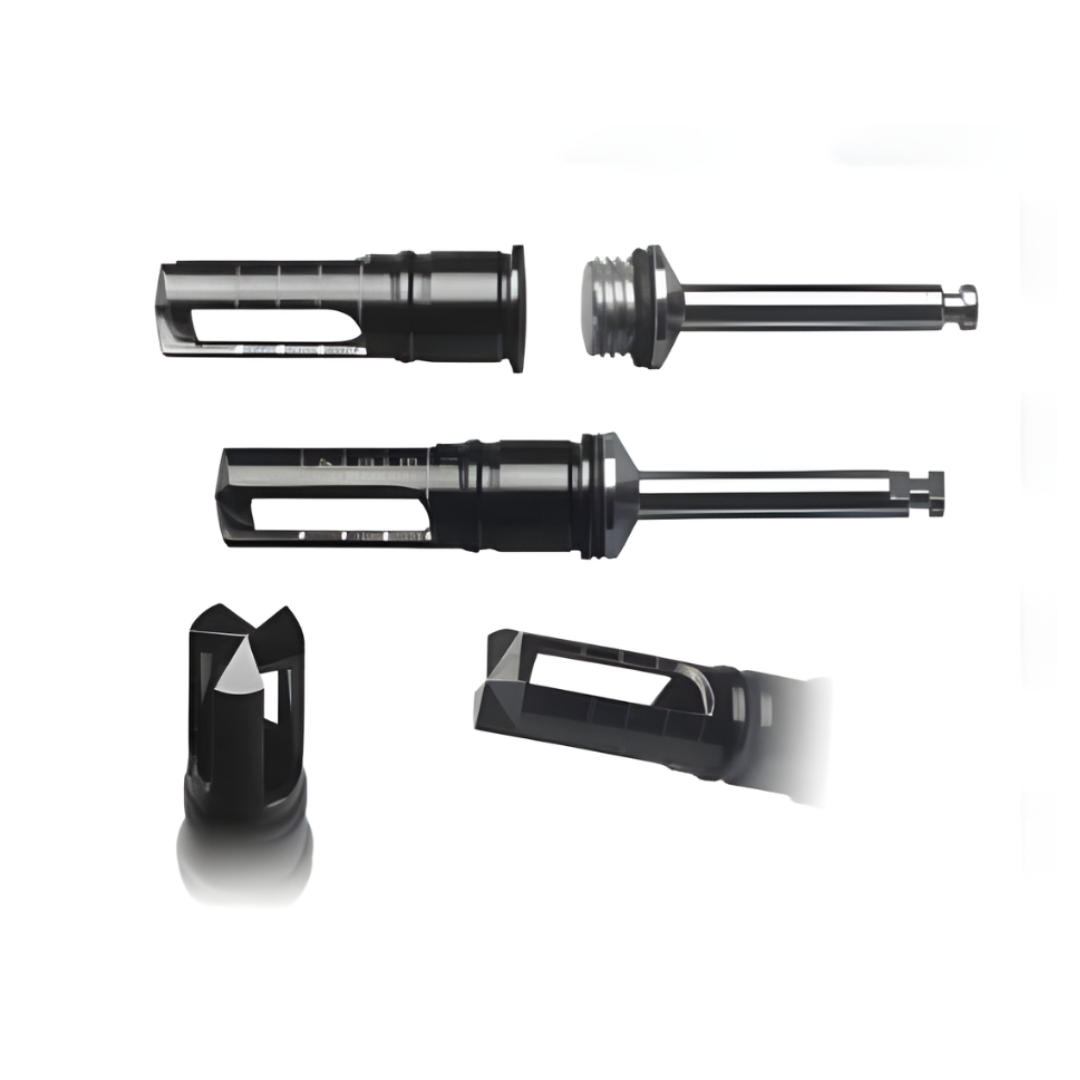

Autogenous Bone chip collector Drill
2.5mm

Brand : Smart Dental Innovations

0.0
0 Reviews

A surgical drill designed for dental implant procedures that collects autogenous bone chips during osteotomy — enabling harvest of patients’ own bone for grafting or filling small defects, improving implant stability.

Delivery Details
location pin
Available Variants
Product Highlights
  • How to use: Attach the collector to the surgical handpiece as per manufacturer instructions. During osteotomy drilling, the device collects bone chips which can be retrieved and used for grafting.
  • Key benefits: Harvests autogenous bone efficiently during implant site preparation, reduces need for secondary donor sites, aids in filling small defects and enhances primary implant stability.
  • Material: Medical-grade stainless steel body with precision-machined internal chamber and silicone sealing components for secure collection and durability.
  • Sterilization: Autoclavable at standard cycle (121–134°C) after disassembly and cleaning. Follow facility sterilization protocols to ensure device sterility before reuse.
  • Compatibility: Compatible with most standard dental surgical handpieces and implant drills; confirm hub fittings prior to use. Adapter kits available for specific handpiece interfaces.
  • Package contents: 1 x Bone chip collector drill assembly, 1 x sealing cap, 1 x instruction leaflet, and 1 x protective case.
  • Maintenance & care: After use, disassemble, rinse to remove bone residue, perform ultrasonic cleaning if available, and inspect seals before sterilization. Replace worn seals as recommended.
  • Indications: Intended for collection of autogenous bone particles during dental implant site preparation and minor bone defect grafting procedures.
A surgical drill designed for dental implant procedures that collects autogenous bone chips during osteotomy — enabling harvest of patients’ own bone for grafting or filling small defects, improving implant stability.

Bone Collection Function:
Collects autogenous bone during drilling procedures.

Material Quality:
Manufactured from ultra-high, anti-rust, wear-resistant stainless steel with super-high hardness for long-lasting performance.

Corrosion Resistance:
Designed to withstand frequent sterilization without degradation.

Available Sizes:

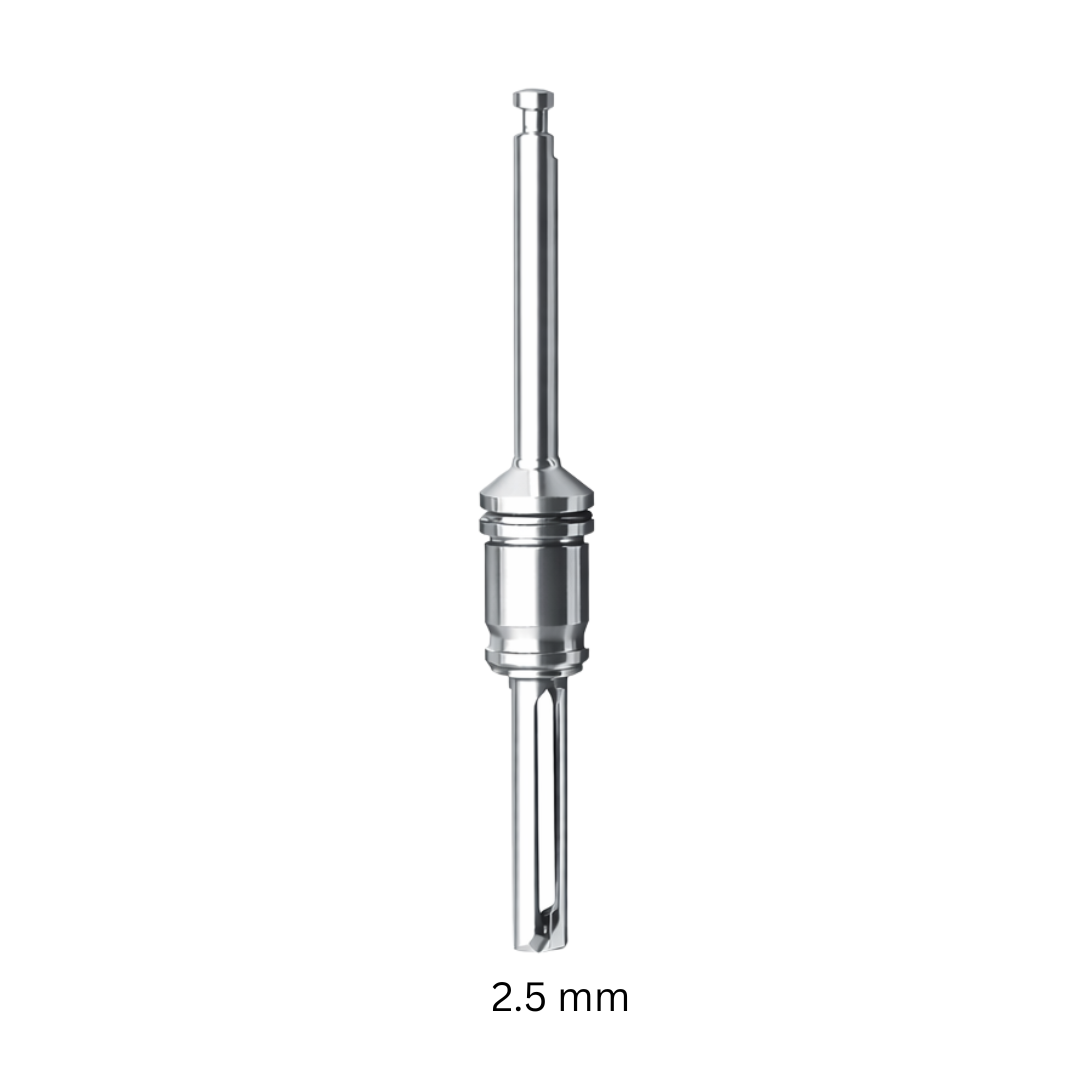

  • 2.5 mm

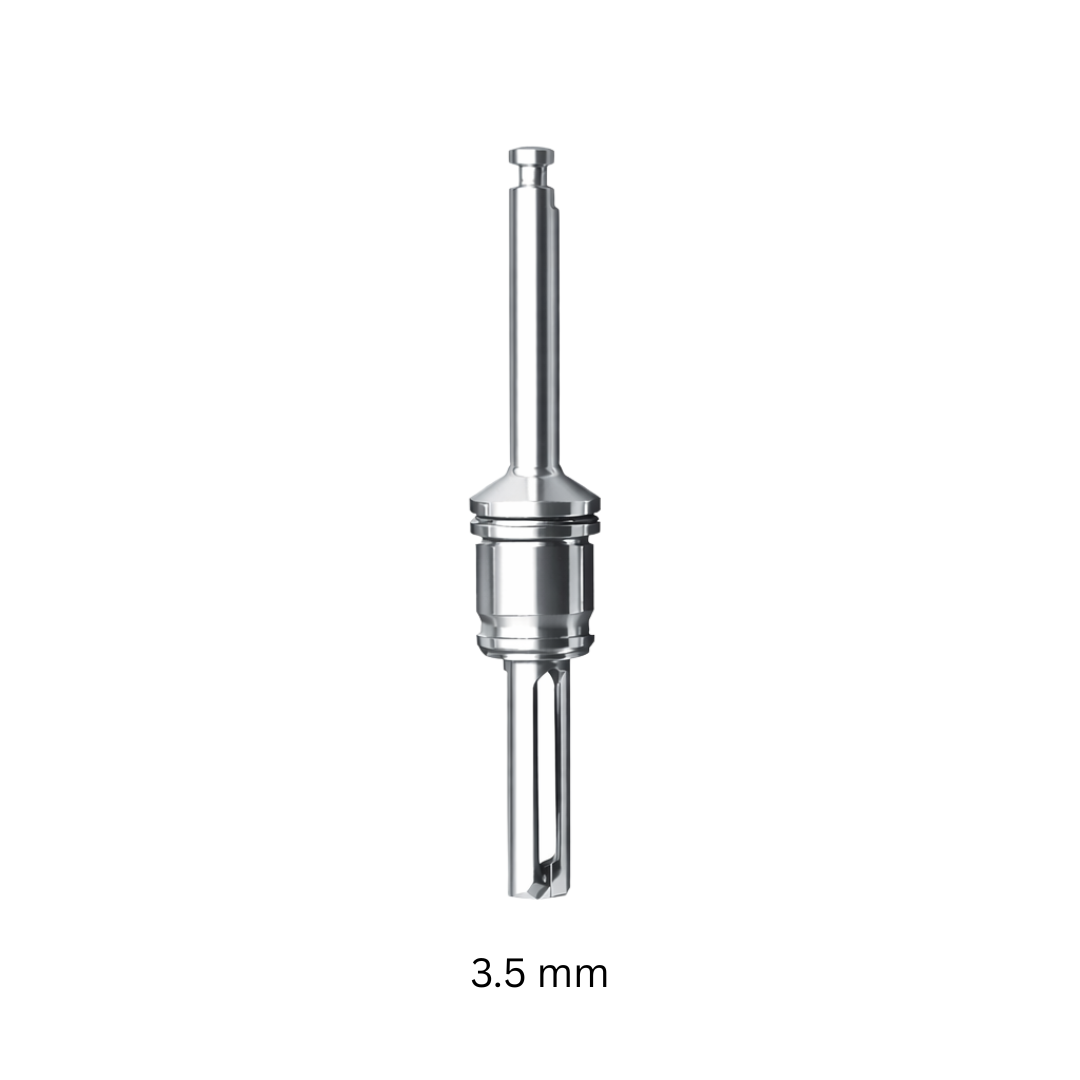

  • 3.0 mm

  • 3.5 mm

  • 4.0 mm

  • 5.0 mm

  • Select the Appropriate Size:
    Choose the required drill diameter (2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 5.0 mm) based on the implant site and clinical requirement.

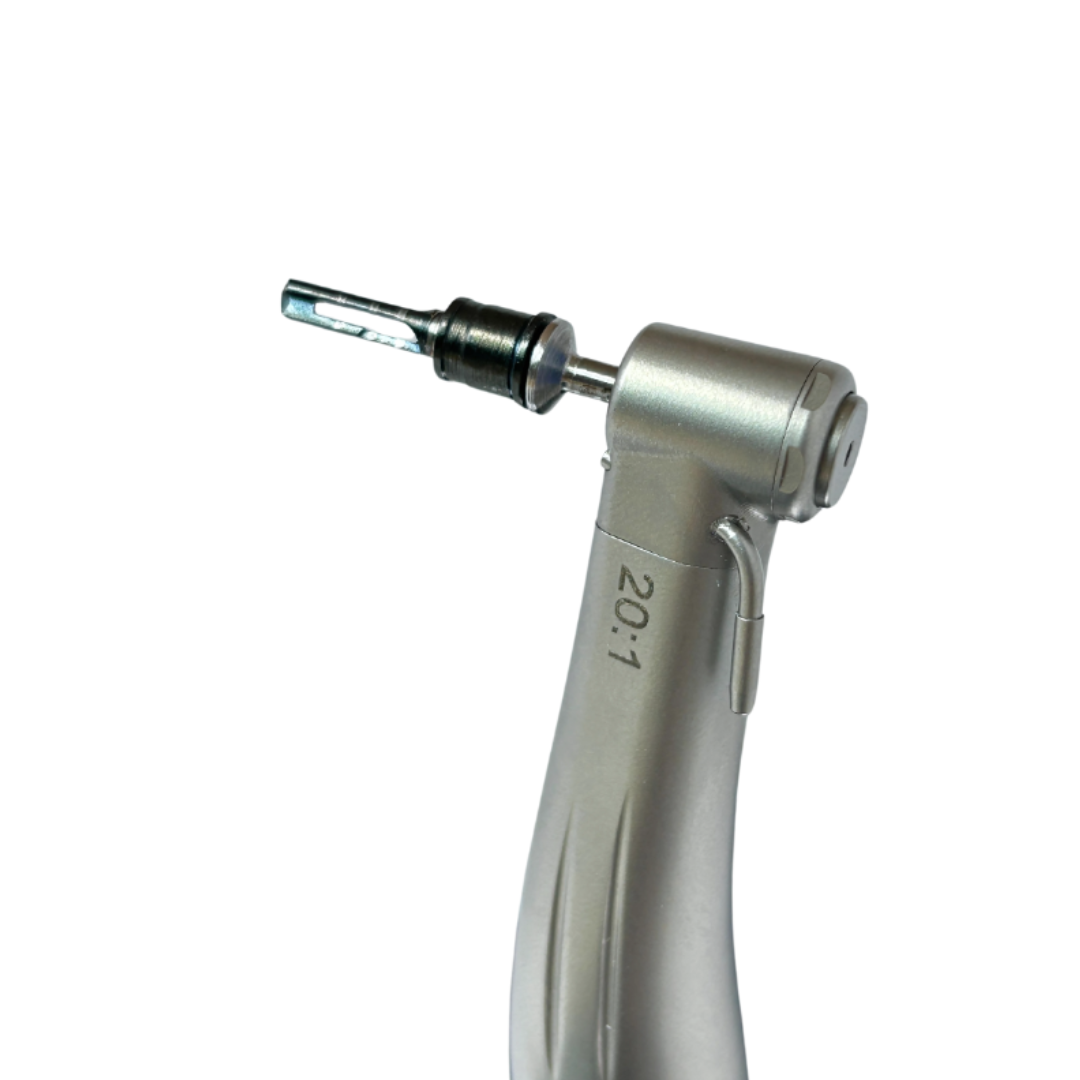

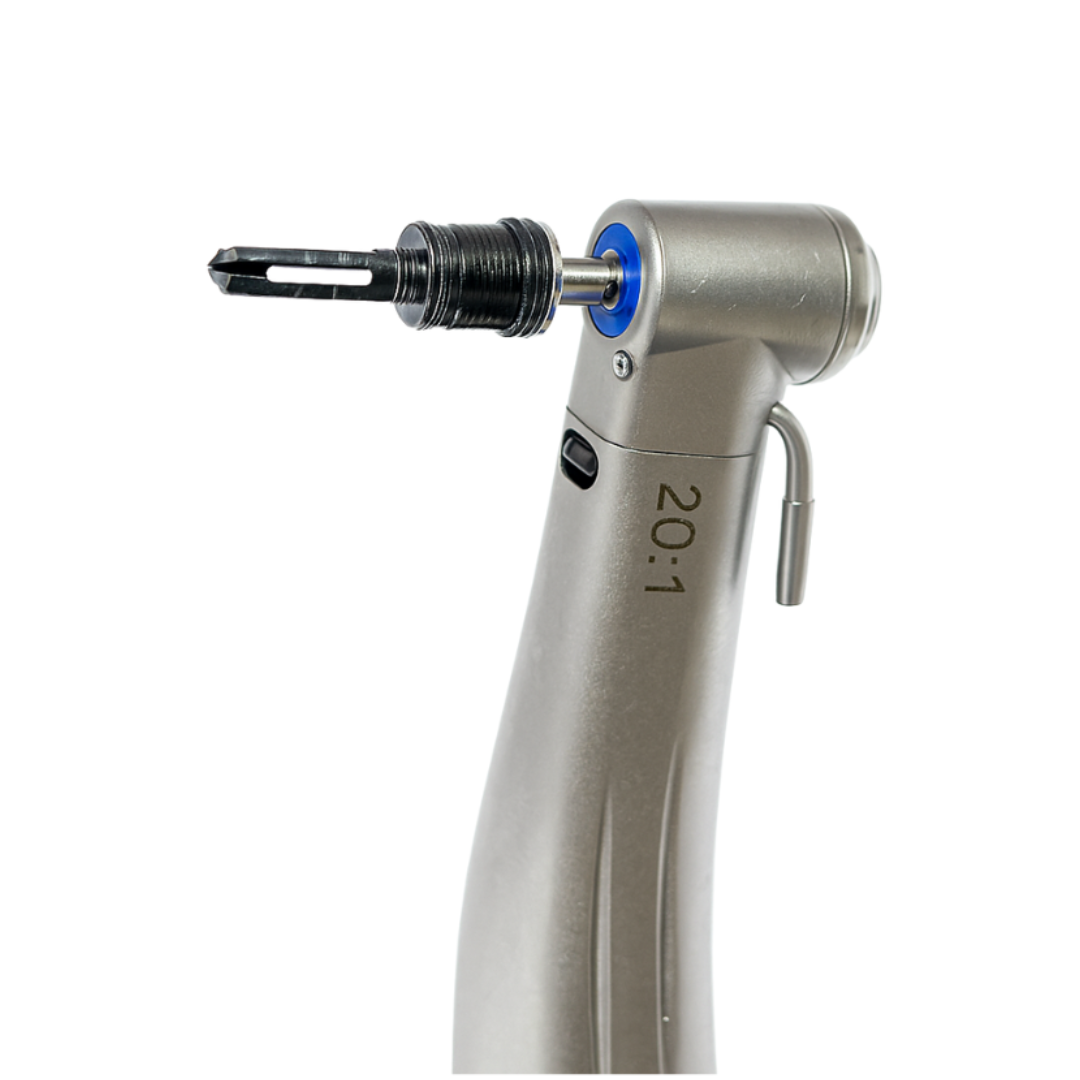

  • Attach to Handpiece:
    Securely connect the Auto Bone Collector Drill to the surgical contra-angle or implant handpiece.

  • Irrigation Setup:
    Ensure external saline irrigation is properly connected to prevent overheating and to maintain bone viability during drilling.

  • Begin Drilling:

    • Operate at the recommended RPM for implant osteotomy (typically 250–350 RPM, depending on bone density).

    • Apply steady, controlled pressure and follow standard osteotomy protocols.

  • Bone Collection:
    As drilling progresses, autogenous bone particles are automatically collected in the internal chamber of the drill.

  • Stop and Retrieve Bone:

    • Remove the drill from the site after drilling.

    • Carefully unscrew the collection chamber.

    • Use a sterile instrument to retrieve and transfer the collected bone graft material.

  • Reuse or Continue Drilling:
    If additional bone is required, reassemble the drill and repeat the procedure.

    • No
    Smart Dental Innovation Benefits
    FreeShipping*
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is an autogenous bone chip collector drill?

    Answer: The autogenous bone chip collector drill is a precision-engineered dental surgical instrument designed to collect bone particles during implant site preparation. these collected bone chips can then be reused for bone grafting or filling defects around the implant, improving procedural outcomes.

    question
    How does the bone chip collector drill work?

    Answer: The drill features an internal chamber with slots that trap bone particles generated during osteotomy drilling. as the drill rotates and cuts, these bone chips are collected inside the chamber for retrieval post-procedure.

    Autogenous Bone chip collector Drill
    2.5mm

    Brand : Smart Dental Innovations

    0.0
    0 Reviews

    A surgical drill designed for dental implant procedures that collects autogenous bone chips during osteotomy — enabling harvest of patients’ own bone for grafting or filling small defects, improving implant stability.

    Delivery Details
    location pin
    Available Variants
    Product Highlights
    • How to use: Attach the collector to the surgical handpiece as per manufacturer instructions. During osteotomy drilling, the device collects bone chips which can be retrieved and used for grafting.
    • Key benefits: Harvests autogenous bone efficiently during implant site preparation, reduces need for secondary donor sites, aids in filling small defects and enhances primary implant stability.
    • Material: Medical-grade stainless steel body with precision-machined internal chamber and silicone sealing components for secure collection and durability.
    • Sterilization: Autoclavable at standard cycle (121–134°C) after disassembly and cleaning. Follow facility sterilization protocols to ensure device sterility before reuse.
    • Compatibility: Compatible with most standard dental surgical handpieces and implant drills; confirm hub fittings prior to use. Adapter kits available for specific handpiece interfaces.
    • Package contents: 1 x Bone chip collector drill assembly, 1 x sealing cap, 1 x instruction leaflet, and 1 x protective case.
    • Maintenance & care: After use, disassemble, rinse to remove bone residue, perform ultrasonic cleaning if available, and inspect seals before sterilization. Replace worn seals as recommended.
    • Indications: Intended for collection of autogenous bone particles during dental implant site preparation and minor bone defect grafting procedures.
    A surgical drill designed for dental implant procedures that collects autogenous bone chips during osteotomy — enabling harvest of patients’ own bone for grafting or filling small defects, improving implant stability.

    Bone Collection Function:
    Collects autogenous bone during drilling procedures.

    Material Quality:
    Manufactured from ultra-high, anti-rust, wear-resistant stainless steel with super-high hardness for long-lasting performance.

    Corrosion Resistance:
    Designed to withstand frequent sterilization without degradation.

    Available Sizes:

    • 2.5 mm

    • 3.0 mm

    • 3.5 mm

    • 4.0 mm

    • 5.0 mm

  • Select the Appropriate Size:
    Choose the required drill diameter (2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 5.0 mm) based on the implant site and clinical requirement.

  • Attach to Handpiece:
    Securely connect the Auto Bone Collector Drill to the surgical contra-angle or implant handpiece.

  • Irrigation Setup:
    Ensure external saline irrigation is properly connected to prevent overheating and to maintain bone viability during drilling.

  • Begin Drilling:

    • Operate at the recommended RPM for implant osteotomy (typically 250–350 RPM, depending on bone density).

    • Apply steady, controlled pressure and follow standard osteotomy protocols.

  • Bone Collection:
    As drilling progresses, autogenous bone particles are automatically collected in the internal chamber of the drill.

  • Stop and Retrieve Bone:

    • Remove the drill from the site after drilling.

    • Carefully unscrew the collection chamber.

    • Use a sterile instrument to retrieve and transfer the collected bone graft material.

  • Reuse or Continue Drilling:
    If additional bone is required, reassemble the drill and repeat the procedure.

    • No
    Smart Dental Innovation Benefits
    FreeShipping*
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is an autogenous bone chip collector drill?

    Answer: The autogenous bone chip collector drill is a precision-engineered dental surgical instrument designed to collect bone particles during implant site preparation. these collected bone chips can then be reused for bone grafting or filling defects around the implant, improving procedural outcomes.

    question
    How does the bone chip collector drill work?

    Answer: The drill features an internal chamber with slots that trap bone particles generated during osteotomy drilling. as the drill rotates and cuts, these bone chips are collected inside the chamber for retrieval post-procedure.
