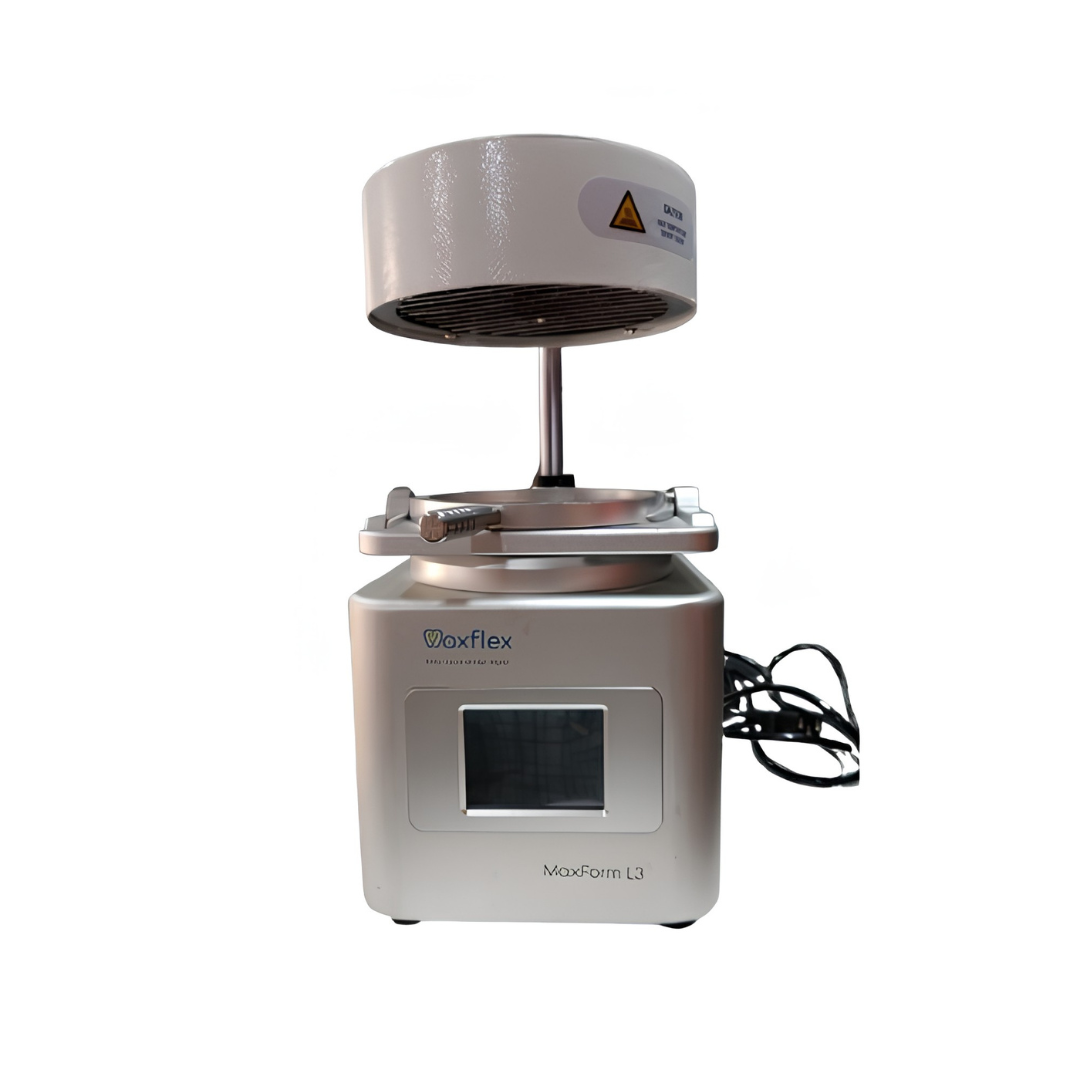

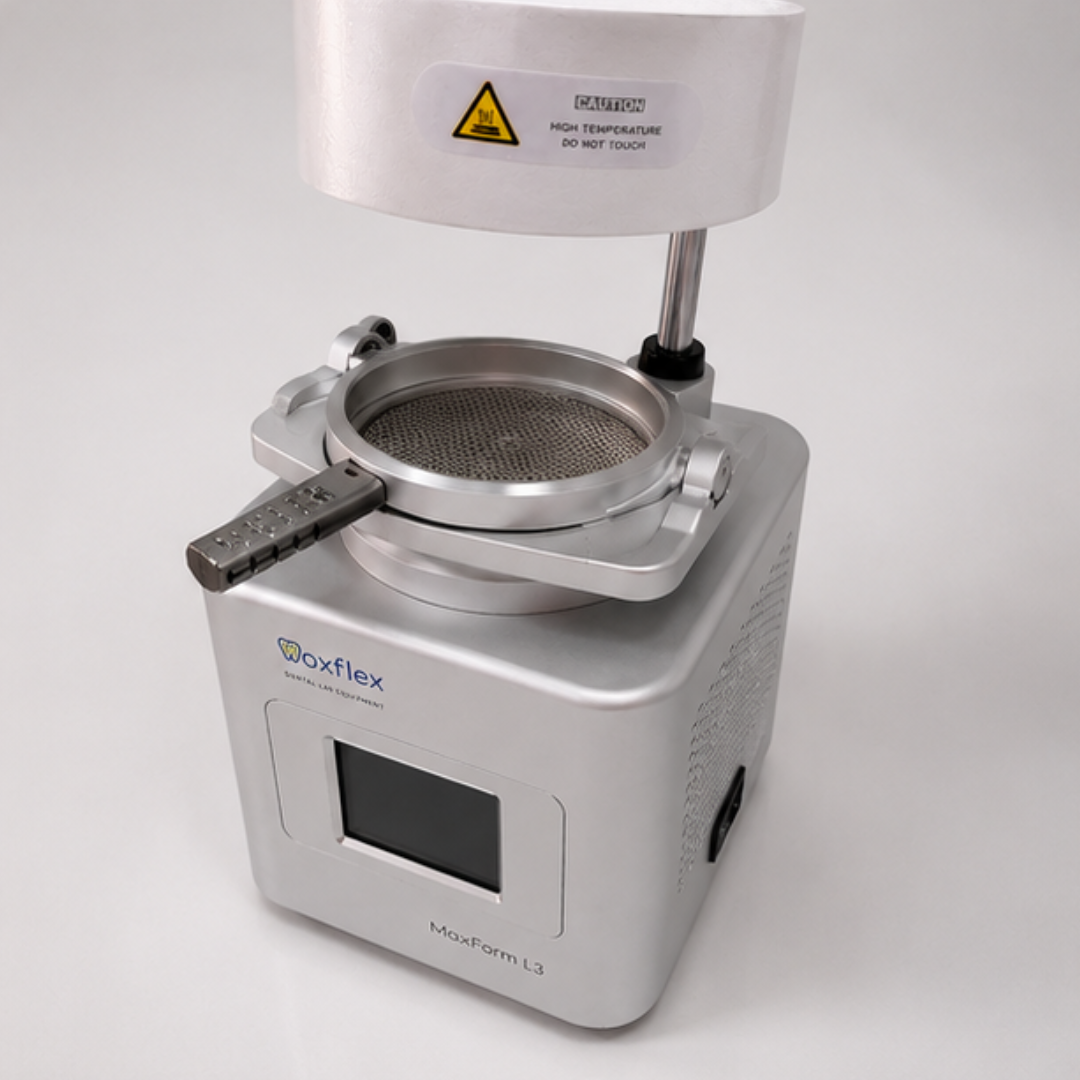

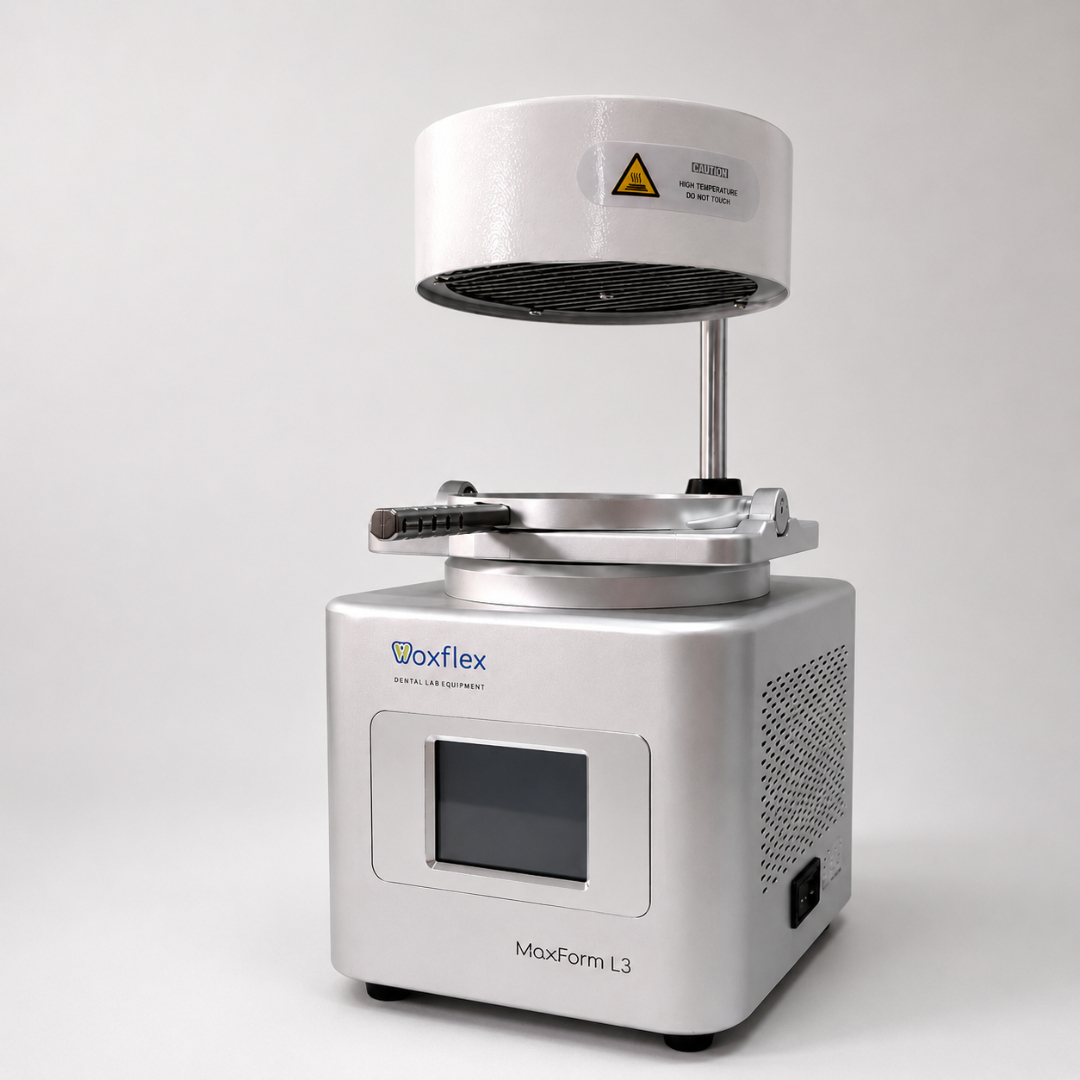

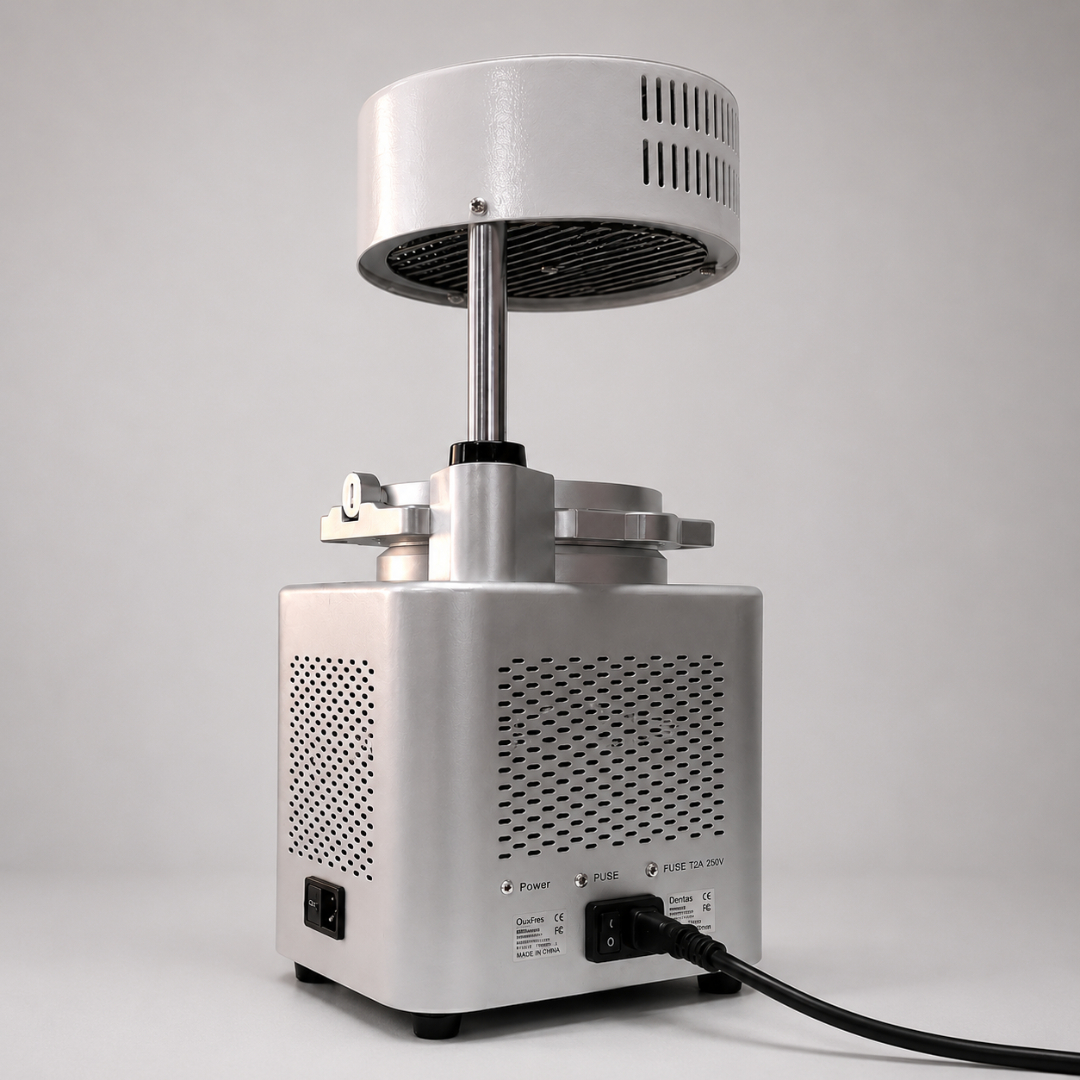

L3 Thermoforming Machine
Size: Generic

Brand : Smart Dental Innovations

0.0
0 Reviews

Automatic negative-pressure forming makes the L3 thermoforming machine suitable for fabricating clear aligners, retainers, bleaching trays, sports mouthguards, and other orthodontic appliances. This dental thermoforming machine accommodates soft and rigid thermoplastic sheets with a listed thickness range of 0.4 mm to 3.0 mm.

Delivery Details
location pin
Product Highlights
  • Price: Inr 120000
  • Product name: L3 thermoforming machine
  • Weight: 8 kg
  • Function: Dental vacuum forming unit
  • Applications: Aligners, retainers, mouthguards, orthodontics

Clear aligners and other orthodontic appliances require accurately formed thermoplastic sheets to adapt to dental models. The L3 Thermoforming Machine uses automatic negative-pressure technology to form suitable sheets over a dental model, making it useful for dental clinics and laboratories involved in appliance fabrication.

Its vacuum-forming system supports soft and rigid sheets ranging from 0.4 mm to 3.0 mm in thickness. This range provides material options for different appliance applications, including clear aligners, orthodontic retainers, bleaching trays, and sports mouthguards. The thermoforming machine dental professionals use for these applications must accommodate the selected sheet material and thickness.

Fabrication of different orthodontic appliances makes the L3 a versatile dental thermoform machine for laboratory and clinical workflows. Its automatic forming operation combines negative pressure with compatible thermoplastic materials to shape appliances over dental models.

  • Product Name: L3 Thermoforming Machine

  • Product Type: Dental vacuum-forming machine

  • Forming Technology: Automatic negative-pressure forming

  • Sheet Compatibility: Soft and rigid thermoplastic sheets

  • Sheet Thickness Range: 0.4 mm to 3.0 mm

  • Appliance Applications: Clear aligners, orthodontic retainers, bleaching trays, and sports mouthguards

  • Fabrication Method: Thermoplastic sheet forming over dental models

  • Intended Settings: Dental clinics and laboratories

  • Connect the machine to a compatible power source (220V).
  • Select the appropriate thermoforming sheet according to the appliance requirement.
  • Place the dental model on the forming platform securely.
  • Fix the thermoforming sheet into the holding frame.
  • Heat the sheet until it becomes soft and flexible.
  • Activate the vacuum forming function to adapt the sheet over the dental model.
  • Allow the material to cool completely before removing.
  • Trim and finish the formed appliance as required.
  • Clean the machine after every use for optimal performance and longevity.
    • 1x Main Thermoforming Machine
    1x Power Cable
    1xUser Manual
    SpecificationDetails
    Product NameL3 Thermoforming Machine
    ApplicationClear Aligners, Retainers, Mouthguards
    Input Voltage220V ~ 50/60 Hz
    Output Voltage24V
    Rated Power800W
    Heating TemperatureUp to 220°C
    Vacuum Pressure-93 Kpa
    Compatible Sheet Thickness0.4 mm – 3.0 mm
    Film CompatibilitySoft & Rigid Sheets
    Membrane Size127 mm Square & 125 mm Round Wafers
    Machine Dimensions260 × 158 × 318 mm
    Weight7.9 KG
    TechnologyAutomatic Negative Pressure Vacuum Forming
    Smart Dental Innovation Benefits
    SecurePayment
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is the l3 thermoforming machine?

    Answer: The l3 thermoforming machine is a high-precision dental vacuum forming unit designed for making invisible aligners, retainers, sports mouthguards, and orthodontic appliances.

    question
    How does the l3 thermoforming machine work?

    Answer: It uses an imported vacuum generator and automatic negative pressure technology to create accurate and efficient thermoforming results with both soft and rigid sheets.

    L3 Thermoforming Machine
    Size: Generic

    Brand : Smart Dental Innovations

    0.0
    0 Reviews

    Automatic negative-pressure forming makes the L3 thermoforming machine suitable for fabricating clear aligners, retainers, bleaching trays, sports mouthguards, and other orthodontic appliances. This dental thermoforming machine accommodates soft and rigid thermoplastic sheets with a listed thickness range of 0.4 mm to 3.0 mm.

    Delivery Details
    location pin
    Product Highlights
    • Price: Inr 120000
    • Product name: L3 thermoforming machine
    • Weight: 8 kg
    • Function: Dental vacuum forming unit
    • Applications: Aligners, retainers, mouthguards, orthodontics

    Clear aligners and other orthodontic appliances require accurately formed thermoplastic sheets to adapt to dental models. The L3 Thermoforming Machine uses automatic negative-pressure technology to form suitable sheets over a dental model, making it useful for dental clinics and laboratories involved in appliance fabrication.

    Its vacuum-forming system supports soft and rigid sheets ranging from 0.4 mm to 3.0 mm in thickness. This range provides material options for different appliance applications, including clear aligners, orthodontic retainers, bleaching trays, and sports mouthguards. The thermoforming machine dental professionals use for these applications must accommodate the selected sheet material and thickness.

    Fabrication of different orthodontic appliances makes the L3 a versatile dental thermoform machine for laboratory and clinical workflows. Its automatic forming operation combines negative pressure with compatible thermoplastic materials to shape appliances over dental models.

    • Product Name: L3 Thermoforming Machine

    • Product Type: Dental vacuum-forming machine

    • Forming Technology: Automatic negative-pressure forming

    • Sheet Compatibility: Soft and rigid thermoplastic sheets

    • Sheet Thickness Range: 0.4 mm to 3.0 mm

    • Appliance Applications: Clear aligners, orthodontic retainers, bleaching trays, and sports mouthguards

    • Fabrication Method: Thermoplastic sheet forming over dental models

    • Intended Settings: Dental clinics and laboratories

  • Connect the machine to a compatible power source (220V).
  • Select the appropriate thermoforming sheet according to the appliance requirement.
  • Place the dental model on the forming platform securely.
  • Fix the thermoforming sheet into the holding frame.
  • Heat the sheet until it becomes soft and flexible.
  • Activate the vacuum forming function to adapt the sheet over the dental model.
  • Allow the material to cool completely before removing.
  • Trim and finish the formed appliance as required.
  • Clean the machine after every use for optimal performance and longevity.
    • 1x Main Thermoforming Machine
    1x Power Cable
    1xUser Manual
    SpecificationDetails
    Product NameL3 Thermoforming Machine
    ApplicationClear Aligners, Retainers, Mouthguards
    Input Voltage220V ~ 50/60 Hz
    Output Voltage24V
    Rated Power800W
    Heating TemperatureUp to 220°C
    Vacuum Pressure-93 Kpa
    Compatible Sheet Thickness0.4 mm – 3.0 mm
    Film CompatibilitySoft & Rigid Sheets
    Membrane Size127 mm Square & 125 mm Round Wafers
    Machine Dimensions260 × 158 × 318 mm
    Weight7.9 KG
    TechnologyAutomatic Negative Pressure Vacuum Forming
    Smart Dental Innovation Benefits
    SecurePayment
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is the l3 thermoforming machine?

    Answer: The l3 thermoforming machine is a high-precision dental vacuum forming unit designed for making invisible aligners, retainers, sports mouthguards, and orthodontic appliances.

    question
    How does the l3 thermoforming machine work?

    Answer: It uses an imported vacuum generator and automatic negative pressure technology to create accurate and efficient thermoforming results with both soft and rigid sheets.

    Related Products
    a
    Implant Tool Sterilizing Box

    variant available from

    ₹850

    ₹590

    31% OFF

    a
    GP Spike (Gutta Percha Remover), 0.7 x 28mm

    variant available from

    ₹2,200

    ₹1,890

    14% OFF

    5.0

    |

    1

    Aero Blast Pro With Powder

    variant available from

    ₹25,000

    ₹19,999

    20% OFF

    a
    OptiSmart (LED Portable Light)

    variant available from

    ₹13,000

    ₹9,990

    23% OFF

    a
    Contraster, Pack of 3

    variant available from

    ₹1,299

    ₹990

    24% OFF

    a

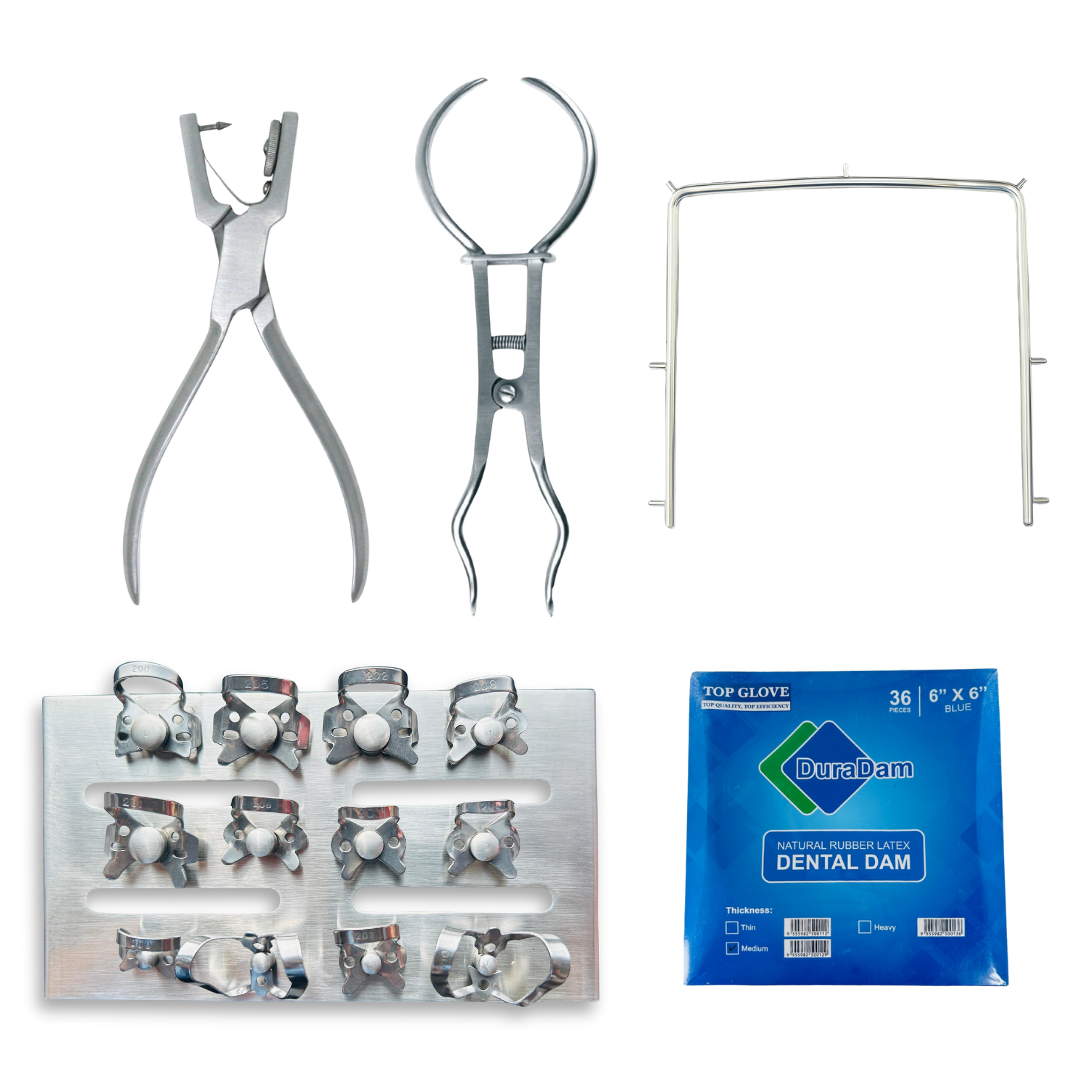

    Rubber Dam Metal Frame
