Maximum Total Flow

• Oxygen (O₂): 100 ml/min to 10 LPM

• Nitrous Oxide (N₂O): 100 ml/min to 7 LPM

Standard Dimensions

• Height × Width × Depth: 1300 × 600 × 600 mm

Precise Flow

• Minimum 100 ml/min

Gas Concentration Range

• Nitrous Oxide (N₂O): 0 – 70%

• Oxygen (O₂): 30 – 100%

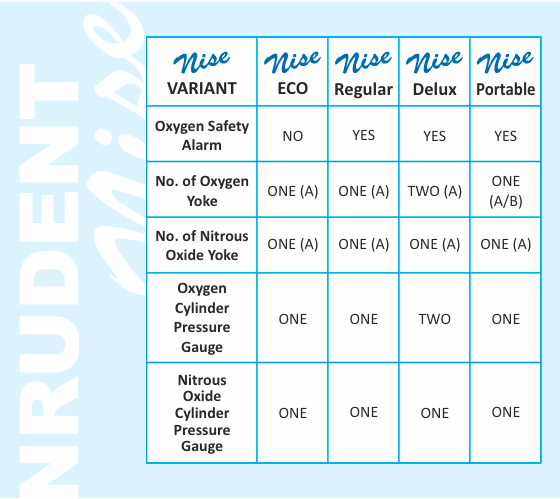

Cylinder Yokes

• Brass forged gas-specific “A” Type (PISS) cylinder yokes

• Oxygen (O₂): 1 No. (Optional: 2 Nos. at extra cost)

• Nitrous Oxide (N₂O): 1 No. (standard supply)

• Stainless steel clamping bar with thumb screw

Central Gas Supply

• Oxygen (O₂) and Nitrous Oxide (N₂O) connection with Pin-Index Block Type

Input Pressure

• 50 PSI ± 10%

Scavenging System

• Scavenging Nasal Hood (as per US FDA standards)

Safety Valve

• Automatic N₂O cut-off if oxygen supply fails

Oxygen Flush (Quick Supplement)

• More than 35 L/min

Rebreathing Bag

• 3 Litres (as per US FDA standards)

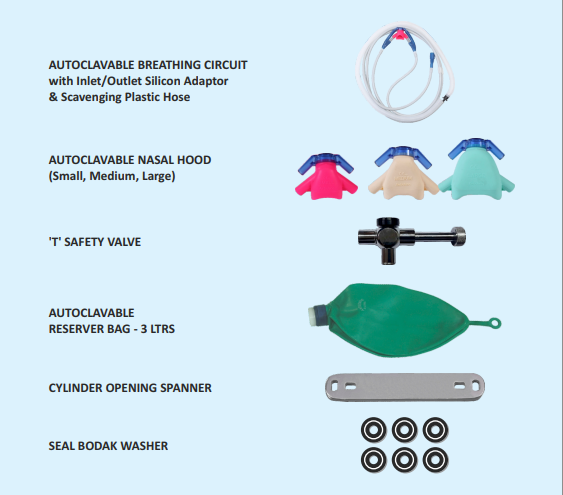

Safety Features

• Oxygen fail-safe mechanism with oxygen alarm

• Fully autoclavable breathing circuit

• NRV cum pressure relief valve to minimize gas backflow and release pressure exceeding 200 cm H₂O

• “T” safety valve system for reservoir bag with emergency air intake valve

1. Scavenging System

A scavenging system must be used to remove Nitrous Oxide (N₂O) from the patient’s mask.

Exhaust ventilation of N₂O from the patient's mask should be maintained at an airflow rate of 45 LPM.

The airflow must be measured using a calibrated flow device.

The exhaust gas must be vented outdoors and must not be discharged into the room ventilation system.

2. Room Ventilation

Where possible, 100% fresh outdoor air should be used for dental operatory ventilation.

Supply and exhaust vents should be placed well apart to ensure proper air circulation.

Vent placement must prevent short-circuiting of airflow and allow effective mixing of fresh air.

3. Auxiliary Exhaust Ventilation

A local exhaust hood should be installed near the patient’s mouth.

This hood helps capture excess Nitrous Oxide (N₂O) released during breathing.
