Platform / Connection Type: Internal Hex (Dentium standard) Diameter (Platform / Emergence Profile): The online listing shows D4.5 mm and D5.5 mm variants for platform diameter. Gingival Height (GH): Multiple options listed — e.g. GH = 1.0 mm, 1.5 mm, 2.5 mm, 3.5 mm, 4.5 mm (depending on variant) in combination with D4.5 mm. Abutment Height (AH): 5.5 mm (for the variants listed) Material Titanium (consistent with Dentium implant system materials — e.g. Grade 4 or medical-grade Ti) Compatibility: Compatible with Dentium implant systems (e.g. SuperLine / Implantium series) using internal-hex connection. Intended Use: For single-unit crowns or small bridges (FDPs), cement-retained or screw-retained prosthetics attached to implant fixtures

Expose implant and remove healing abutment using the appropriate driver. Seat the regular abutment onto the implant connection; verify full seating visually and radiographically. Tighten prosthetic screw using a compatible torque wrench. Recommended torque: 20–30 Ncm (as per Dentium guidelines). Check abutment position for alignment and occlusal clearance. Proceed with impression-taking or crown placement as required.

Certification

• ISO / CE Certified

Flow Meter

• Hypoxyguard Flow Meter

Maximum Total Flow

• O₂ (Oxygen): 100 ml to 10 LPM

• N₂O (Nitrous Oxide): 100 ml to 7 LPM

Dimensions

• Standard Dimension (H × W × D): 1300 × 600 × 600 mm

Flow Accuracy

• Precise Flow: Minimum 100 ml/min

Gas Concentration Range

• Nitrous Oxide (N₂O): 0 – 70%

• Oxygen (O₂): 30 – 100%

Cylinder Yoke System

• Brass Forged Gas-Specific “A” Type (PISS) Cylinder Yokes

• O₂: 01 / 02 Nos. (Optional)

• Standard Supply: 01 O₂ cylinder yoke

• With stainless steel clamping bar and thumb screw

Central Gas Supply

• O₂ and N₂O compatible with pin-index block type connection

Input Pressure

• 50 PSI ± 10%

Scavenging System

• Scavenging Nasal Hood (as per US FDA standards)

Safety Features

• Safety Valve: Automatic cut-off for N₂O if oxygen fails

• Oxygen Flush: Quick supplement flow > 35 L/min

• Oxygen Fail-Safe Mechanism with oxygen alarm

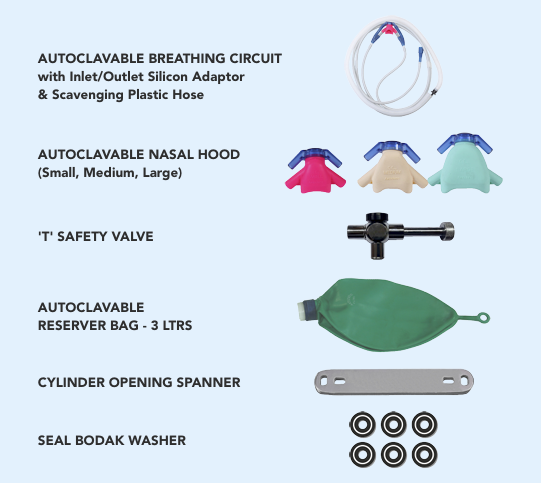

Reservoir Bag

• Capacity: 3 Litres (as per US FDA)

Breathing Circuit

• Fully autoclavable breathing circuit

Pressure Safety System

• NRV cum Pressure Relief Valve

  • Prevents backflow of gases

  • Releases pressure when exceeding 200 cm H₂O

Emergency Safety System

• “T” Safety Valve System for reservoir bag

• Includes emergency air intake valve

1. Scavenging System

• Use a scavenging exhaust ventilation system.

• Exhaust ventilation of N₂O (Nitrous Oxide) from the patient’s mask should be maintained at an airflow rate of 45 LPM, measured by a calibrated flow device.

• Exhaust gases must be vented outdoors and not into the room ventilation system.

2. Room Ventilation

• Wherever possible, use 100% clean outdoor air for dental operatory ventilation.

• Supply and exhaust vents should be well separated to allow proper air mixing and prevent “short-circuiting” of airflow.

3. Auxiliary Exhaust Ventilation

• A local exhaust hood should be placed near the patient’s mouth to capture excess N₂O released during breathing.
