The Implant Guide Kit – Implant Placement Guide Kit is a precision-engineered surgical instrument set developed to simplify and enhance the accuracy of dental implant placement. Designed for implantologists, oral surgeons, and general dental practitioners, this comprehensive kit provides reliable guidance for controlled osteotomy preparation, ensuring optimal implant positioning, angulation, and depth during surgical procedures.

Manufactured from premium medical-grade stainless steel and anodized aluminum components, the kit offers exceptional durability, corrosion resistance, and long-term clinical performance. Each guide is precisely machined to maintain dimensional accuracy, enabling clinicians to perform implant surgeries with greater confidence and consistency.

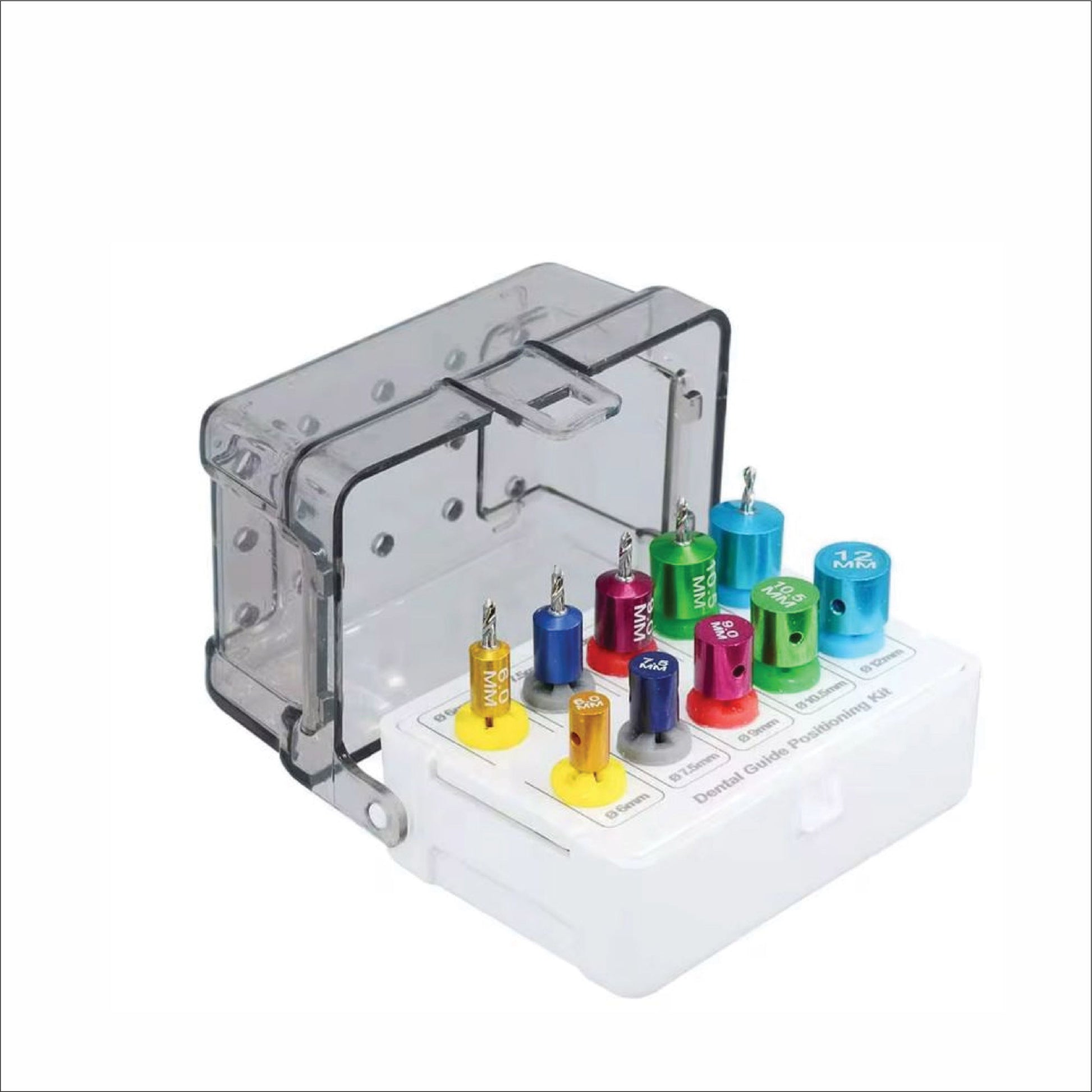

The kit includes multiple color-coded drill guides and positioning sleeves in various diameters, allowing easy identification and quick selection during surgery. These guides help direct implant drills accurately while minimizing deviation, reducing the possibility of incorrect angulation or excessive bone removal. By maintaining the planned drilling trajectory, the kit supports precise implant placement and improves overall treatment predictability.

Designed for compatibility with a wide range of implant systems, the Implant Guide Kit is suitable for both single-tooth and multiple implant cases. It can be used in conjunction with surgical guides, pilot drills, and implant positioning protocols to achieve consistent restorative outcomes. The ergonomic design allows convenient handling and efficient workflow during implant procedures.

The included sterilizable storage cassette securely organizes all components, ensuring easy identification, safe transportation, and efficient instrument management. Each component is fully autoclavable, allowing repeated sterilization without compromising precision or durability, making the kit ideal for routine clinical use.

Whether performing straightforward implant placement or managing complex restorative cases, the Implant Guide Kit – Implant Placement Guide Kit improves surgical precision, enhances workflow efficiency, reduces procedural errors, and supports predictable long-term implant success.

1. Preparation

Sterilize all kit components before each procedure (autoclave at 121–134 °C).

Review the digital or surgical implant plan and confirm the correct guide sleeve sizes and drill sequence.

Position the surgical guide in the patient’s mouth and verify accurate, stable seating.

2. Drilling Protocol

Begin with the pilot drill through the corresponding guide sleeve.

Follow the recommended drilling sequence according to implant diameter and length.

Maintain adequate irrigation throughout drilling to prevent overheating.

Ensure each drill reaches the planned depth stop as dictated by the surgical guide.

3. Implant Site Formation

Use subsequent guided drills or bone expanders (if applicable) through the guide sleeves.

Continuously monitor the stability and positioning of the surgical guide during the procedure.

4. Implant Placement

Insert the implant using a guided insertion tool or handpiece-compatible driver.

Confirm implant alignment follows the digitally planned trajectory.
