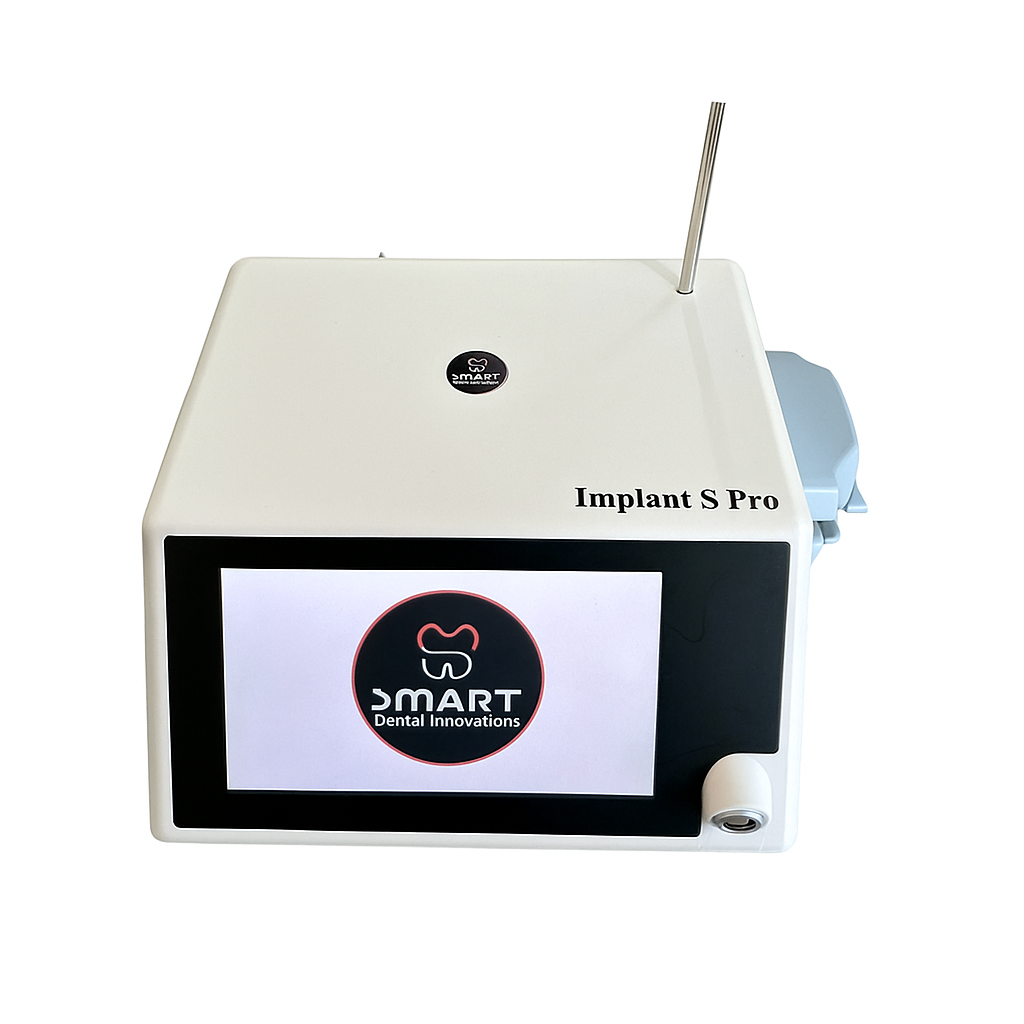

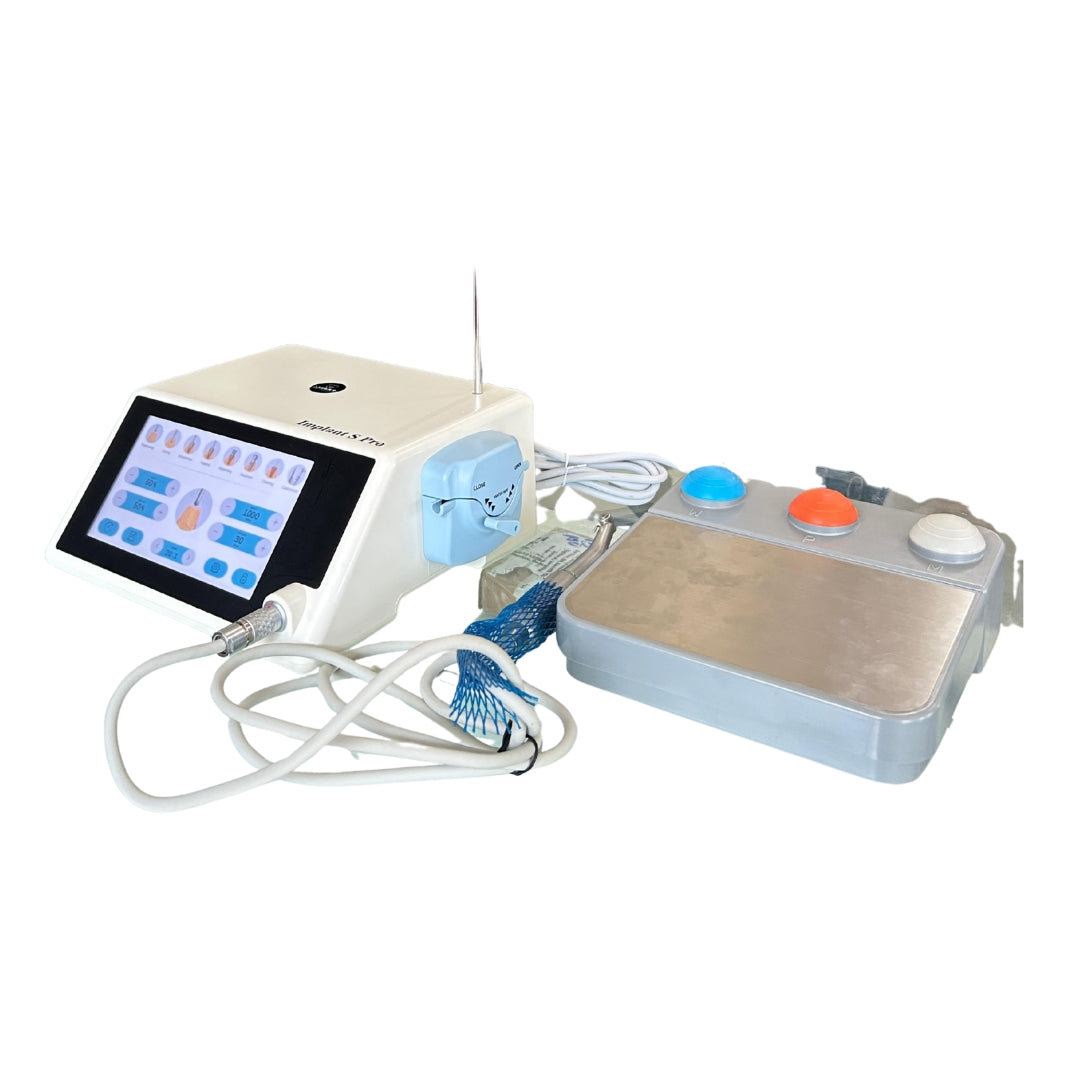

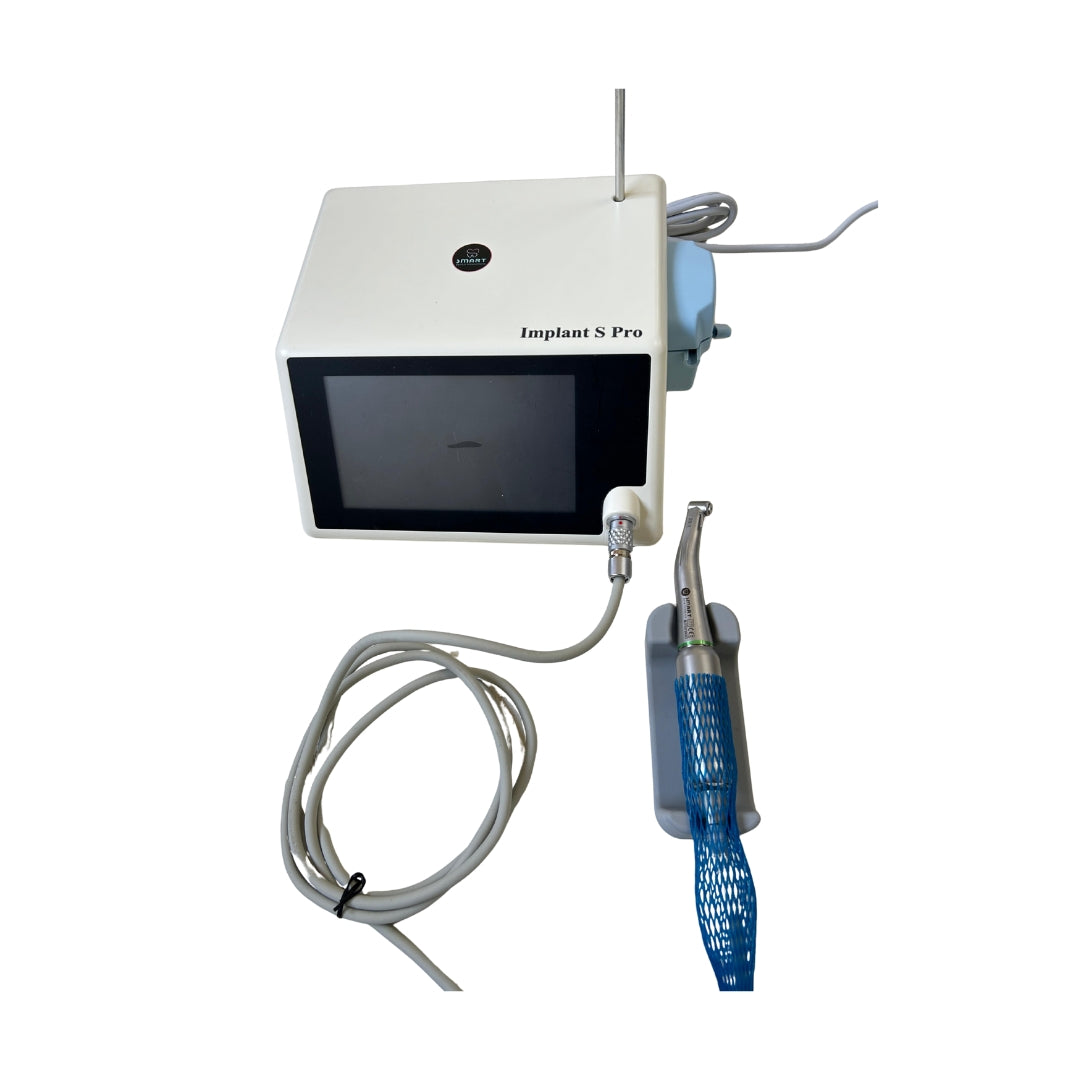

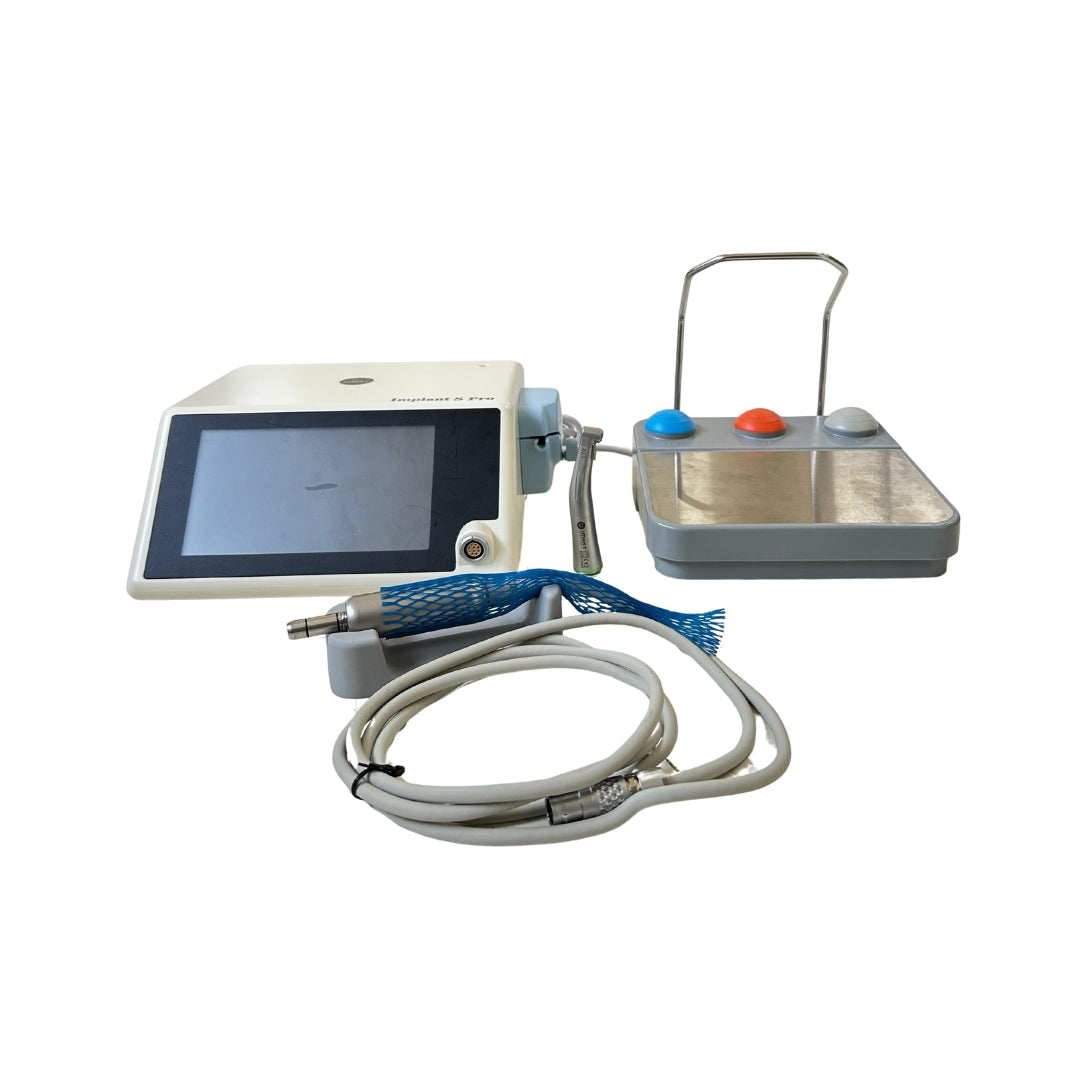

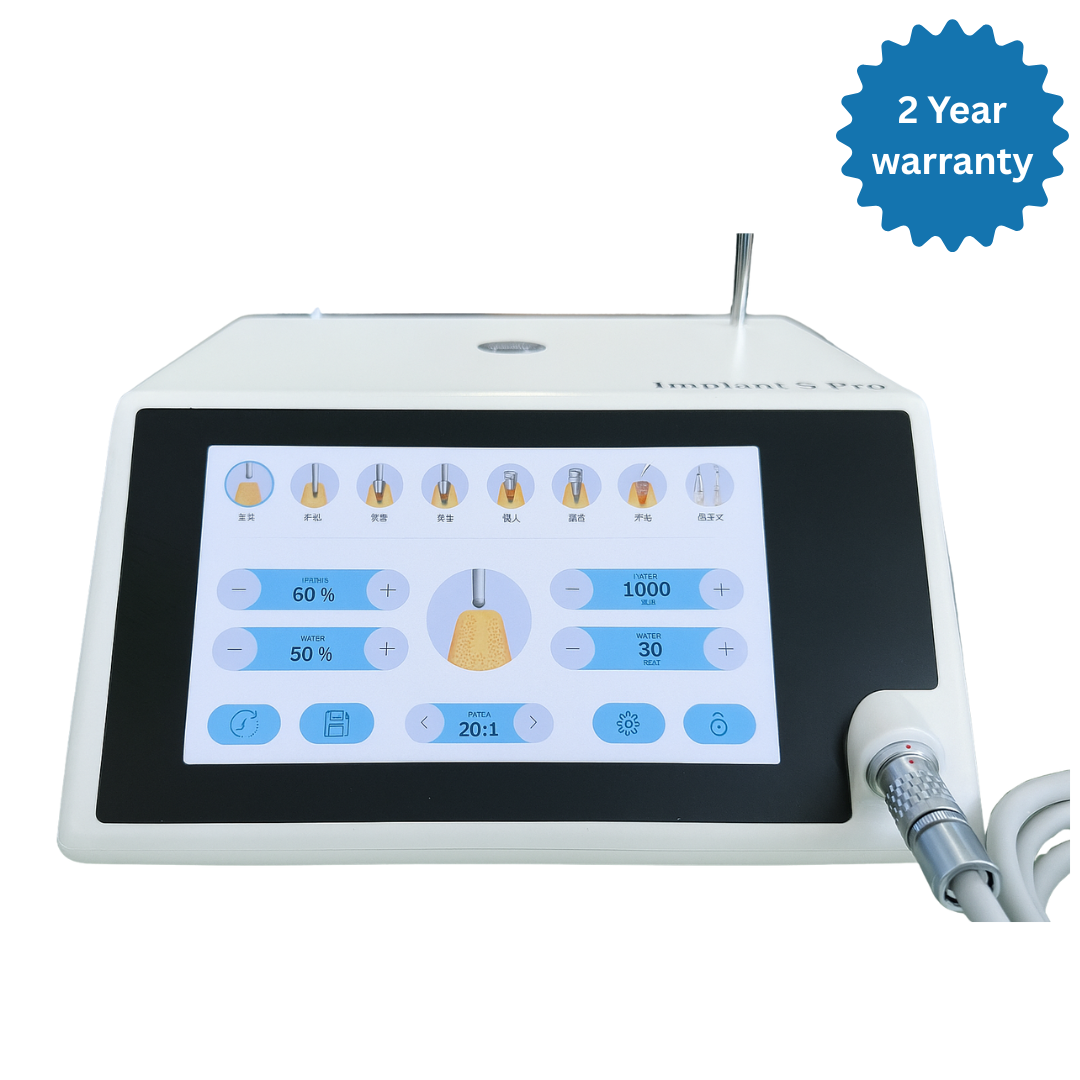

Implant S Pro Physio With 2 year Warranty

The Implant S Pro is a high-performance implant motor system designed to deliver precision, control, and reliability for all your implantology needs. Equipped with a touch-sensitive color screen, 7 pre-set programs, and a peristaltic pump water system, it ensures smooth and efficient procedures. Whether you’re placing implants, doing sinus lifts, or performing bone surgeries, this device supports consistent outcomes and enhanced patient comfort.

Ideal for implantologists, oral surgeons, and advanced general practitioners looking for a smart, intuitive, and powerful solution.

- Model: PLH-VM1
- Motor Type: Surgical brushless motor
- Motor Speed: 200–40,000 RPM (1:1 Ratio)
- Torque: 5–80 N.cm (20:1 Ratio)
- Input Voltage: AC 100–240V, 50/60Hz
- Output Voltage: DC 30–36V
- Water Pump Output: 130–140 ml/min
- Foot Pedal Cord Length: 1.8 meters
- Programs: 8 built-in setting programs
- Handpiece Compatibility: 20:1 Fiber Optic Contra Angle
- Gear ratios supported: 16:1, 27:1, 1:1, 1:2, 1:3, 1:5
- Lighting: LED light source illumination
- Warranty: 2 Year
- Price: ₹65,000/- (Shipping Extra)

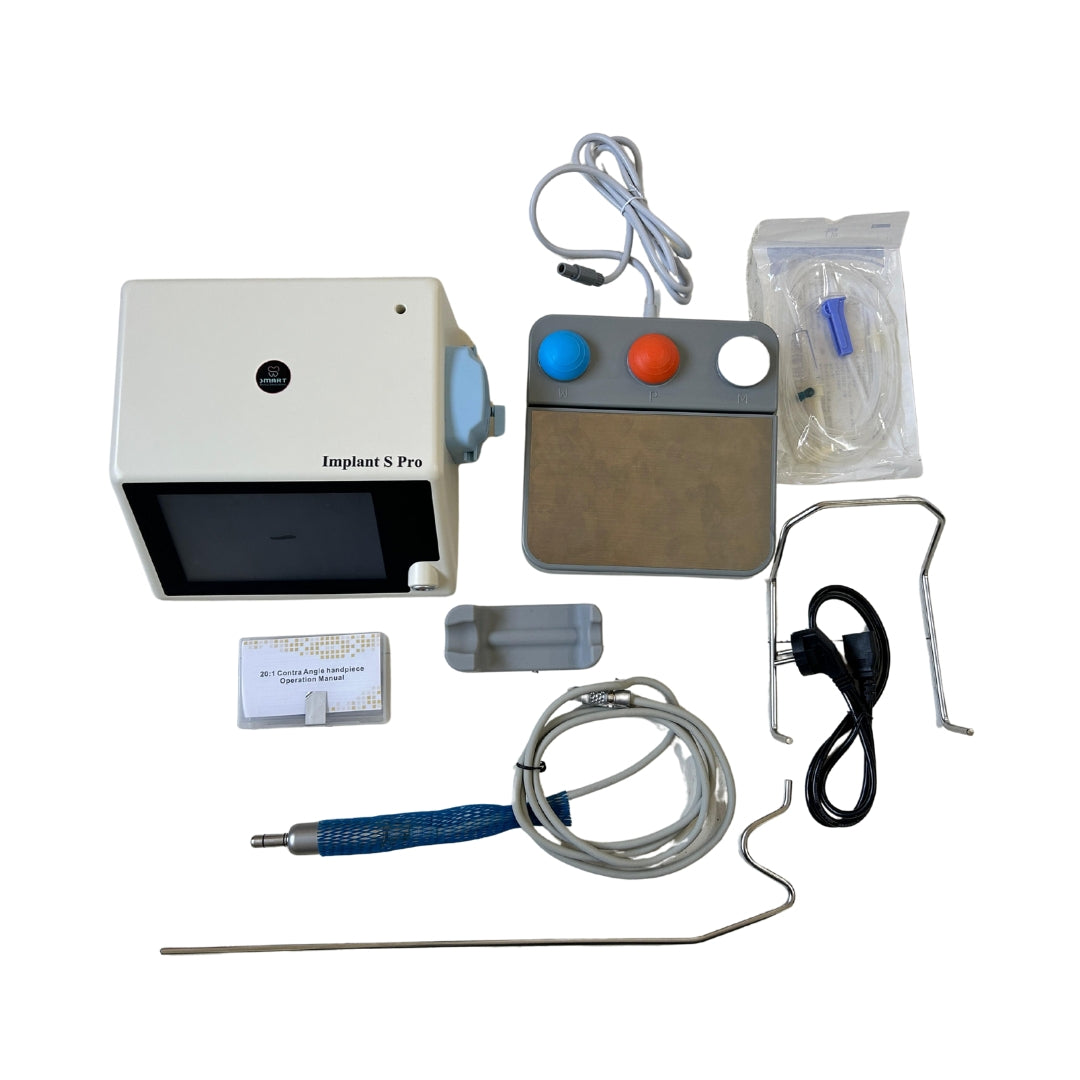

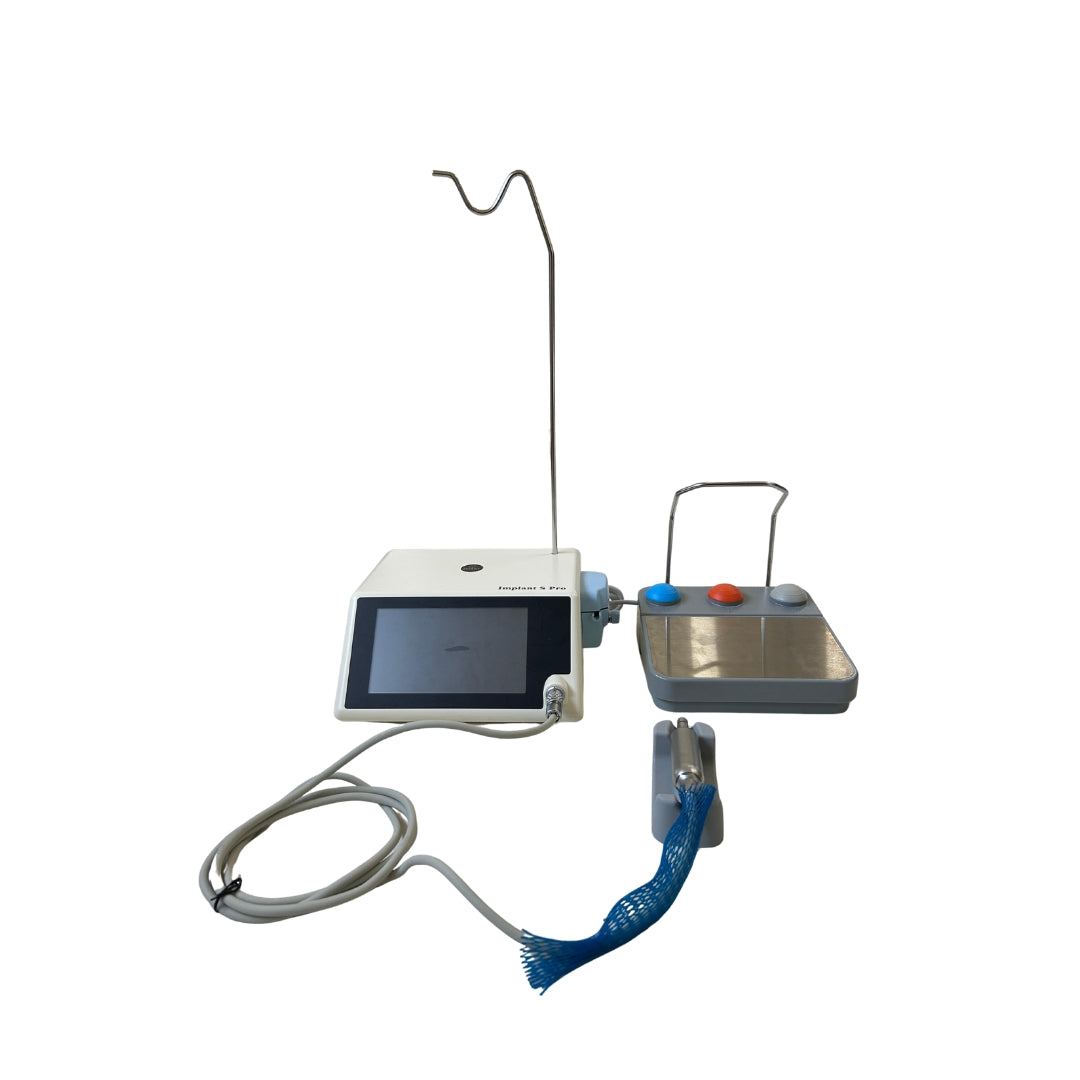

Control Unit - 1 pc

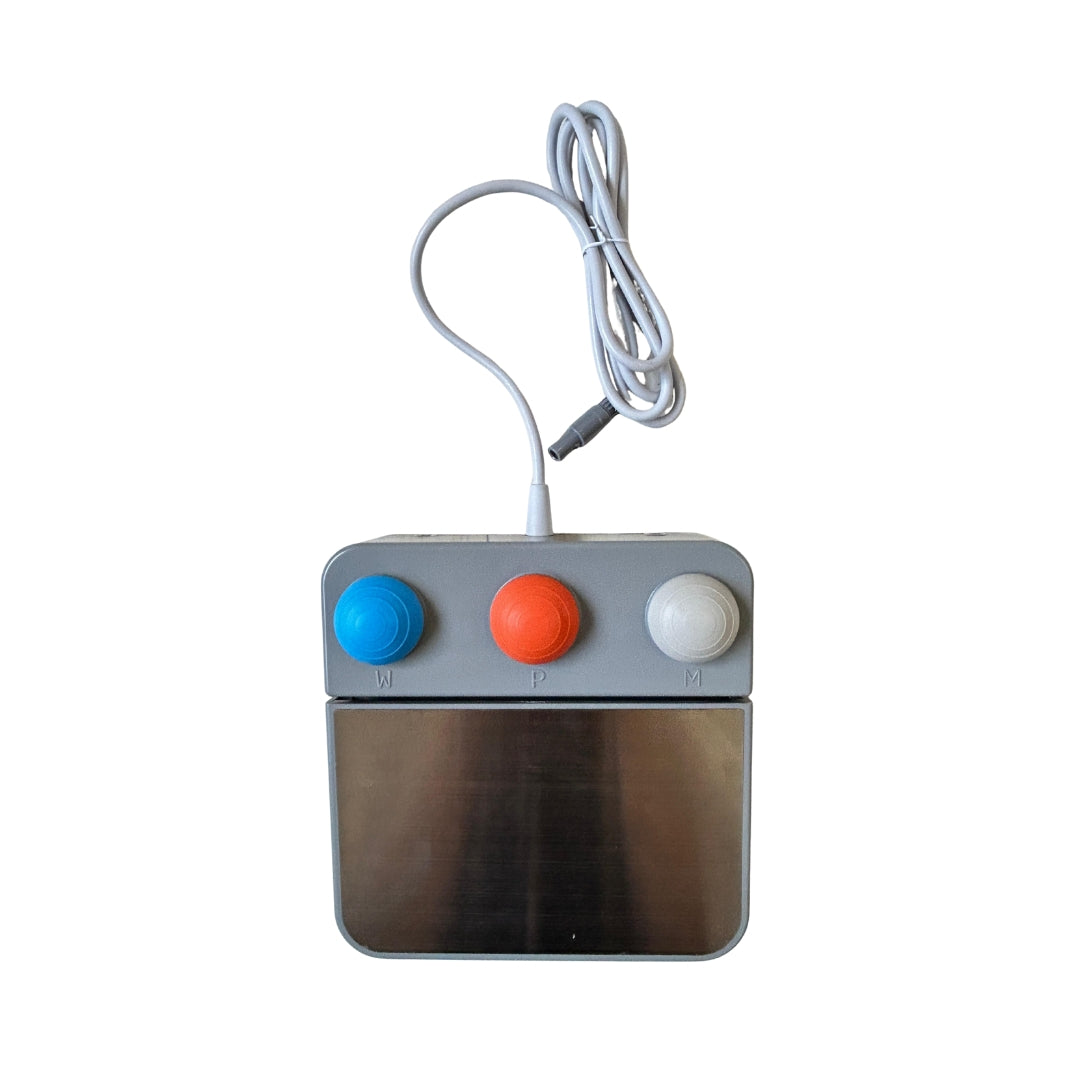

Foot Control - 1 pc
Power Cord - 1 pc

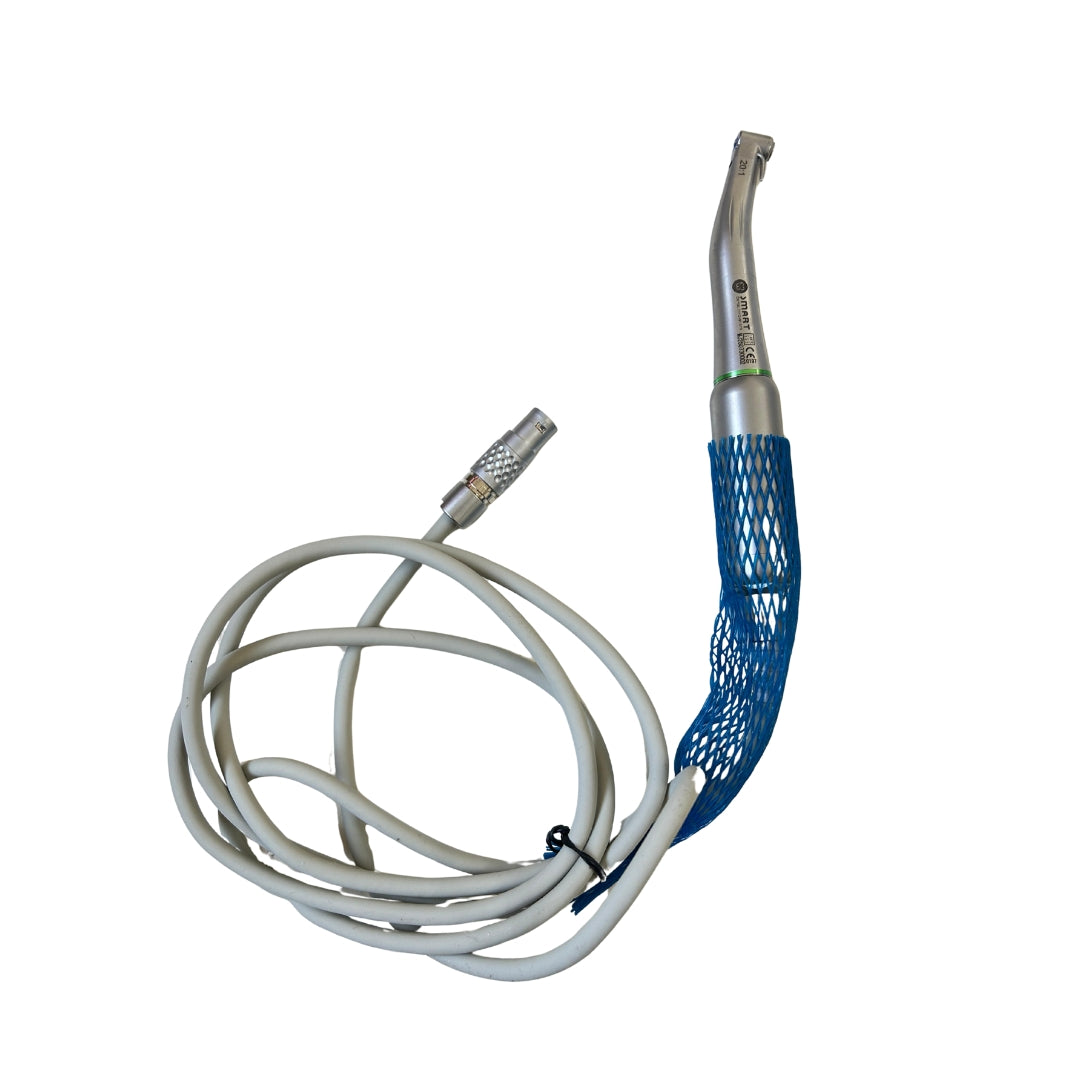

Motor Handle with Cable - 1 pc
Bottle Hanger Post - 1 pc
Silicon Rubber Stand - 1 pc
Irrigation Tube - 1 packs

1. Initial Setup:
- Place the unit on a stable, flat surface.
- Connect the power cable, foot pedal, and 20:1 fiber optic contra angle handpiece.
- Attach the irrigation tubing and hang the saline bottle in the holder.

2. Power On:
- Switch on the main power.
- The touch screen display will light up and show the main menu.

3. Program Selection:
- Choose from 8 built-in implant programs via the touchscreen.
- Adjust torque, speed, and irrigation flow as per surgical requirements.

4. Handpiece Preparation:
- Insert the surgical bur into the contra angle.
- Ensure the bur is securely locked in place.

5. Irrigation Setup:
- Prime the irrigation line to ensure continuous water flow (130–140 ml/min recommended).
- Adjust the peristaltic pump speed if needed.

6. Using the Foot Pedal:
- Use the multifunctional foot pedal to control motor speed and irrigation on/off.
- Press gently for speed control, and use side buttons (if available) for additional functions.

7. Performing the Procedure:
- Begin with initial osteotomy using appropriate RPM (adjustable up to 40,000 RPM).
- Modify torque and speed based on bone density and drill size.

8. After Use:
- Flush the irrigation system with clean water or disinfectant.
- Wipe down the unit with a soft disinfectant cloth.
- Sterilize the handpiece according to standard protocols.

2 Year Warranty
