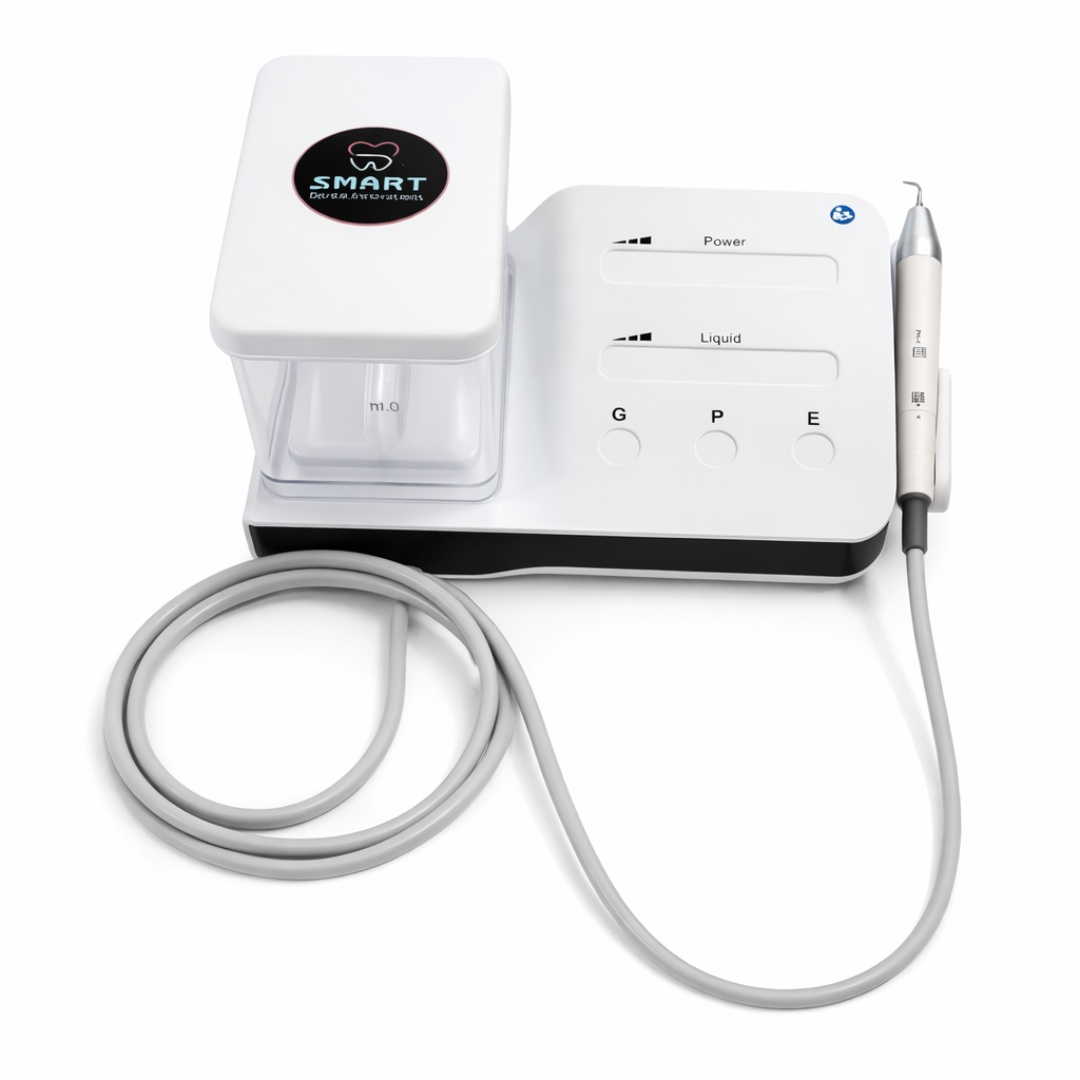

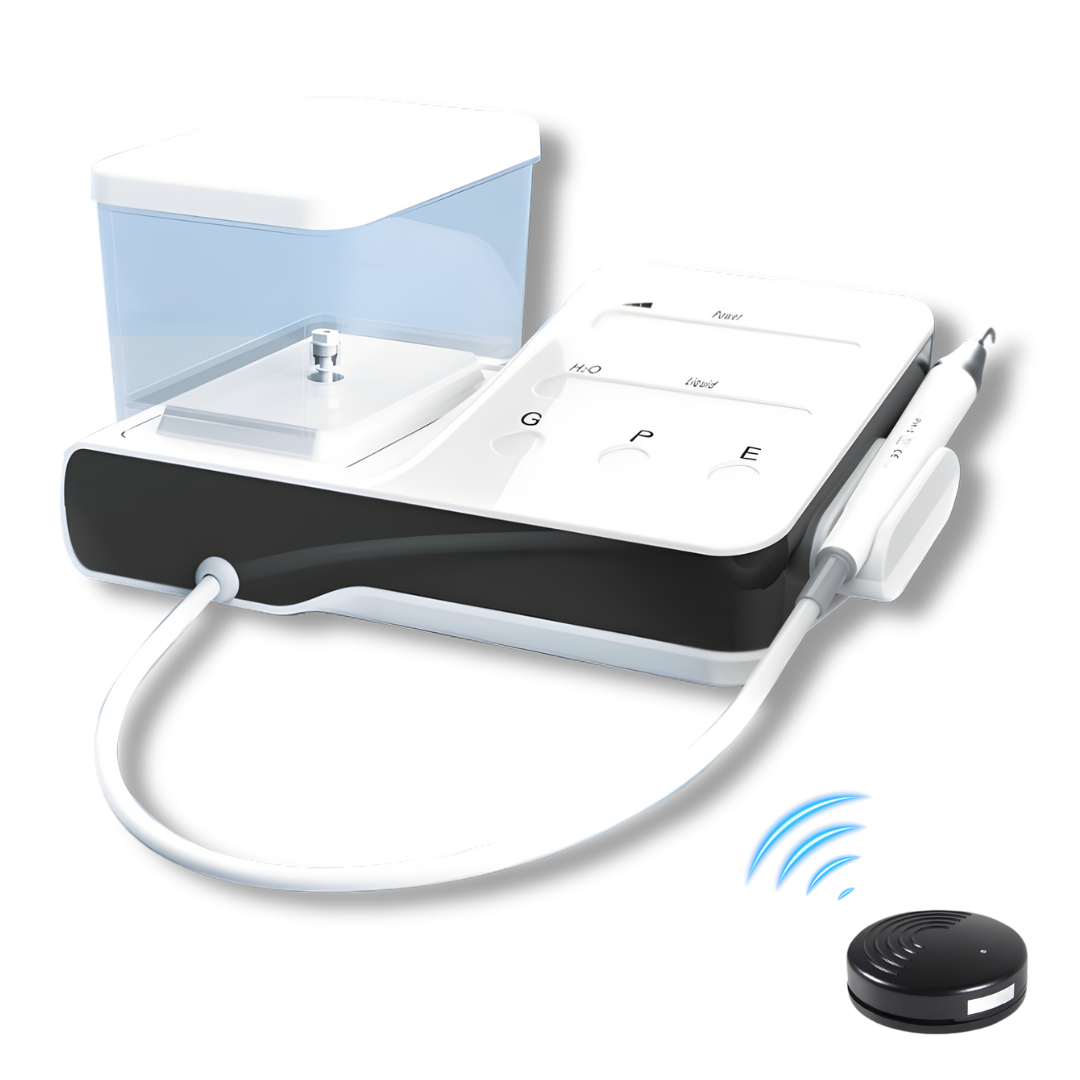

The Ultra Scaler Pro by Smart Dental Innovations is a high-performance ultrasonic scaling system designed to deliver efficient calculus removal, enhanced visibility, and superior patient comfort. Engineered for daily clinical use, it combines powerful ultrasonic performance with smart controls and ergonomic design.

Operating across a wide frequency range of 18 kHz to 45 kHz, the Ultra Scaler Pro adapts smoothly to different clinical procedures. It features three dedicated modes—G (Scaling), P (Periodontal), and E (Endodontic)—allowing precise treatment customization. With 10 adjustable power levels, clinicians can fine-tune output according to case sensitivity and treatment depth.

The detachable LED handpiece ensures excellent illumination of the operating field, improving accuracy during subgingival and periodontal procedures. A wireless foot pedal provides smooth, cable-free control, while the responsive smart touch panel makes operation intuitive and efficient.

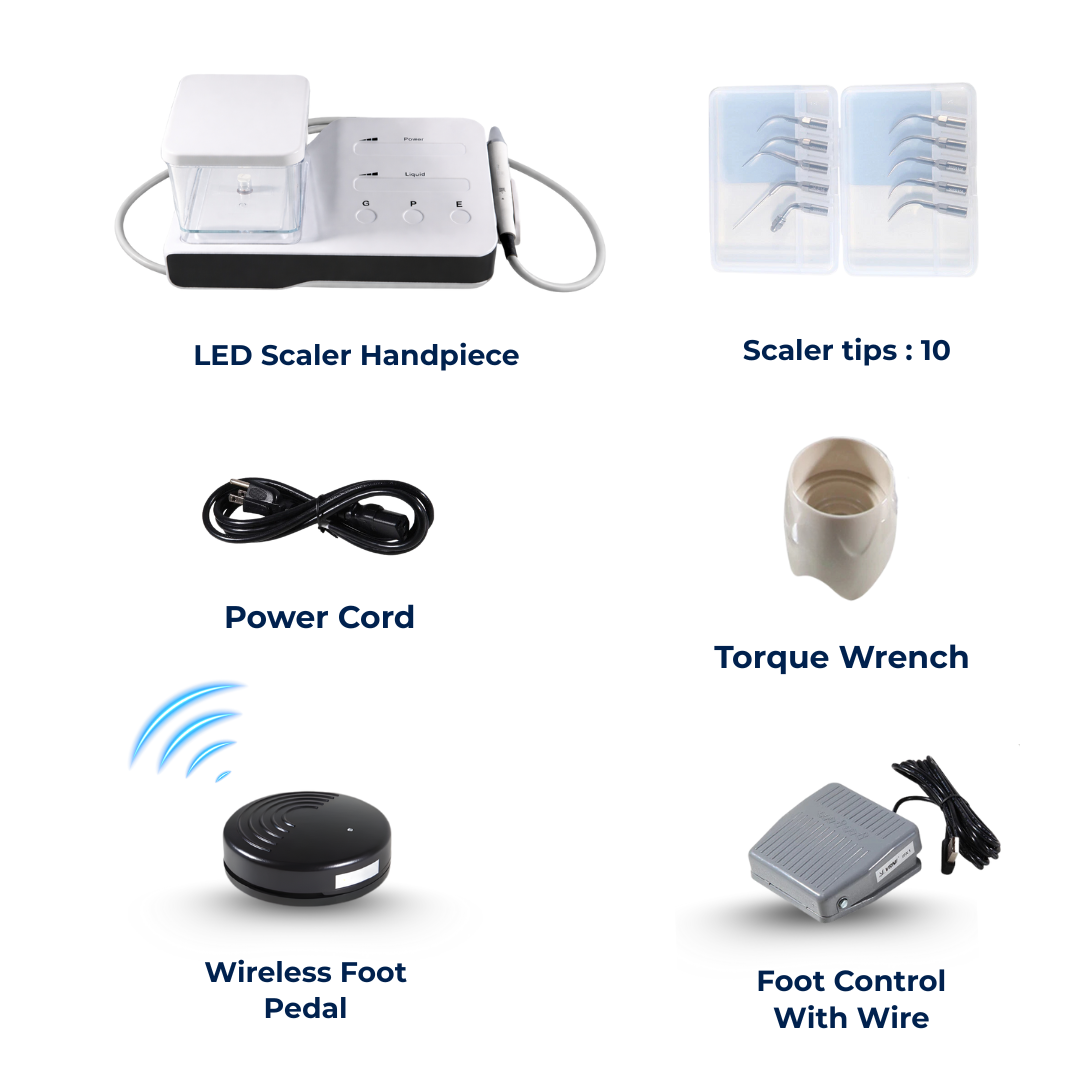

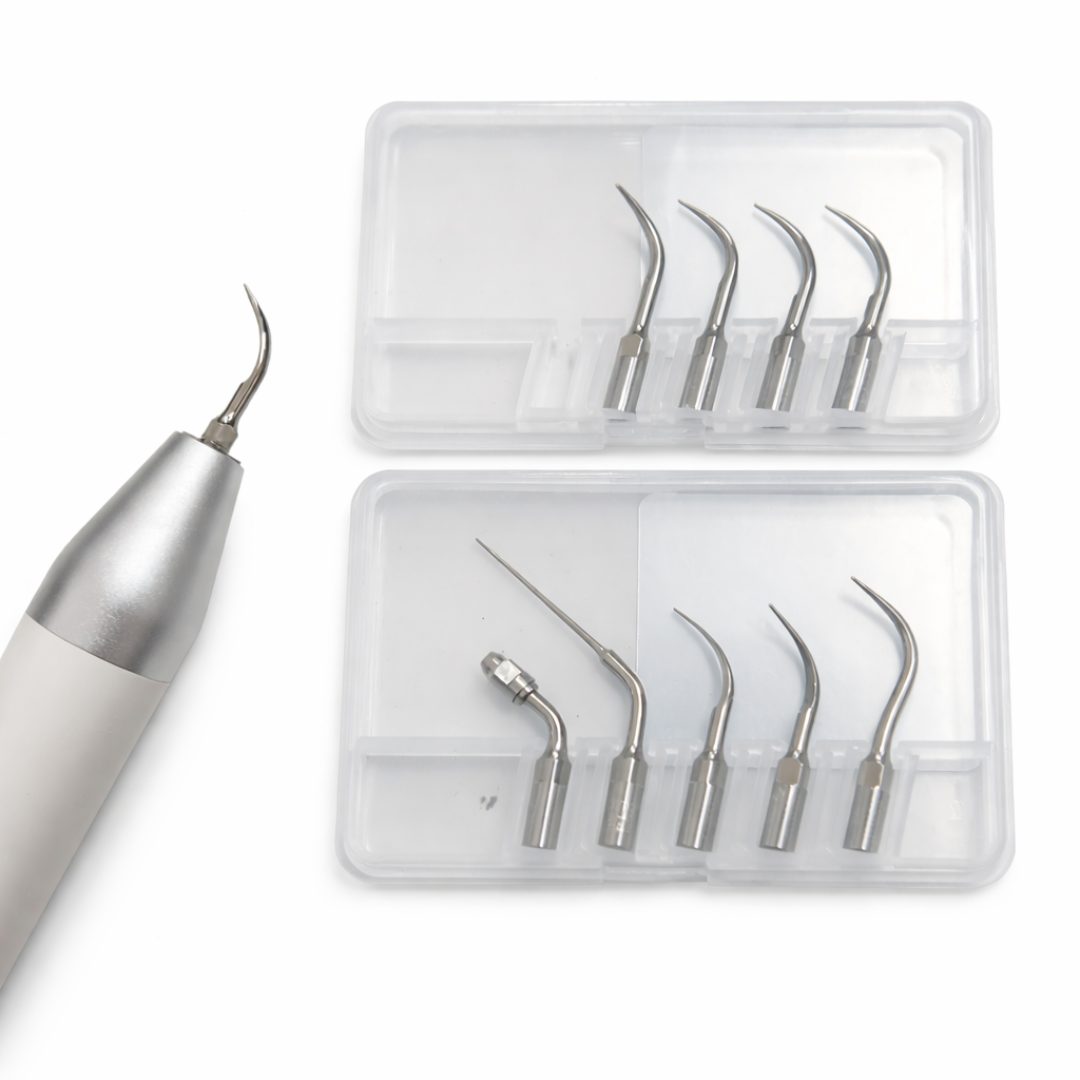

Supplied with 10 durable scaler tips (50 HRC hardness), the Ultra Scaler Pro is built for long-lasting performance and consistent results.

Electrical & Performance Parameters

Input Voltage: 230 VAC, 50 Hz

Input Power: 35 VA

Operating Frequency: 18 kHz – 45 kHz

Tip Output Power: 3 W – 20 W

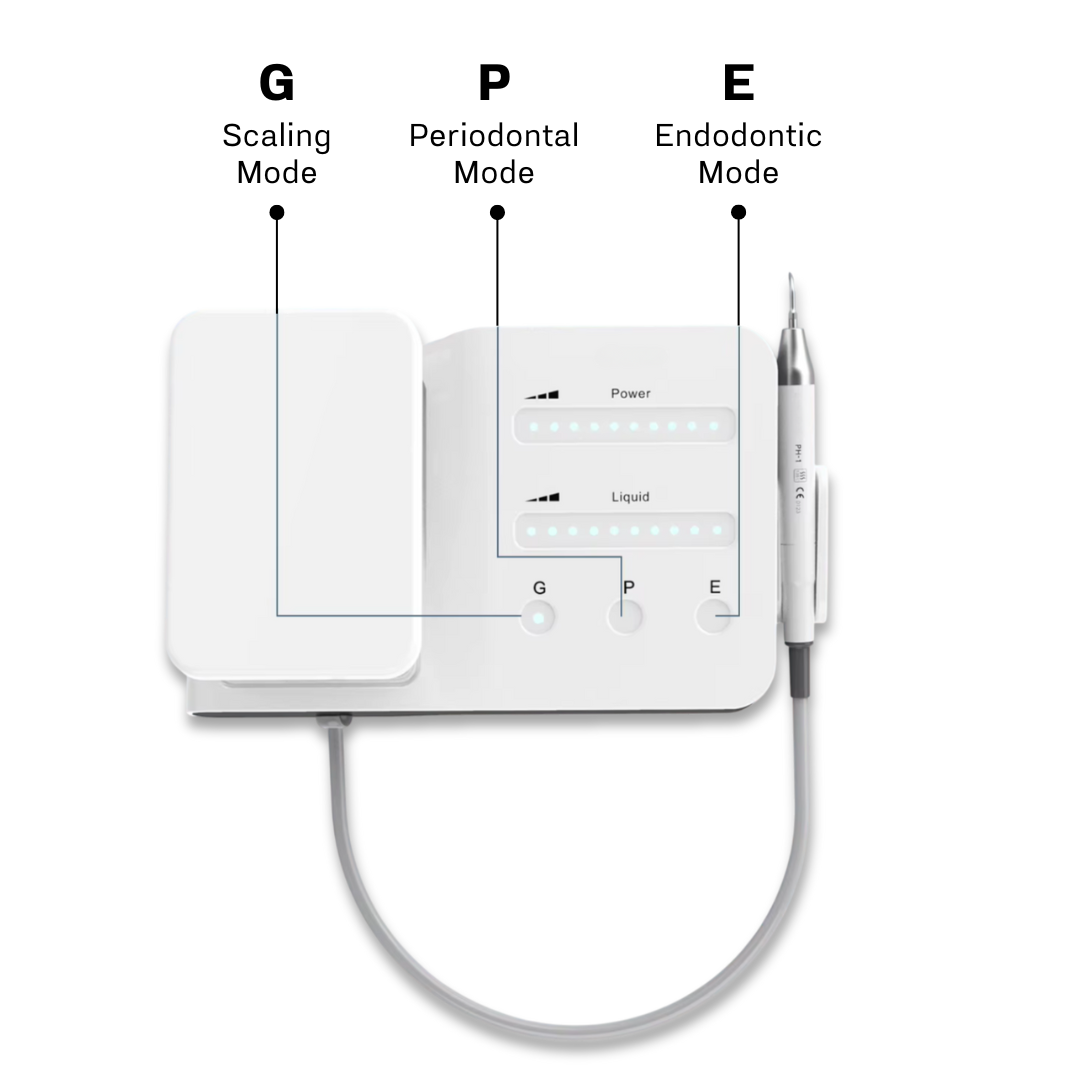

Operating Modes:

G – Scaling

P – Periodontal

E – Endodontic

Power Levels: 10 adjustable levels for customized treatment

Handpiece & Tips

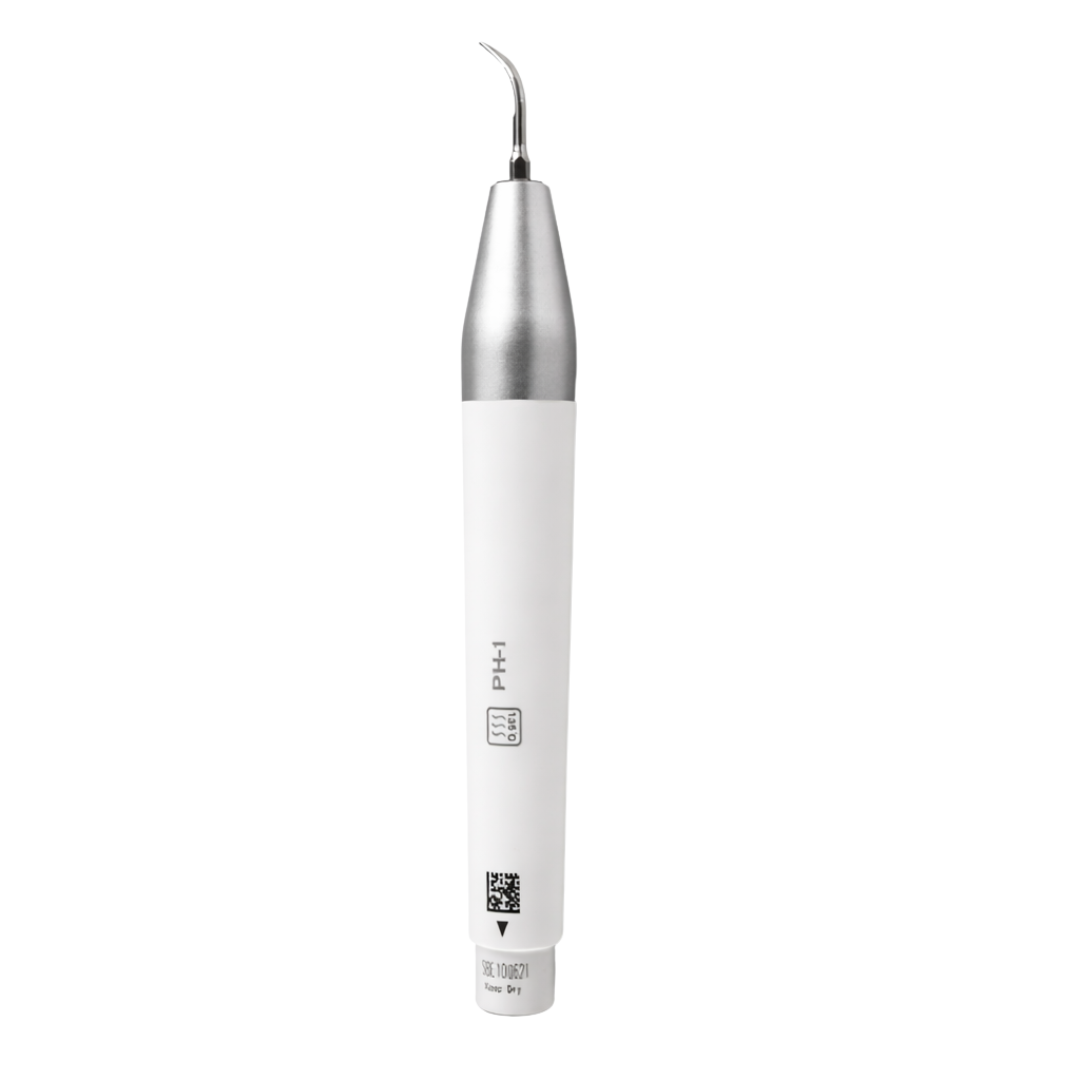

Handpiece: Detachable LED handpiece for enhanced visibility

Scaler Tips Included: 10 tips

Tip Hardness: 50 HRC

Control & Design

Responsive smart touch control panel

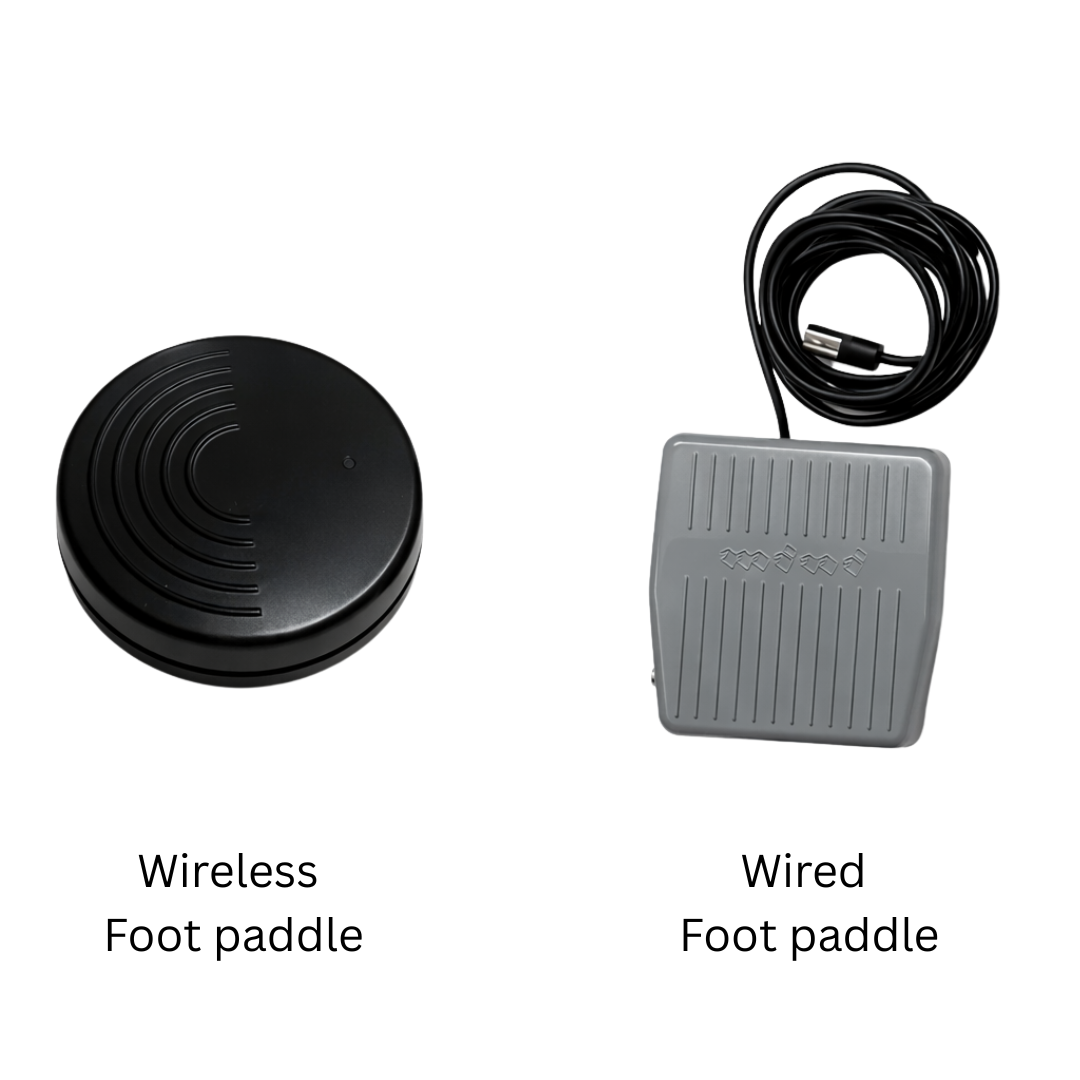

Wireless foot pedal for smooth, cable-free operation

Warranty

1 Year Manufacturer Warranty

1. Preparation

Place the unit on a flat, stable surface.

Connect the main power supply and switch ON the unit.

Fill the water bottle with clean distilled or purified water.

Attach the detachable LED handpiece securely.

Select and tighten the appropriate scaler tip using the provided wrench.

2. Mode Selection

Choose the required operating mode from the control panel:

G Mode: General scaling

P Mode: Periodontal procedures

E Mode: Endodontic applications

3. Power & Water Adjustment

Adjust the power level (1–10) according to the clinical requirement.

Regulate the water flow to ensure adequate cooling and lavage.

4. Operation

Position the scaler tip lightly against the tooth surface.

Activate the unit using the wireless foot pedal.

Use gentle, sweeping strokes and avoid excessive pressure.

Maintain continuous water flow during operation.

5. After Use

Switch OFF the unit and disconnect it from the power supply.

Remove the scaler tip and clean and sterilize it according to standard protocols.

Flush the water line with clean water.

Clean and disinfect the exterior of the handpiece before storage.

6. Sterilization

Sterilize scaler tips and the handpiece (if autoclavable) according to standard dental sterilization guidelines.

Do not autoclave non-sterilizable components.
