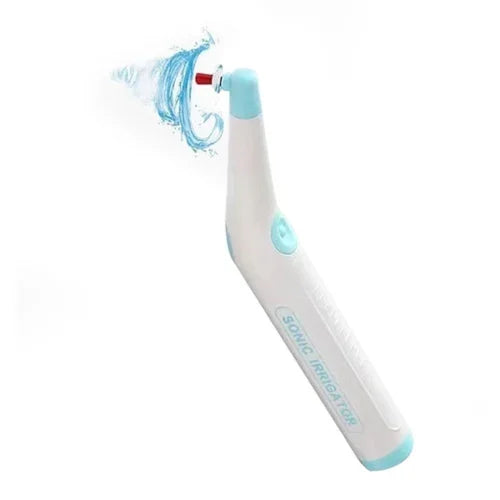

Glin Sonic Activator Pro Led - Endo Sonic Activator

Sonic Activation:
Utilizes sonic energy to enhance cleaning and disinfection within root canals.

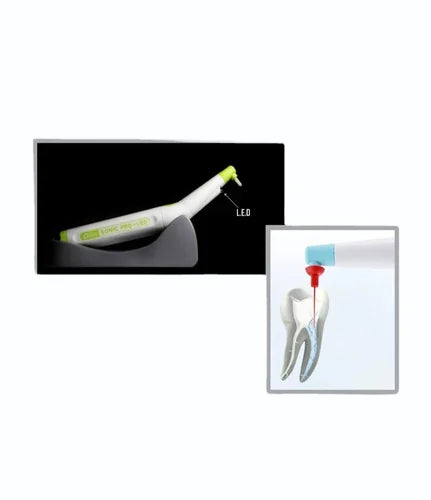

LED Illumination:
Provides improved visibility, aiding in precise treatment.
Three-Speed Sonic Motor Offers customizable settings for varying procedural needs.

Ergonomic Design:
Contra-angled handpiece facilitates easy access to posterior teeth.
Disposable Tips Includes 120 tips (40 small, 40 medium, 40 large) for single-patient use.

Color-Coded Tips:
Simplifies tip selection based on canal size (yellow for small, red for medium, blue for large).
Medical-Grade Material Tips made from strong, flexible polymer composition.
Easy Attachment Tips feature snap-on/snap-off design for quick and secure attachment.

Radiolucent:
Tips do not interfere with radiographic imaging, ensuring clear visualization.
No Apical Extrusion Designed to prevent extrusion of irrigants beyond the apex, minimizing risks.

Battery-Powered:
Includes 1 AA alkaline battery and charging adap

Length : 22mm
Blue 35/04 : Large tips
Red 25/04 : Medium tips
Yellow 15/02 : Small tips

PRECAUTIONS :
The Irrigator tip should be disinfected before use or contamination of the root canal may result.
Proper use of the Sonic Irrigator System is required to prevent harm or hazard to the patient
Improper handling of the Sonic Irrigator handpiece may result in breaking the distal or proximal ends of rocker arm
Irrigator tips and protective barriers are intended for single-patient use only. Cross contamination may occur to the patient if tips and barriers are reused
Proper disposal of Irrigator tips and protective barriers & the battery is required in accordance with local laws and regulations
The handpiece must be repaired as necessary under the direction of the manufacturer
Proper disposal of the handpiece when the handpiece is deemed non-functional is required in accordance with local laws and regulations
Removal of the battery is recommended when the handpiece is not to be used for an extended period of time
The handpiece should be stored away from strong electromagnetic equipment as it may affect handpiece performance
The handpiece should be stored away from portable and mobile RF communications equipment as it affect handpiece performance
The handpiece should not be used adjacent to or stackded with other
equipment. Additionally, it should be checked for normal operating functions on a regular basis.
All endodontic procedures should be carried out with Sonic Irrigator protective barrier sleeve placed over the handpiece

1 x Sonic Irrigator
100 x Protective Sleeves
40 x Sonic Irrigator Tips (Small)
40 x Sonic Irrigator Tips (Medium)
40 x Sonic Irrigator Tips (Large)
1 x Manual
1 x Base

Prepare canal to produce a fully tapered shape

Fill pulp chamber with NaOCI, EDTA, or other final rinse solution
Select the Irrigator tip that manually fits loosely within 2 mm of working length
Place the barrier sleeve over the complete length of the handpiece
Attach the Irrigator tip over the barrier-protected handpiece. The Irrigator should snap on firmly, promoting a secure connection with the handpiece
Place the attached Irrigator tip into the prepared root canal
Depress the ON/OFF switch to activate.
Note: Switch defaults to high speed upon activation. Press the 3-speed switch to select medium speed or low speed.
Use a pumping action to move the handpiece/Irrigator in short 2-3mm vertical strokes
Hydrodynamically agitate the intracanal solution for 30-30 seconds.
Irrigate, then use intracanal suction to eliminate loose debris.
Repeat the above steps for each intracanal irrigant used.

1 year warranty
