Electric Brushless Motor With Tank
Model: Generic

Brand : Smart Dental Innovations

0.0
0 Reviews

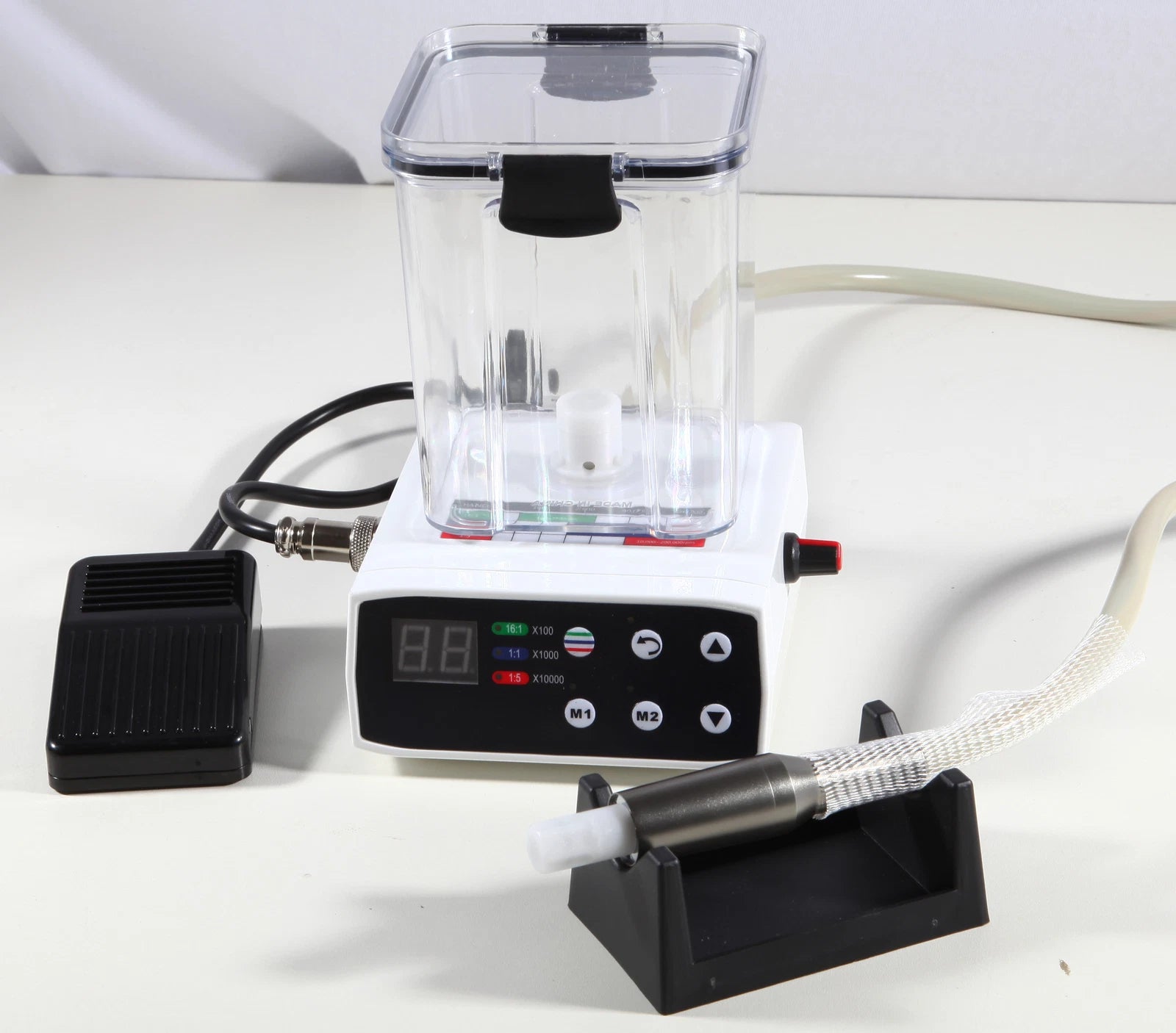

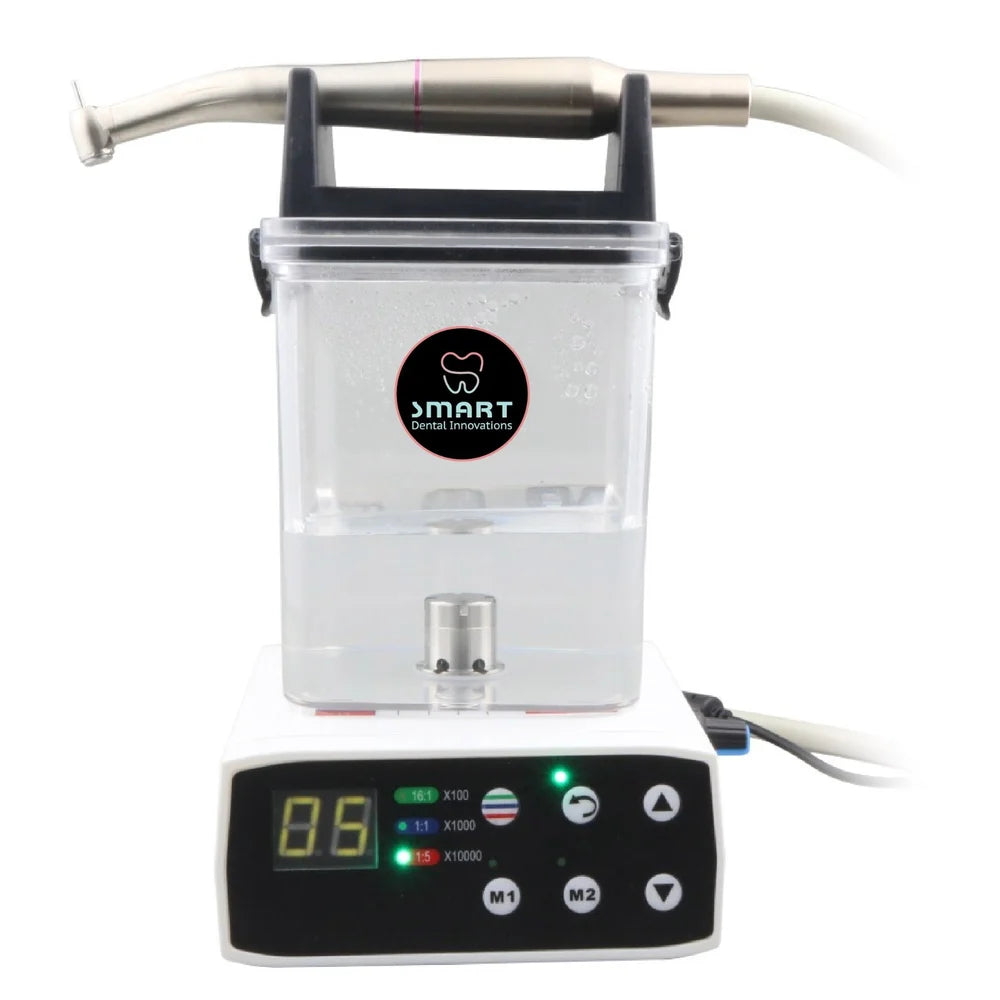

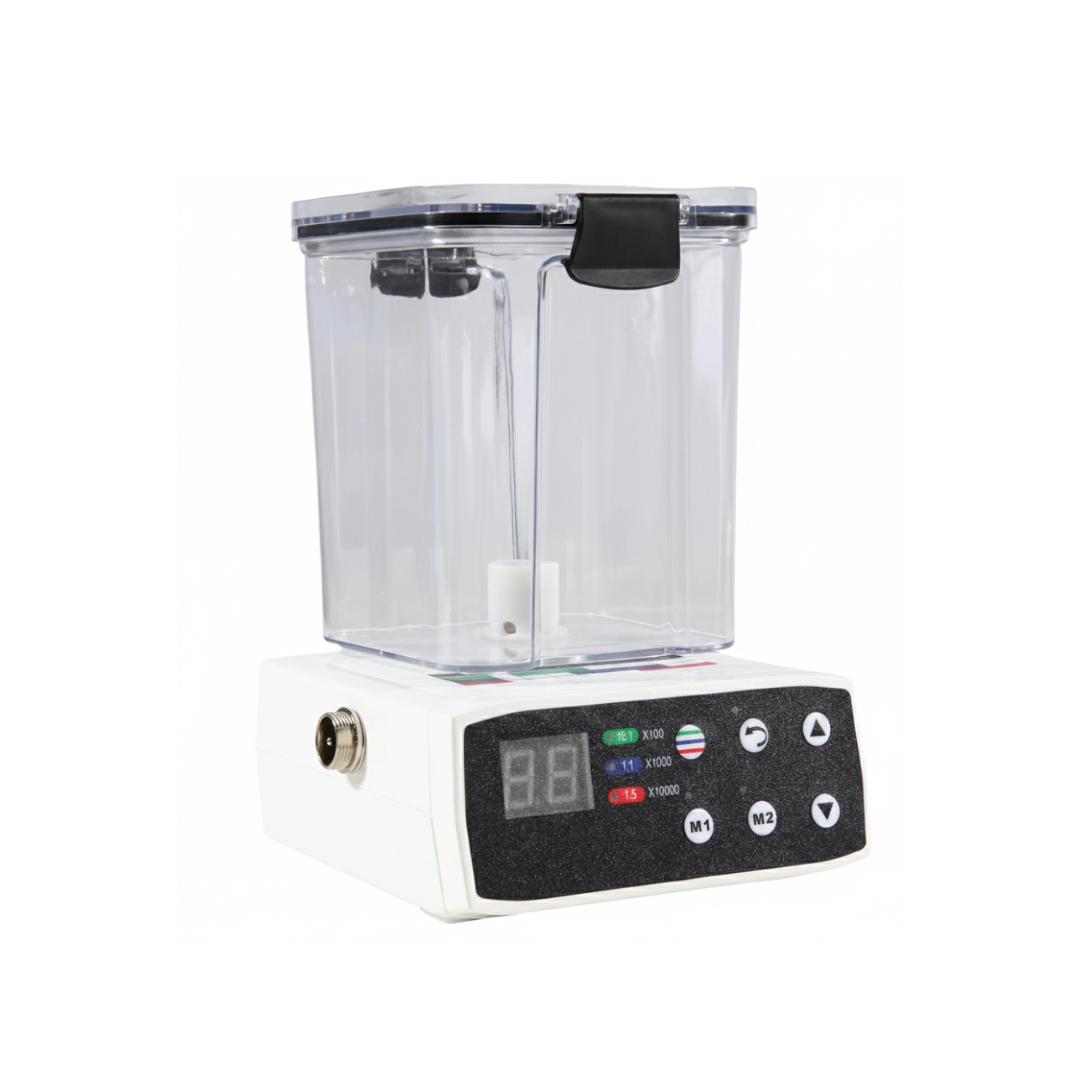

Electric Brushless Motor With Tank is a portable dental motor system featuring an independent 60 ml water supply. Its DC brushless motor, adjustable speed, forward and reverse rotation, and compatible E-Type handpiece connections support controlled rotary work in dental clinics and mobile setups.

Delivery Details
location pin
Product Highlights
  • Use Cases: Suitable for restorative, prosthetic and minor surgical procedures, ideal for clinics, mobile dentistry and setups without chair/compressor dependency.
  • In the Box: Brushless motor handpiece (IMB-250), detachable water tank, fiber-optic adapter, power supply, silicone tubing, user manual, spare seals and wrench.
  • Maintenance & Care: Rinse water tank after each use, clean external surfaces with damp cloth, lubricate per manual schedule, sterilize detachable parts where applicable. Avoid immersing motor body.
  • Warranty & Support: 12-month limited warranty covering manufacturing defects. Technical support and spare parts available through authorized service centers.
  • Key Features: Brushless motor technology for extended life and smooth, vibration-free operation; integrated water tank for continuous irrigation; fiber-optic light support for enhanced visibility.
  • Technical Specifications: Speed range: 1,000–40,000 rpm; multiple gear ratios (16:1, 20:1 options); torque: up to 3.5 N·cm; water tank capacity: 60 ml; input: 24V DC.

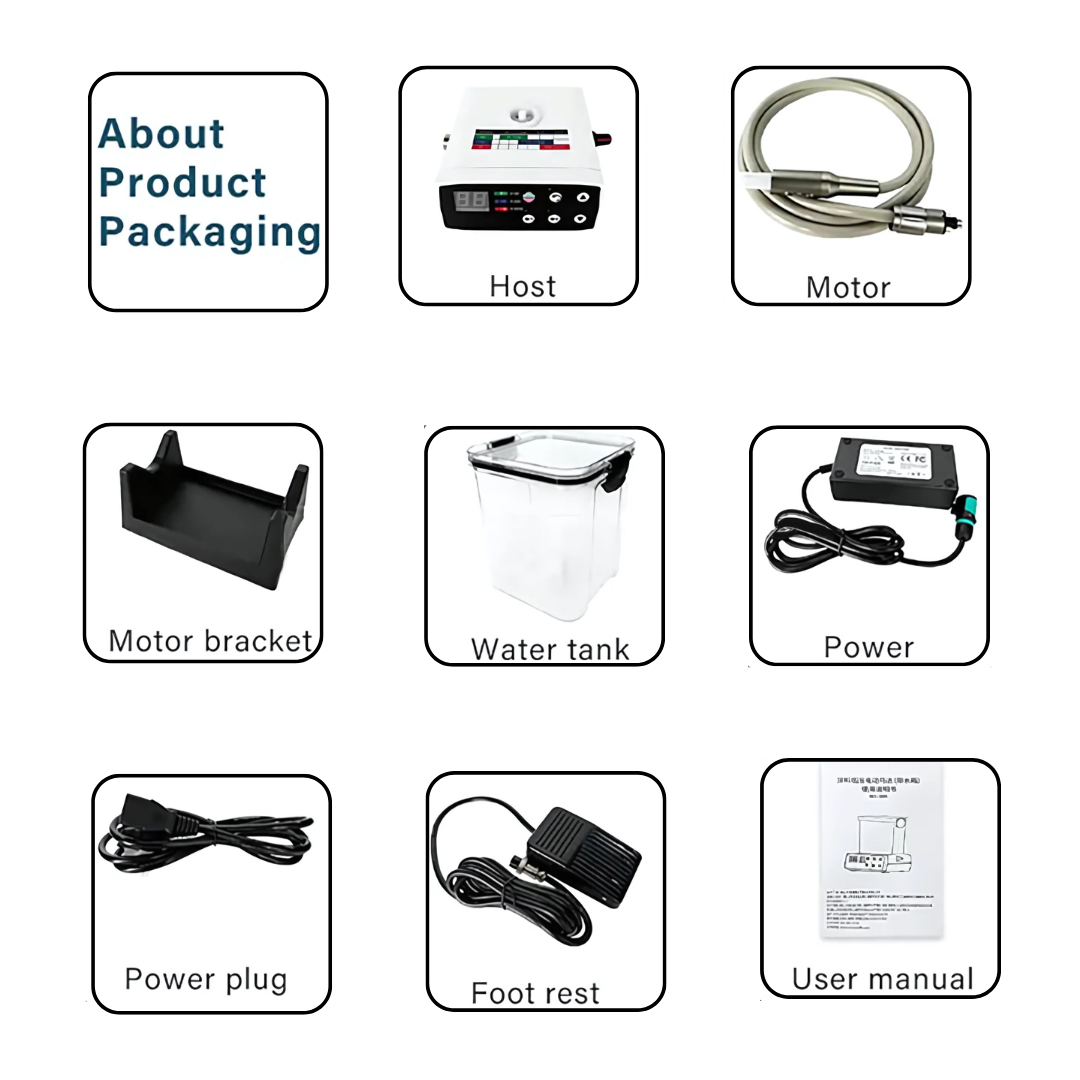

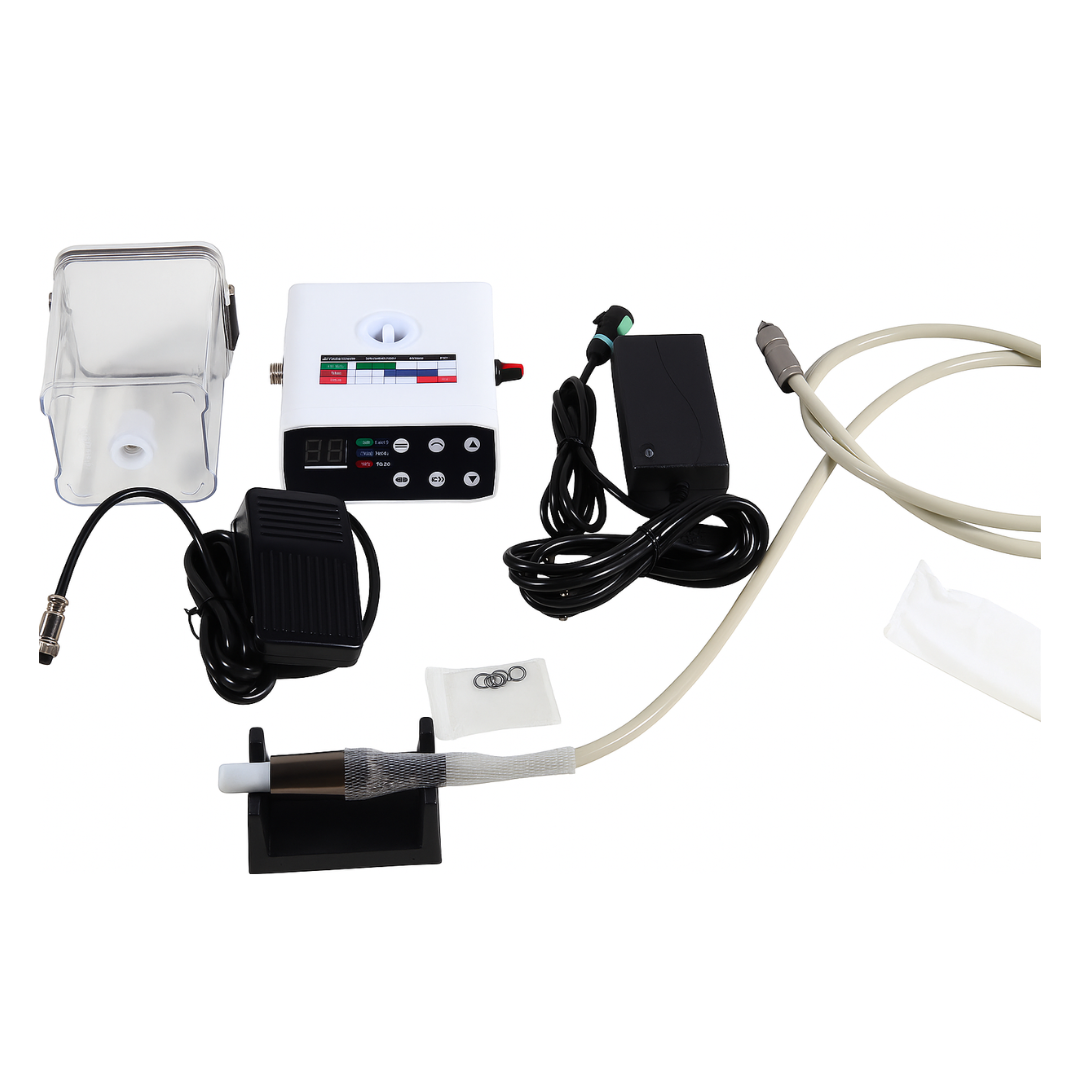

1 x Electric Motor
1 x Controller
1 x Motor Tube
1 x Water Tank
1 x Power Adapter
2 x Sealing Cover
1 x Instruction For Use
1 x Motor Bracket
1 year warranty

This electric brushless motor with tank combines a DC brushless motor with an independent water supply for dental work requiring controlled rotary movement and continuous irrigation. Its portable design allows operation without depending on a dental chair's water connection, making it suitable for clinics, mobile dental units and training centres.

Powered by a high-performance brushless motor, the system operates at speeds between 2,000–40,000 RPM with maximum torque of 3.4 N·cm. Digital controls allow adjustment of speed, rotation direction, gear ratio and water flow. Two programmable memory modes, M1 and M2, make it convenient to switch between preferred settings.

The international E-Type interface supports compatible 1:1, 1:5 and 16:1 handpieces. Its built-in 60 ml water tank supplies irrigation independently, while the fiber-optic light support provides improved visibility when used with a compatible illuminated handpiece.

Low-vibration operation and noise below 60 dB support controlled handling during restorative, polishing, finishing and minimally invasive dental work. This brushless dental motor with water tank also features a compact control system weighing approximately 1.65 kg. Clean the reservoir after use and maintain detachable components according to the manufacturer's instructions.

  • Product Type: Electric brushless dental motor with integrated water tank

  • Motor Technology: High-performance DC brushless motor

  • Speed Range: 2,000–40,000 RPM

  • Maximum Torque: 3.4 N·cm

  • Water Tank Capacity: 60 ml

  • Water Supply: Independent built-in water supply system

  • Water Flow: Adjustable water flow control

  • Handpiece Interface: International E-Type connection

  • Handpiece Compatibility: Supports 1:1, 1:5 and 16:1 E-Type handpieces

  • Rotation Control: Forward and reverse rotation

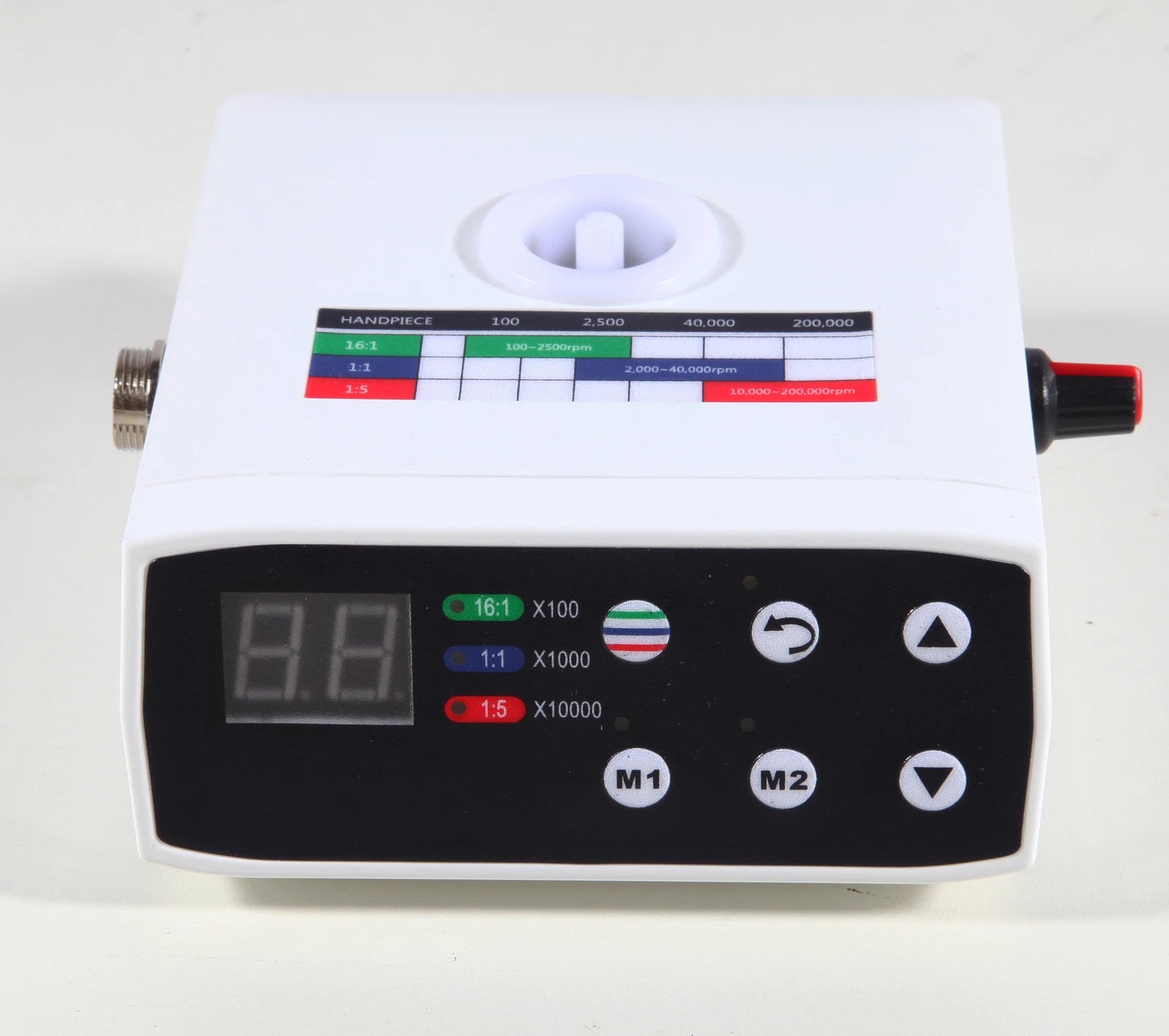

  • Digital Controls: Adjustable speed, rotation direction, gear ratio and water flow

  • Memory Settings: Two programmable modes (M1 and M2)

  • Fiber Optic Support: Fiber-optic light connection for compatible handpieces

  • Noise Level: Below 60 dB

  • Motor Performance: Low-vibration operation with stable torque output

  • Weight: Approximately 1.65 kg

  • Clinical Applications: Restorative, polishing, finishing and minimally invasive dental work

  • Usage Areas: Dental clinics, mobile dental units and dental training centres

  • Package Contents: 1 Electric Motor, 1 Controller, 1 Motor Tube, 1 Water Tank, 1 Power Adapter, 2 Sealing Covers, 1 Instruction Manual and 1 Motor Bracket

  • Warranty: 1 year

    • Operating Instructions:

    • Press the micro motor power switch to start the motor. The display light will turn on when the motor is running.

    • Use the acceleration or deceleration keys to increase or decrease the speed as required.

    • Press the Forward key to rotate in the forward direction; the forward/reverse indicator will illuminate green.

    • Press the Reverse key to rotate in the reverse direction; the forward/reverse indicator will illuminate red.

    • Select the appropriate speed ratio before use.

    Speed Ratio Selection:

    • This product supports three speed ratios: 1:5, 1:1, and 16:1.

    • When a contra-angle head with a specific speed ratio is connected, the speed display window shows the actual head speed.

    • Press the speed ratio selection key to match the connected contra-angle head; the corresponding indicator light will illuminate.

    Smart Dental Innovation Benefits
    SecurePayment
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is the implant electric brushless motor with tank?

    Answer: The implant electric brushless motor with tank is a smart dental innovation designed to provide powerful, smooth, and vibration-free operation for dental procedures without needing a dental chair or compressor.

    question
    How does the brushless motor improve dental procedures?

    Answer: The brushless motor technology ensures extended motor life, consistent torque, and quieter, vibration-free operation which helps in enhancing precision and comfort during dental surgeries.
