The MultiUnit Angled Abutment (Korean D) is a high-precision implant prosthetic component engineered to facilitate multi-implant and full-arch restorations by correcting implant angulation and establishing a unified prosthetic platform. It is an essential component in advanced implant cases where implants are placed at non-parallel angles due to anatomical limitations, bone resorption, or surgical constraints.

Manufactured from premium medical-grade titanium, the MultiUnit Angled Abutment (Korean D) offers exceptional biocompatibility, superior mechanical strength, and excellent resistance to corrosion. Its robust construction ensures long-term durability under functional occlusal loads, making it ideal for both provisional and definitive prosthetic restorations.

The precision-machined implant–abutment interface ensures a secure and stable connection, minimizing micro-gaps and reducing the risk of screw loosening. The angled design enables redirection of the prosthetic axis, improving load distribution and enhancing the esthetic outcome—particularly in full-arch cases such as All-on-4 and All-on-6 treatment concepts.

1. Confirm complete osseointegration of the implant.

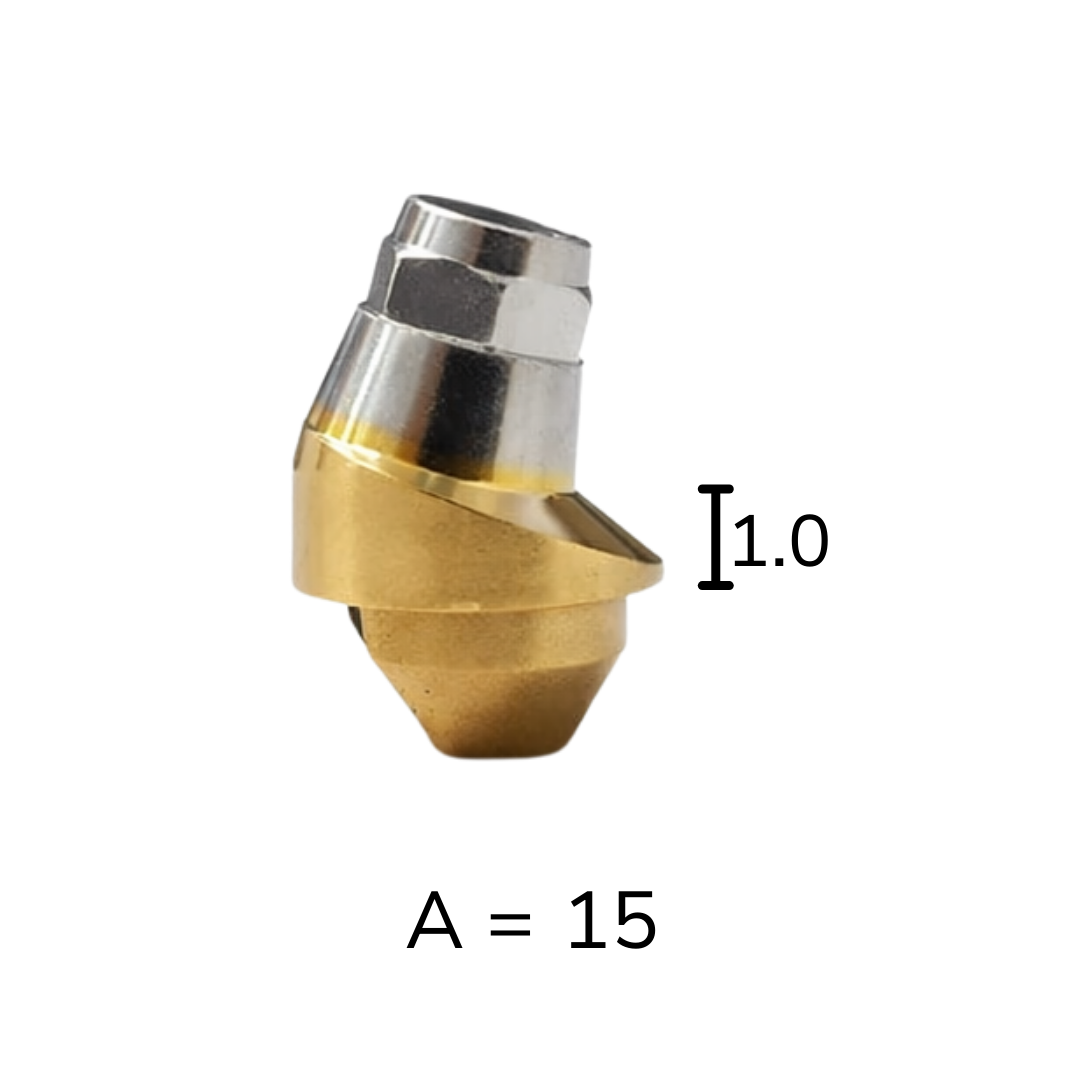

2. Select the appropriate angulation (15° or 30°) and gingival height based on clinical requirements.

3. Clean and dry the implant platform thoroughly.

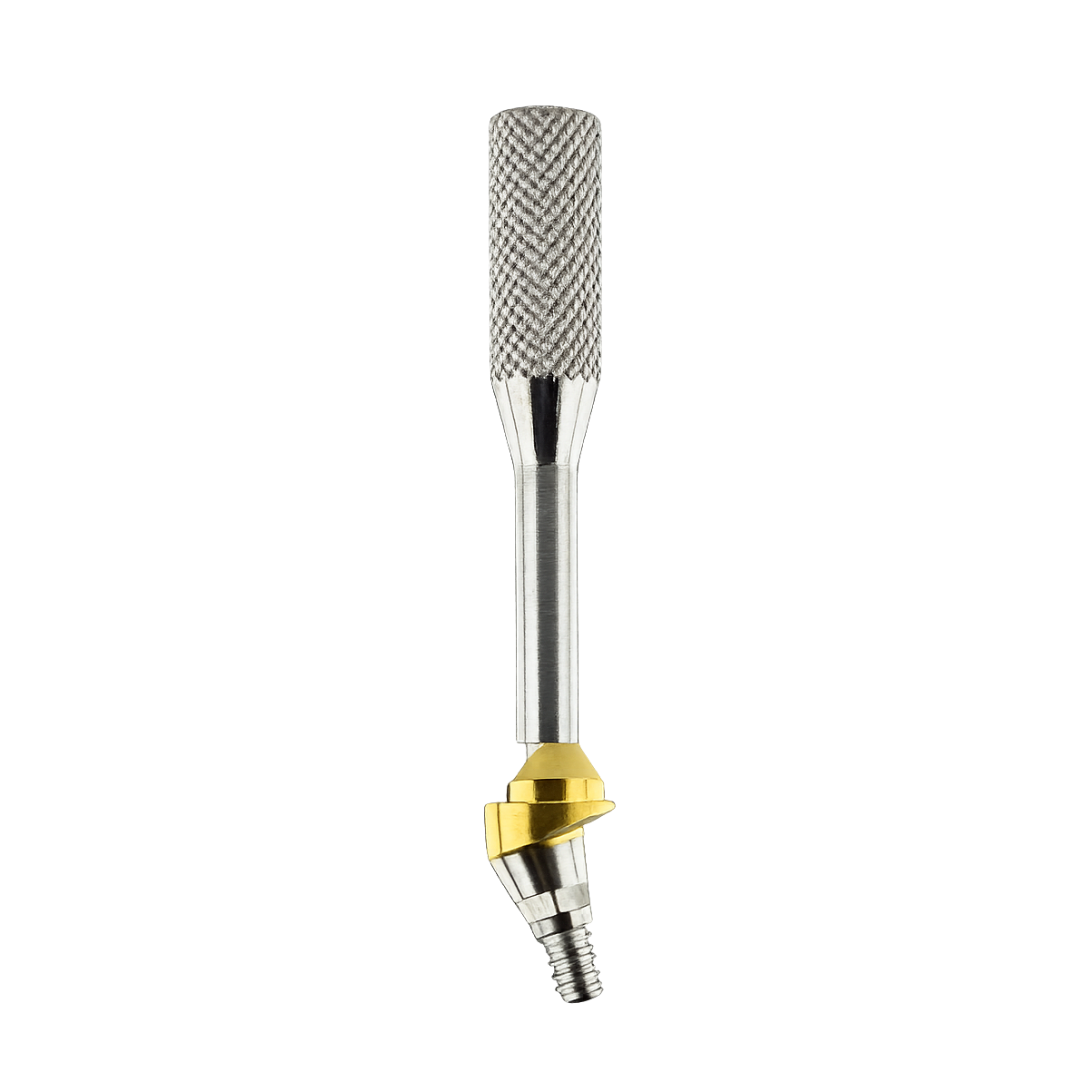

4. Place the MultiUnit Angled Abutment onto the implant connection.

5. Tighten the abutment using a compatible prosthetic driver to the recommended torque.

6. Verify correct seating, orientation, and parallelism.

7. Proceed with impression taking or placement of screw-retained prosthesis.

8. Re-check torque after final prosthetic placement.
