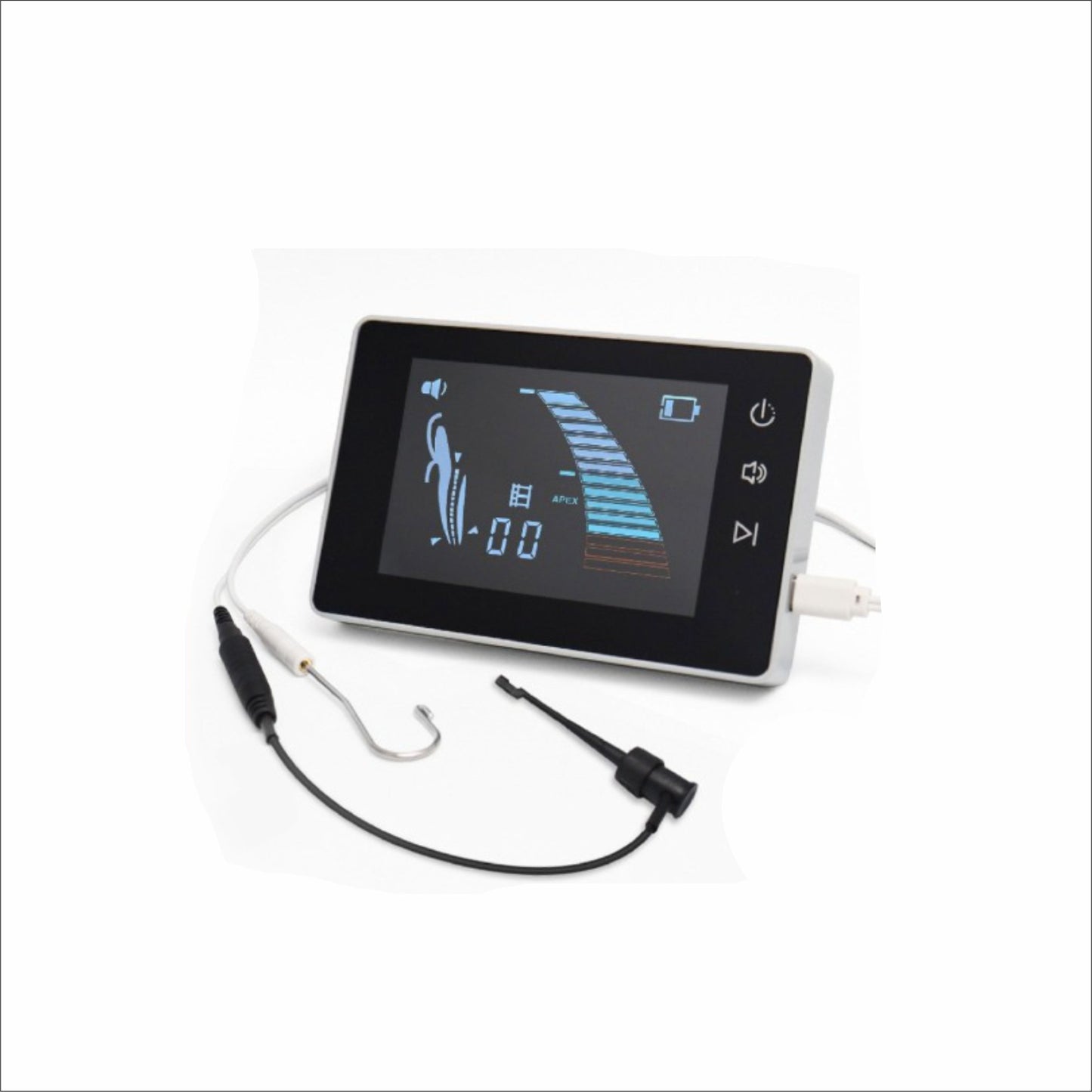

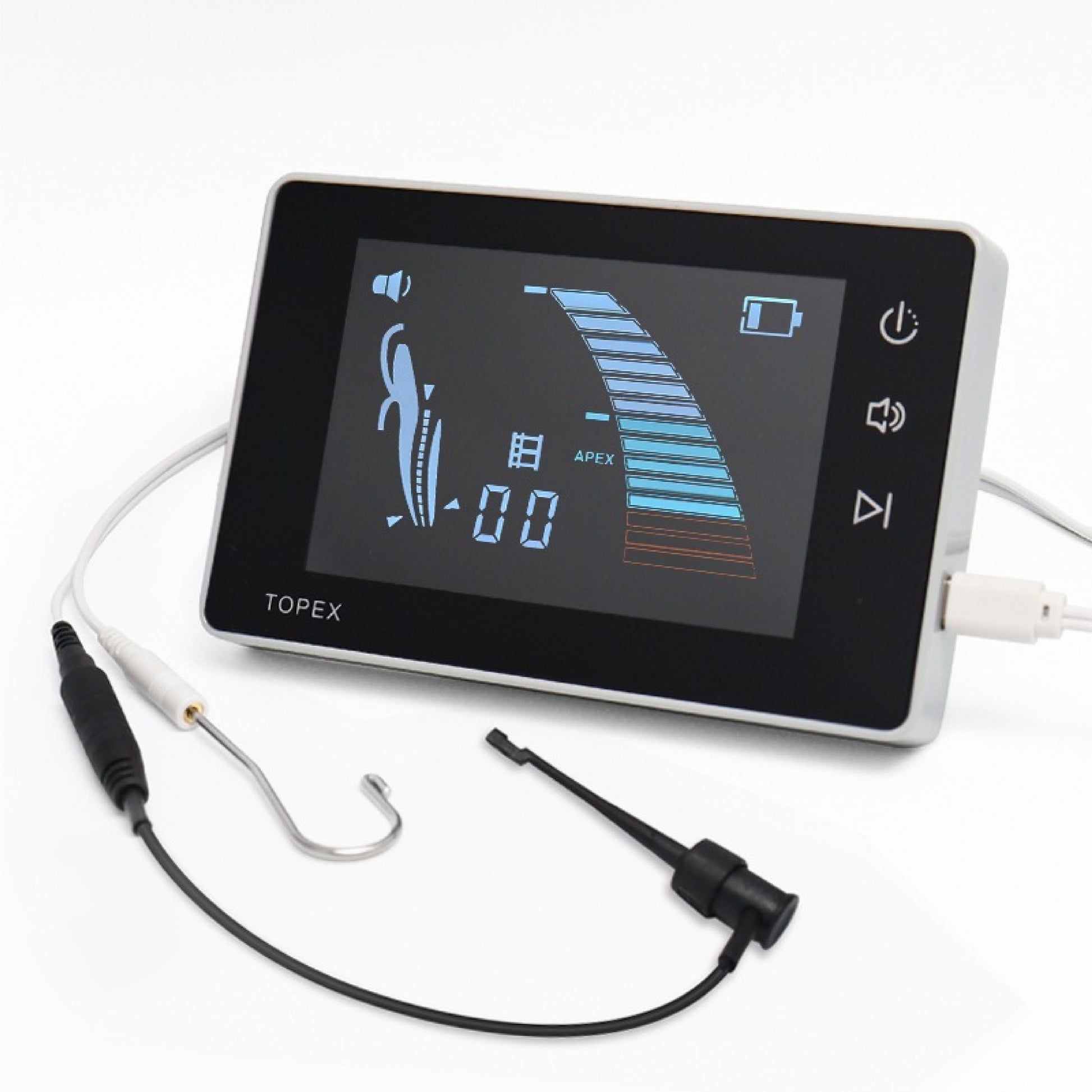

Smart Apex - Apex Locator

Brand : Smart Dental Innovations

0.0
0 Reviews

An “apex locator” used in endodontics (root-canal treatment) to electronically determine the working length of the root canal. — Smart Apex helps dentists accurately locate the apex (tip of the root) without solely depending on radiographs.

Delivery Details
location pin
Product Highlights
  • How to use: Attach the file clip, insert the endodontic file into the canal, advance slowly until the device indicates the apical constriction. Confirm working length and proceed with cleaning and obturation.
  • Key Features: High-precision impedance measurement, multi-frequency detection, audible and visual end-point indicators, compact ergonomic design, rapid response, low battery consumption.
  • Technical Specifications: Accuracy ±0.5 mm, multi-frequency operation, rechargeable Li-ion battery (up to 12 hours continuous use), USB-C charging, LED display, weight 350 g, dimensions 15.0 x 8.0 x 6.5 cm.
  • What's in the Box: Smart Apex unit (Model S1), file clip, lip clip, USB-C charging cable, rechargeable battery (pre-installed), user manual, calibration certificate.
  • Safety & Maintenance: Clean with soft cloth and mild disinfectant. Do not autoclave the main unit. Remove battery before long-term storage. Inspect clips and cables regularly for wear.
  • Warranty & Support: 1-year limited warranty covering manufacturing defects. Technical support and service available through authorized service centers.

SMART APEX is an advanced digital apex locator designed to deliver high-precision working length determination during endodontic procedures. Powered by 6th-generation multi-frequency DSP technology, it ensures consistent accuracy even in the presence of blood, saline, or irrigants.

With its smart touch screen interface, lightweight design, and adjustable viewing angle, SMART APEX offers effortless operation and reliable performance for everyday clinical use.

  • Battery: 3.6 V / 750 mAh (Rechargeable)

  • Main Unit Dimensions: 185 mm × 160 mm × 105 mm

  • Weight (Main Unit): Approx. 385 g

  • Power Input: 100–240 V AC, 50/60 Hz, Max. 0.4 A

  • Power Output: 5 V ⎓ 1 A

  • Display: Clear LCD Screen (Approx. 4.5″ display on similar models)

  • Display Functions:

    • Real-time file position

    • Canal trajectory visualization

    1. Switch on the device.

    2. Connect the lip hook securely to the patient’s lip.

    3. Attach the file clip to the endodontic file.

    4. Slowly insert the file into the root canal.

    5. Monitor the digital display / LED indicators as the file advances.

    6. Stop instrumentation when the display indicates APEX / 0.0 or the desired working position.

    7. Adjust and confirm the working length as required.

    1 x USB Line
    1 x Measuring Wire
    2 x File Clip
    2 x Lip Hook
    2 x Touch Probe
    1 x Calibrator
    6 Month Warranty
    Smart Dental Innovation Benefits
    SecurePayment
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is smart apex - apex locator?

    Answer: Smart apex is a dental instrument that measures electrical impedance between the endodontic file and surrounding tissues to precisely determine the root-canal apex, ensuring correct working length for effective root canal treatment.

    question
    How does the smart apex work?

    Answer: It uses multi-frequency impedance measurement technology to detect the position of the endodontic file inside the root canal, providing accurate feedback through audible and visual indicators to guide the clinician.

    Smart Apex - Apex Locator

    Brand : Smart Dental Innovations

    0.0
    0 Reviews

    An “apex locator” used in endodontics (root-canal treatment) to electronically determine the working length of the root canal. — Smart Apex helps dentists accurately locate the apex (tip of the root) without solely depending on radiographs.

    Delivery Details
    location pin
    Product Highlights
    • How to use: Attach the file clip, insert the endodontic file into the canal, advance slowly until the device indicates the apical constriction. Confirm working length and proceed with cleaning and obturation.
    • Key Features: High-precision impedance measurement, multi-frequency detection, audible and visual end-point indicators, compact ergonomic design, rapid response, low battery consumption.
    • Technical Specifications: Accuracy ±0.5 mm, multi-frequency operation, rechargeable Li-ion battery (up to 12 hours continuous use), USB-C charging, LED display, weight 350 g, dimensions 15.0 x 8.0 x 6.5 cm.
    • What's in the Box: Smart Apex unit (Model S1), file clip, lip clip, USB-C charging cable, rechargeable battery (pre-installed), user manual, calibration certificate.
    • Safety & Maintenance: Clean with soft cloth and mild disinfectant. Do not autoclave the main unit. Remove battery before long-term storage. Inspect clips and cables regularly for wear.
    • Warranty & Support: 1-year limited warranty covering manufacturing defects. Technical support and service available through authorized service centers.

    SMART APEX is an advanced digital apex locator designed to deliver high-precision working length determination during endodontic procedures. Powered by 6th-generation multi-frequency DSP technology, it ensures consistent accuracy even in the presence of blood, saline, or irrigants.

    With its smart touch screen interface, lightweight design, and adjustable viewing angle, SMART APEX offers effortless operation and reliable performance for everyday clinical use.

  • Battery: 3.6 V / 750 mAh (Rechargeable)

  • Main Unit Dimensions: 185 mm × 160 mm × 105 mm

  • Weight (Main Unit): Approx. 385 g

  • Power Input: 100–240 V AC, 50/60 Hz, Max. 0.4 A

  • Power Output: 5 V ⎓ 1 A

  • Display: Clear LCD Screen (Approx. 4.5″ display on similar models)

  • Display Functions:

    • Real-time file position

    • Canal trajectory visualization

    1. Switch on the device.

    2. Connect the lip hook securely to the patient’s lip.

    3. Attach the file clip to the endodontic file.

    4. Slowly insert the file into the root canal.

    5. Monitor the digital display / LED indicators as the file advances.

    6. Stop instrumentation when the display indicates APEX / 0.0 or the desired working position.

    7. Adjust and confirm the working length as required.

    1 x USB Line
    1 x Measuring Wire
    2 x File Clip
    2 x Lip Hook
    2 x Touch Probe
    1 x Calibrator
    6 Month Warranty
    Smart Dental Innovation Benefits
    SecurePayment
    Hassle FreeCancellation*
    7 DaysReplacement*
    100%Genuine
    COD
    Net Banking
    Partial Payment
    Credit / Debit cards

    Would you like to tell us about the product?

    Want to buy even more quantity ?
    FAQs
    question
    What is smart apex - apex locator?

    Answer: Smart apex is a dental instrument that measures electrical impedance between the endodontic file and surrounding tissues to precisely determine the root-canal apex, ensuring correct working length for effective root canal treatment.

    question
    How does the smart apex work?

    Answer: It uses multi-frequency impedance measurement technology to detect the position of the endodontic file inside the root canal, providing accurate feedback through audible and visual indicators to guide the clinician.

    Related Products
    a
    I Diamond Burs, SI 47

    variant available from

    ₹500

    ₹380

    24% OFF

    a

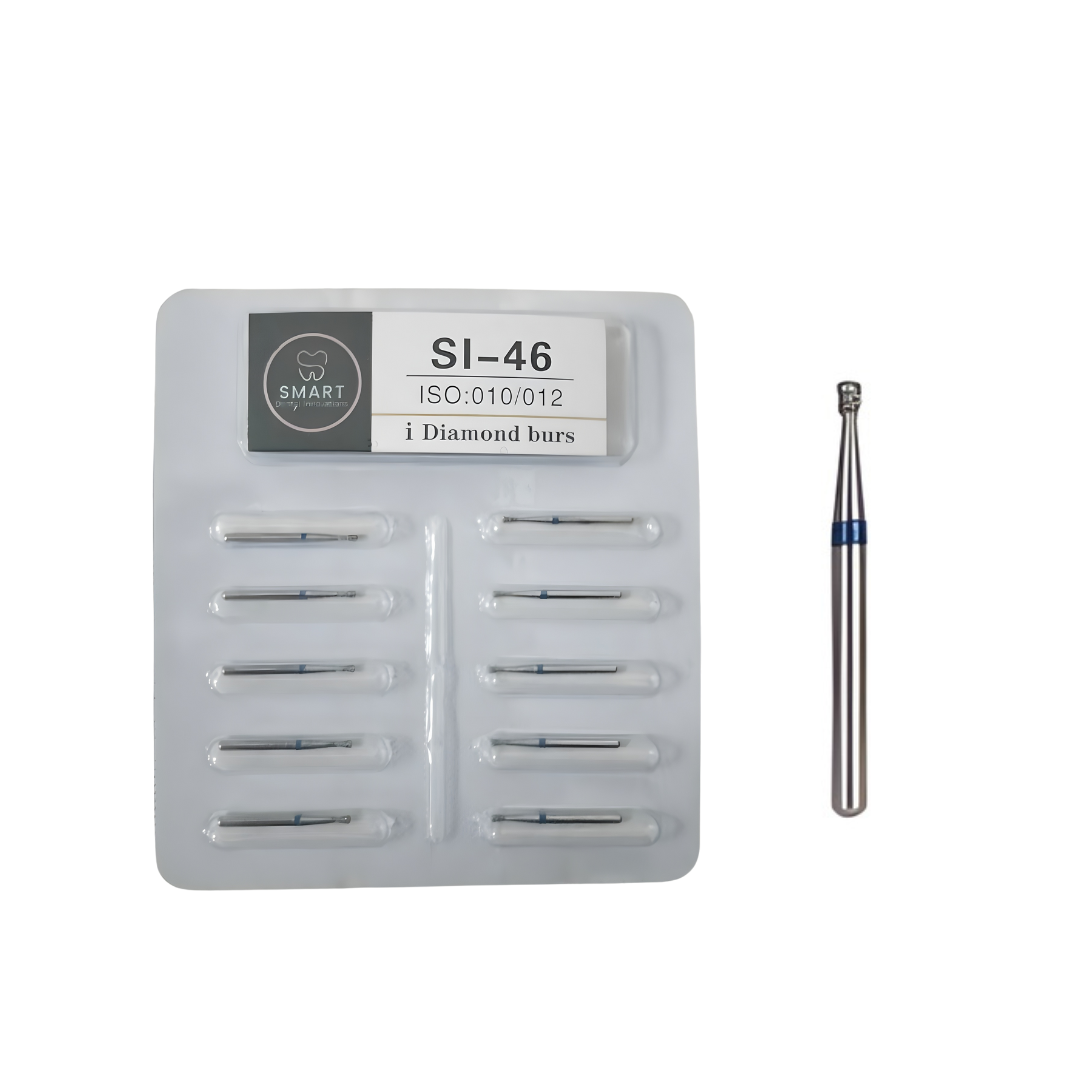

    I Diamond Burs, SI 46

    variant available from

    ₹500

    ₹380

    24% OFF

    5.0

    |

    1

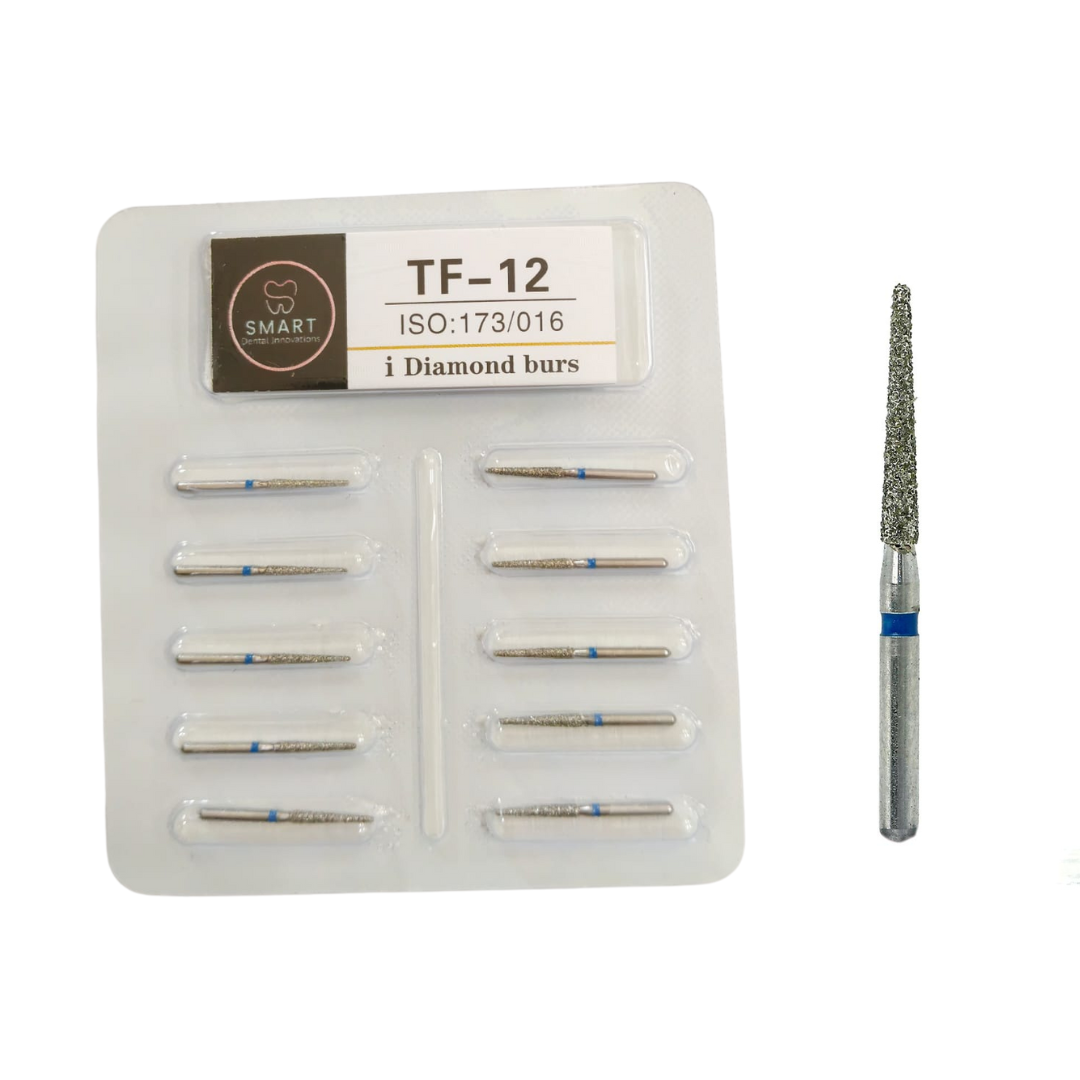

    I Diamond Burs, TF 12

    variant available from

    ₹500

    ₹380

    24% OFF

    a
    Endo Z Bur, 28 mm

    variant available from

    ₹250

    ₹200

    20% OFF

    a

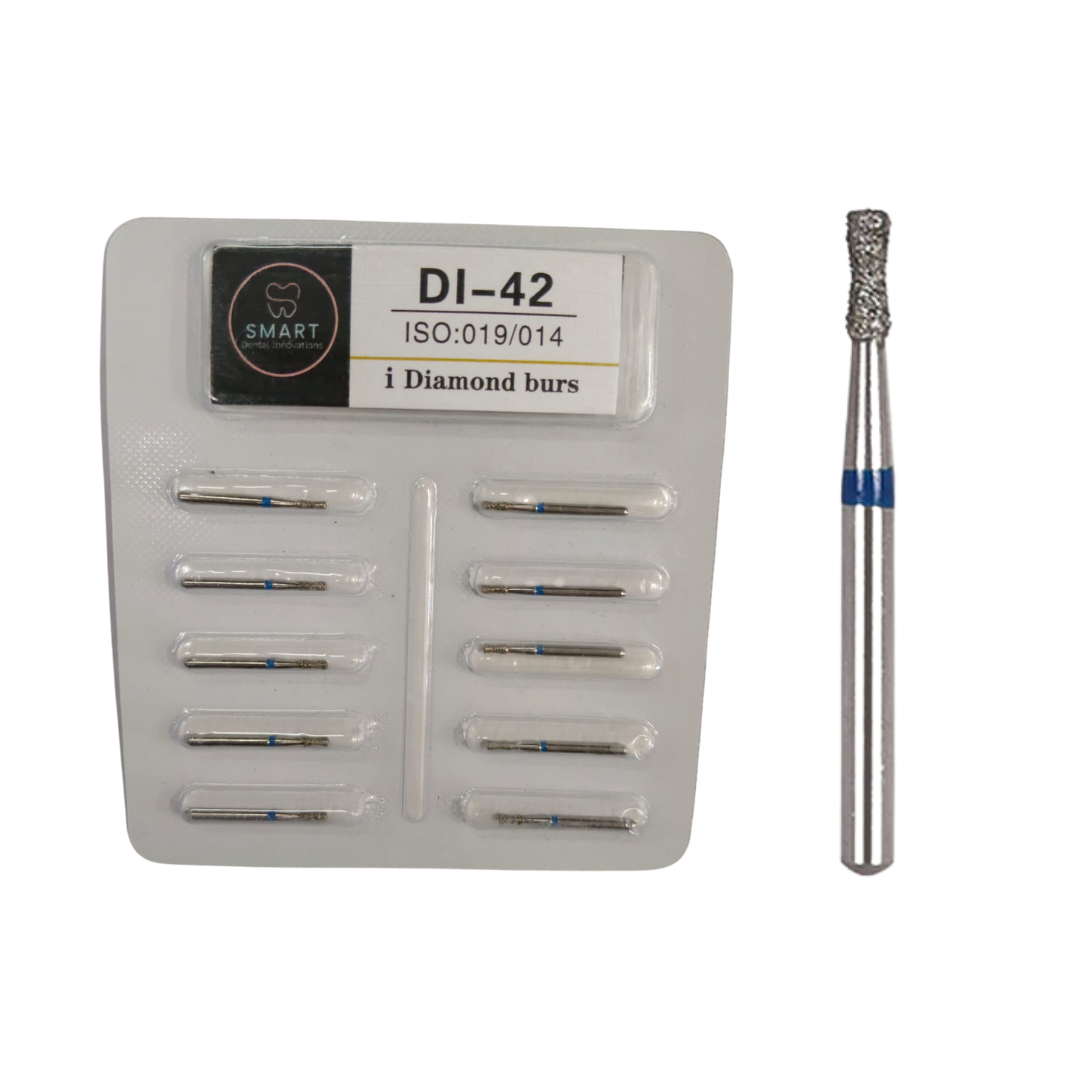

    I Diamond Burs, DI 42
