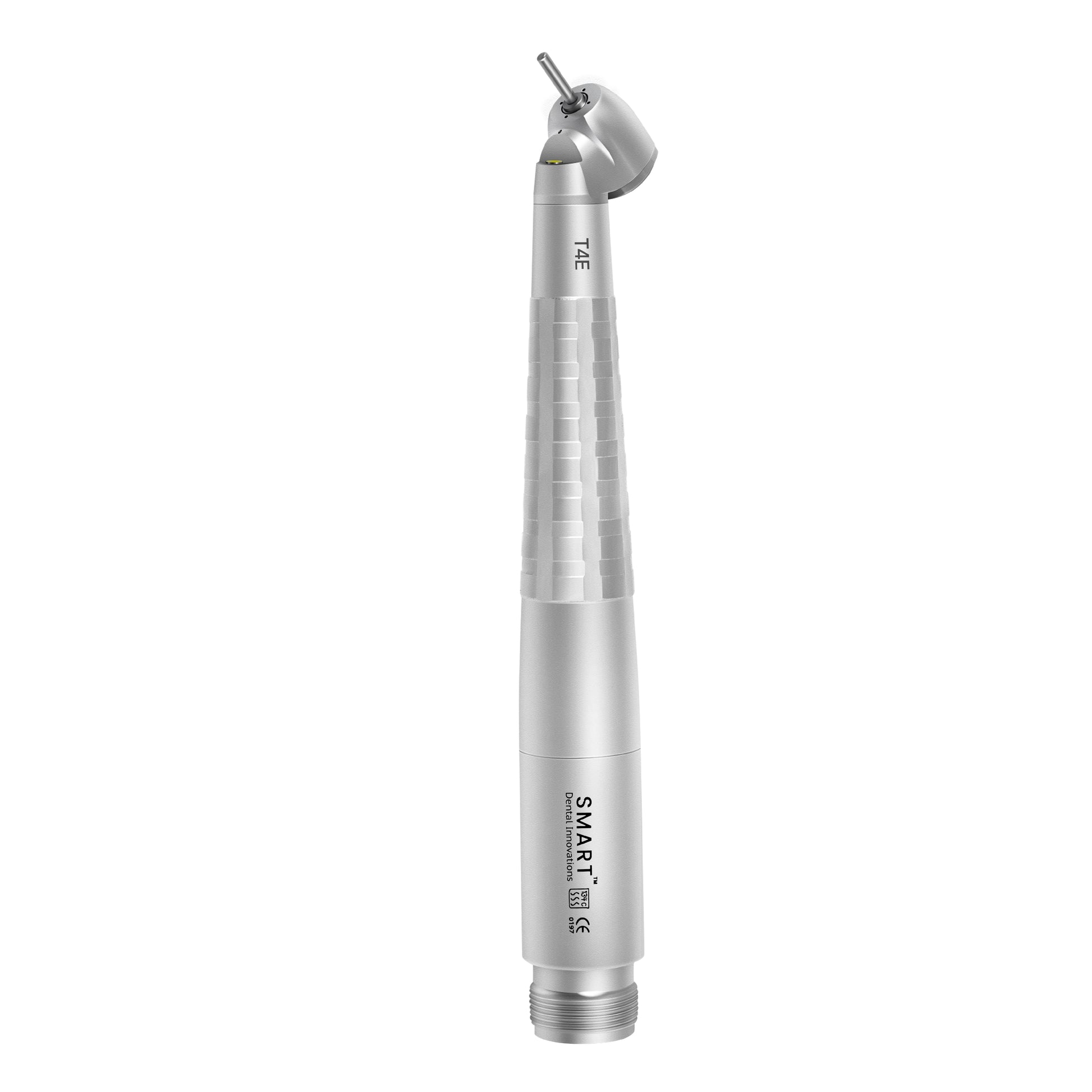

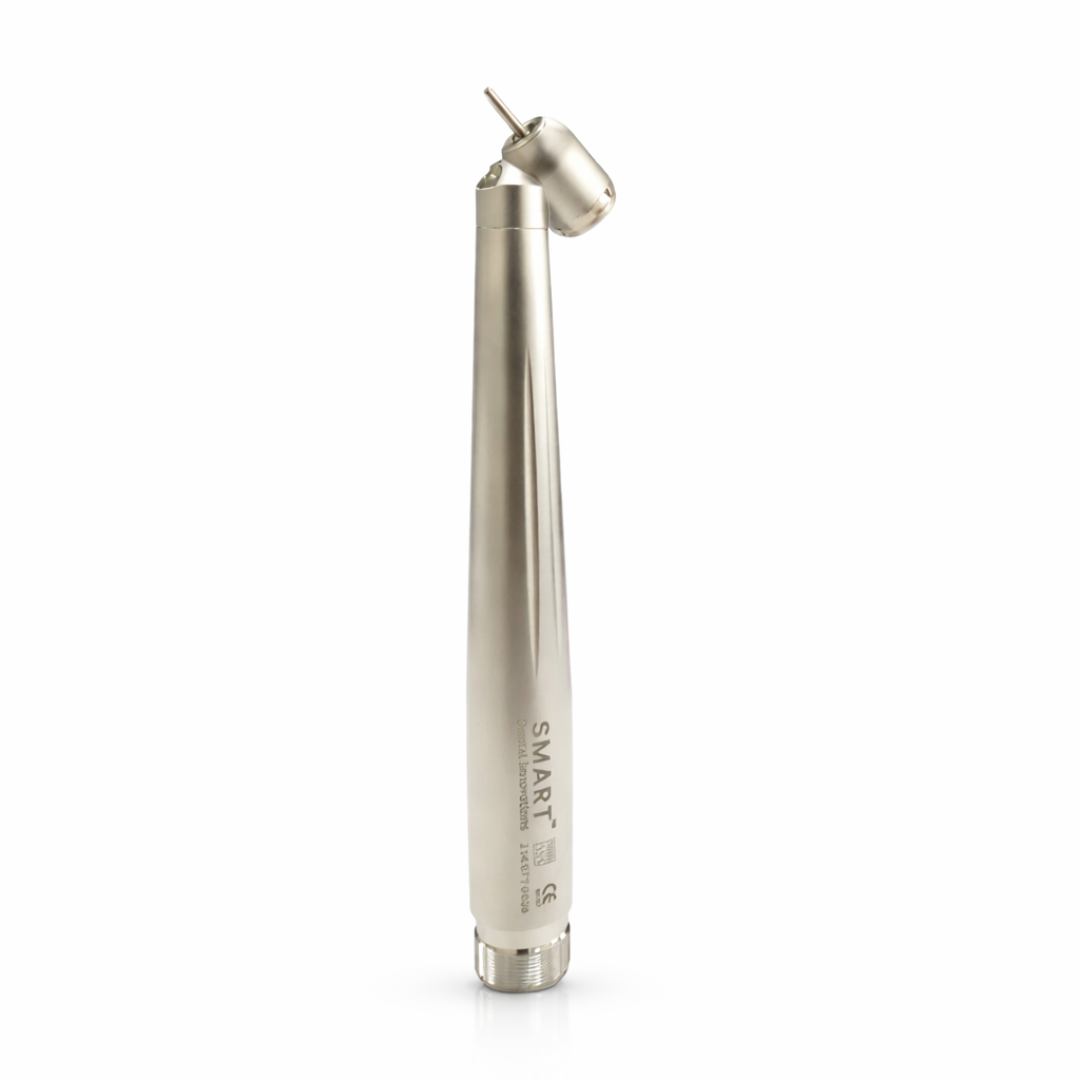

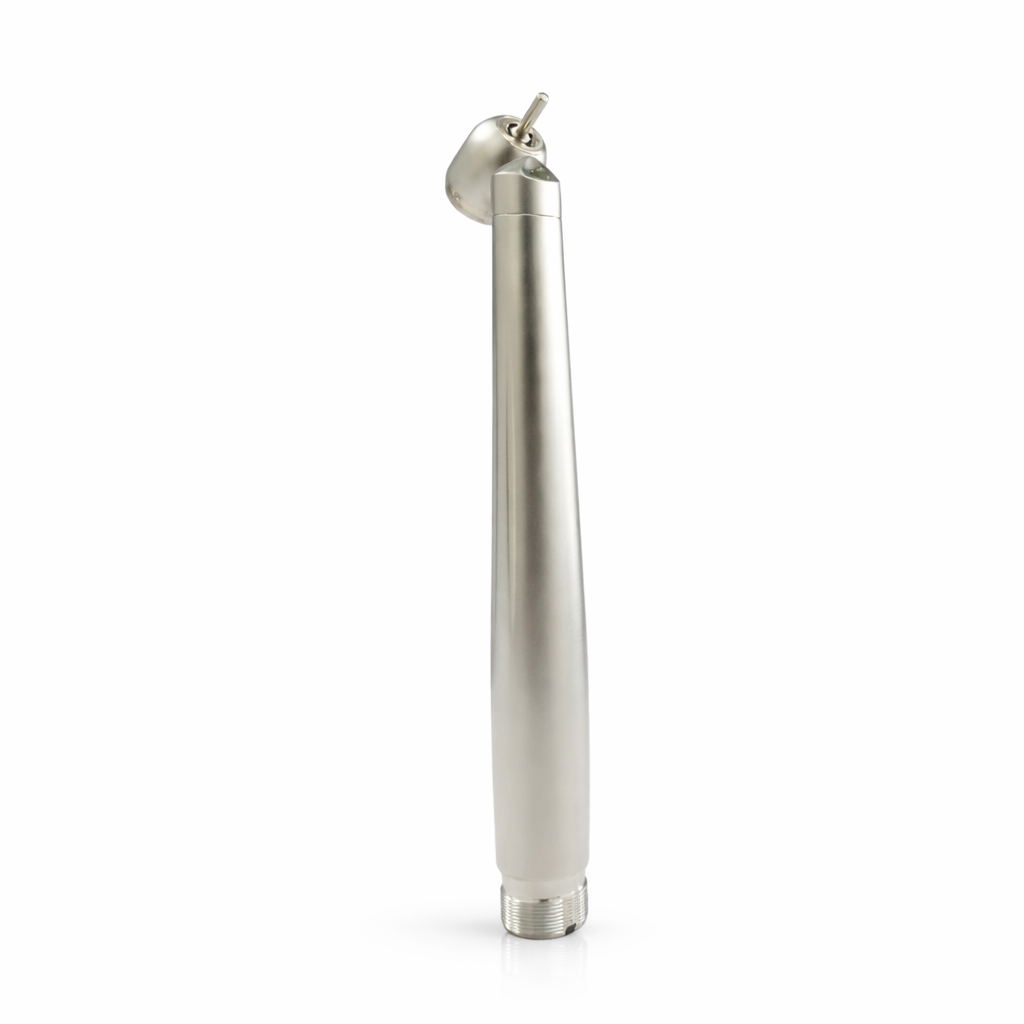

Surgical 45 Degree Led Handpiece

Brand : Smart Dental Innovations

0.0
0 Reviews

Compact, high-torque 45° surgical handpiece with integrated cool-white LED illumination and ergonomic 45° head for excellent visibility and access in implant and oral-surgery procedures. Autoclavable, low-vibration design for reliable clinical performance

Delivery Details
location pin
Product Highlights
  • Material: Brass body with corrosion-resistant finish for durability.
  • Brand: Smart Dental Innovation
  • Usage/Application: Designed for dental surgical procedures and precision cutting.
  • Type: High Speed surgical handpiece with 45° angled head.
  • Bur Material Compatibility: Compatible with diamond burs for fine cutting and preparation.
  • ISO Certification: ISO Certified to meet dental instrumentation quality standards.
  • Color: Silver (polished finish)
  • Integrated LED: Bright, cool LED illumination for enhanced surgical site visibility.
  • Sterilization: Autoclavable following manufacturer's recommended cycle parameters.
  • Recommended RPM: Optimized for high-speed operation; refer to supplier specs for exact RPM range.
  • Features: 45° angled head for improved access, smooth torque delivery, minimal vibration.
  • Warranty: Manufacturer warranty included; contact vendor for terms and registration.
The Surgical 45 Degree LED Handpiece is a specialized high-precision surgical dental handpiece designed to provide enhanced access, superior visibility, and safe cutting performance in complex oral and maxillofacial surgical procedures. With its unique 45-degree angled head and integrated LED illumination, this handpiece allows clinicians to work efficiently in areas where standard straight handpieces or conventional airotors cannot reach.

The 45-degree angulation significantly improves access to posterior and difficult-to-reach surgical sites, making it especially effective for surgical disimpaction, tooth sectioning, bone guttering, socket shield procedures, ridge contouring, and alveoloplasty. It is also highly beneficial in OSMF cases and other conditions with restricted mouth opening, where conventional instruments are limited.

Integrated high-intensity LED lighting provides bright, shadow-free illumination directly at the operating field, improving visibility and precision during surgical procedures. This enhanced visual clarity supports accurate cutting, reduces procedural errors, and increases overall surgical confidence, particularly in deep or narrow operative areas.

A key safety feature of this handpiece is its separate water-air outlet system, designed specifically for surgical use. Water is delivered in a continuous droplet form rather than a high-pressure spray, ensuring effective cooling without excessive air propulsion. At the same time, air is released only from the push button and coupling side, not from the bur tip. This design significantly reduces the risk of air embolism, making the handpiece safer for invasive surgical procedures involving bone and soft tissue.

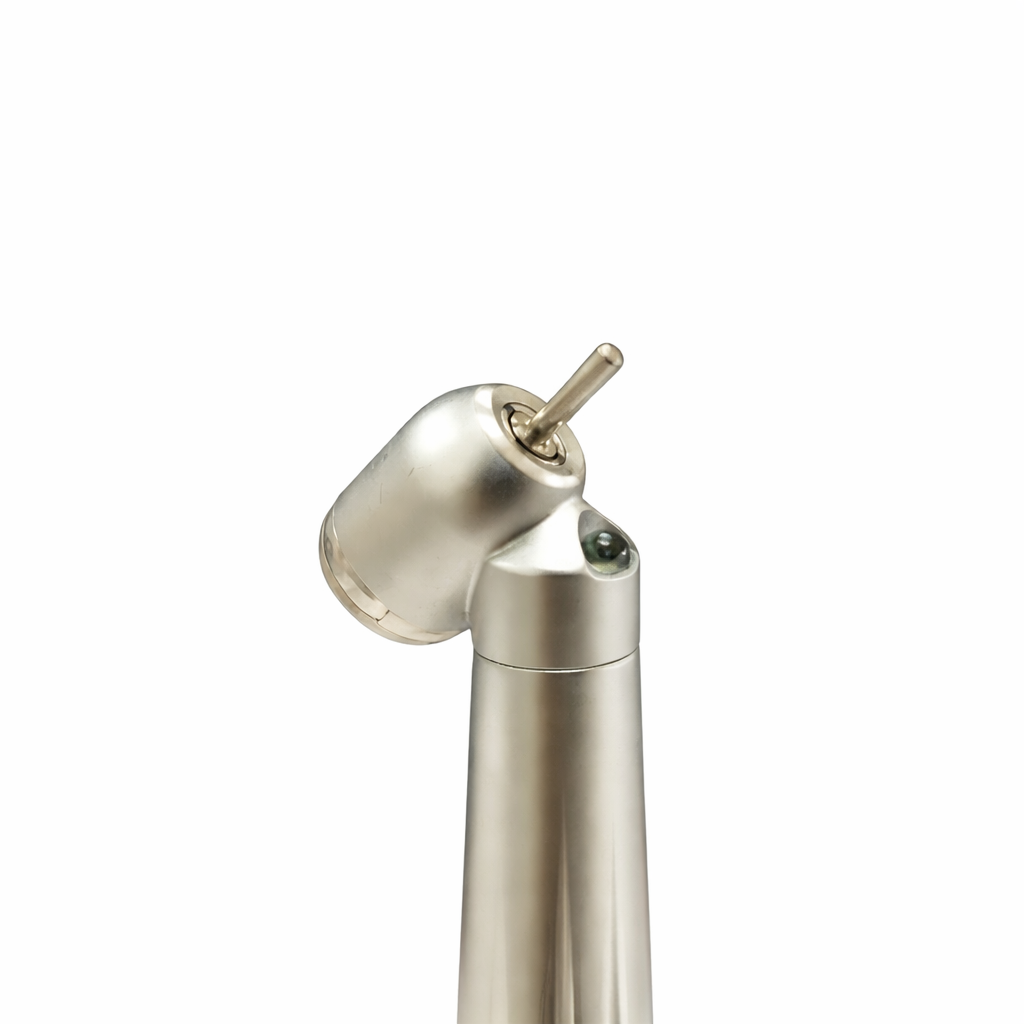

Head Design

Head Angle: 45° (Fixed)

Optimized for enhanced access to posterior regions and deep surgical sites.

Illumination System

Lighting: Integrated high-intensity LED, cool-white illumination

Color Temperature: Daylight range ~5000–6000 K

Beam Focus: Concentrated light directed at the bur tip for precise visualization

Thermal Safety: High lumen output with non-heating performance at the bur tip

Drive Mechanism

Drive Type: Low-speed, high-torque surgical drive

Specifically engineered for surgical burs and implant drills.

Chuck System

Chuck Type: Push-button / quick-release

Compatibility: Designed for surgical burs

Optional Variant: Latch-type chuck available on request

Bearings

Bearing Type: Precision ceramic bearings

Ensures low vibration, smooth rotation, and extended service life.

Construction

Body Material: Medical-grade stainless steel

Optional Upgrade: Titanium body available for reduced weight and enhanced durability

Sterilization

Sterilization Method: Fully autoclavable

Validation: Compatible with standard sterilization cycles

(e.g., 134 °C for 18 minutes)

Follow manufacturer-recommended sterilization protocols

1. Pre-Use Preparation

Clean, lubricate, and sterilize the handpiece before every procedure.

Attach the handpiece securely to the E-type motor and ensure firm locking.

Insert the compatible 45° surgical FG bur fully into the chuck until properly seated.

2. Operation

Adjust the motor to the recommended speed and strictly follow the manufacturer’s RPM limits.

Maintain steady irrigation for effective cooling (external or internal, depending on the model).

Apply light, controlled pressure during cutting to prevent overheating and bur wear.

Keep the LED window clean to ensure optimal illumination throughout the procedure.

1 x Surgical 45 Degree Led Handpiece
6 Month Warranty
Smart Dental Innovation Benefits
SecurePayment
Hassle FreeCancellation*
7 DaysReplacement*
100%Genuine
COD
Net Banking
Partial Payment
Credit / Debit cards

Would you like to tell us about the product?

Want to buy even more quantity ?
FAQs
question
What material is used in the surgical 45 degree led handpiece?

Answer: The handpiece is made from brass with a corrosion-resistant finish for enhanced durability and long life.

question
How does the led light enhance the performance of the handpiece?

Answer: The integrated led provides bright, cool illumination that ensures clear and shadow-free visibility of the surgical site during procedures.
