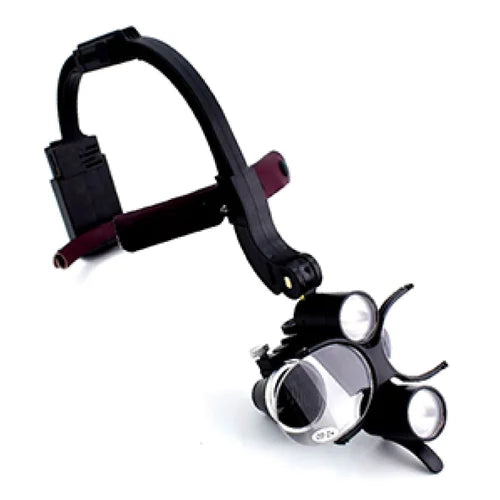

Younismart dental loupe & light

The YOUNISMART Dental Loupe & Light is an advanced magnification and illumination system designed to enhance clinical precision and comfort for dental professionals. Equipped with dual magnification options and a shadowless dual LED light system, it ensures crystal-clear visibility even in the most detailed procedures.

Ideal for general dentistry, endodontics, cosmetic dentistry, and surgical applications, this wireless system combines portability, power, and performance — making it a must-have tool for every modern clinic.
- Magnification Loupe: 3.5x
- Magnification Glass: 2.5x
- Light Intensity: 1,00,000 lux
- Battery Type: Wireless Rechargeable
- Battery Capacity: 2000mAh

Dual Magnification System: Switch easily between 3.5x Loupe and 2.5x Glass for versatile clinical use.
- Shadowless Illumination: Twin LED lights provide uniform, bright, and shadow-free lighting (1,00,000 lux).
- Wireless Operation: Lightweight and cordless for complete freedom of movement.
- Long Battery Life: 2000mAh lithium batteries ensure uninterrupted use during long procedures.
Comfortable Head Mount: Adjustable design for all-day comfort and stability.
- Yellow Filters Included: Helps in light-sensitive procedures like composite work.

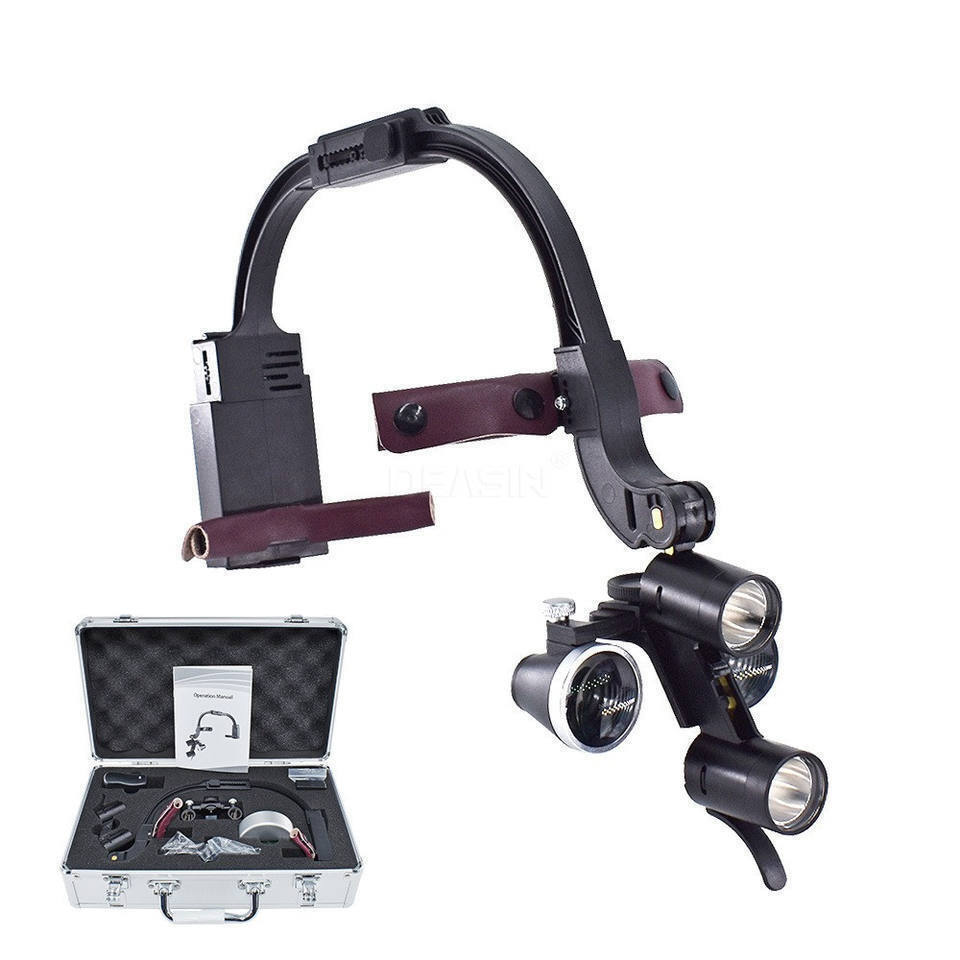

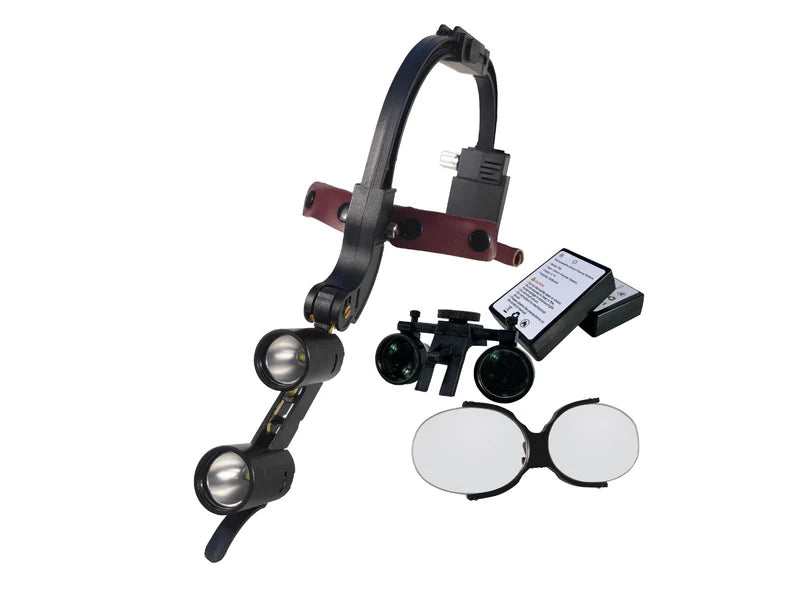

1× LED Head Mount
1× Lithium Battery (Wireless Type)
2× Battery Units
1× 3.5x Magnification Loupe
1× 2.5x Magnification Glass
1× Charger
2× Yellow Filters

1. Unpack the Kit:
Carefully remove all components from the box. Ensure all listed items are present.

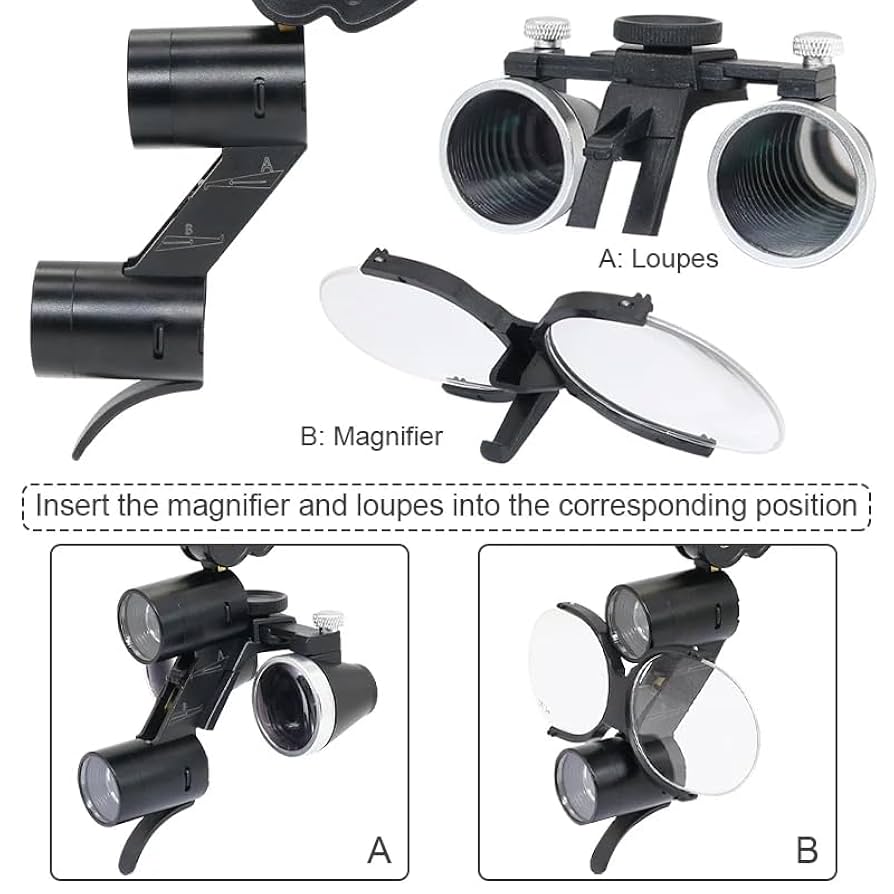

2. Assemble the Head Mount:
- Attach the loupe (2.5x) or magnification glass (1.5x) to the headband mount using the provided slots/clips.
- Secure the dual LED light units on each side of the headband.
3. Install the Battery:
- Insert the lithium battery into the battery slot on the head mount.
- Ensure it clicks into place and is fully charged before use.
4. Adjust the Fit:
- Place the head mount on your head.
- Use the adjustment straps or dials to secure a snug and comfortable fit.
5. Position the Loupe/Glass:
- Adjust the loupe or magnifying lens so that the field of view aligns properly with your line of sight.
- Ensure both eyes are comfortably aligned with the lens.
6. Turn On the Light:
- Press the power button on the LED unit or battery pack to turn on the light.
- Adjust brightness as needed.
7. Use the Yellow Filters (Optional):
-When the battery is low, remove and connect it to the charger.
8. Charging the Battery:
- When the battery is low, remove and connect it to the charger.
- Allow full charging before next use (charging time may vary based on battery level).
Care & Maintenance Tips:
- Clean the lenses with a soft microfiber cloth.
- Do not expose the device to water or sterilization.
- Store in a dry, safe place when not in use.
- Charge the battery regularly to maintain optimal performance.

6 Month Warranty
